采用铸造、选择性激光烧结、软密铣削等工艺制备的植入式钴铬棒的配合分析。

IF 2.5 3区 医学 Q1 DENTISTRY, ORAL SURGERY & MEDICINE
Journal of Advanced Prosthodontics Pub Date : 2025-08-01 Epub Date: 2025-08-19 DOI:10.4047/jap.2025.17.4.210
Elif Yiğit, Volkan Şahin
{"title":"采用铸造、选择性激光烧结、软密铣削等工艺制备的植入式钴铬棒的配合分析。","authors":"Elif Yiğit, Volkan Şahin","doi":"10.4047/jap.2025.17.4.210","DOIUrl":null,"url":null,"abstract":"<p><strong>Purpose: </strong>This <i>in vitro</i> study evaluated the fit of implant-supported bars fabricated using different computer-aided manufacturing (CAM) techniques.</p><p><strong>Materials and methods: </strong>A mandibular model with four dental implants (Nobel Replace Conical Connection, 3.5 mm × 11.5 mm) was fabricated using photoelastic resin. Sixteen Co-Cr implant-supported bars were produced using four CAM techniques: casting milled wax (CMW), selective laser sintering (SLS), dense milling (DM), and soft milling (SM) (n = 4). Fit was assessed through photoelastic stress analysis and digital scanning with a topographic digitizer (BreuckmannSmartScan). A standardized coordinate system was used for fit analysis. Data were analyzed using the Kruskal-Wallis test, with Dunn-Bonferroni for multiple comparisons (α = .05).</p><p><strong>Results: </strong>Photoelastic analysis showed that bars fabricated with DM exhibited the lowest stress levels, while SM showed moderate stress. Fit was significantly influenced by Δy-z, Δd<sub>in</sub>, and Δd<sub>out</sub> (<i>P</i> < .01), whereas Δhex and Δx-z had no significant effect (<i>P</i> > .05). The highest mean Δy-z value was observed in CMW (0.68 ± 0.28°) and the lowest in SLS (0.01 ± 0.34°). CMW had the highest Δd<sub>in</sub> (-160.44 ± 61.17 µm) and DM the lowest (-5.46 ± 11.80 µm). DM showed the highest Δd<sub>out</sub> (46.23 ± 39.32 µm), while SM had the lowest (-55.04 ± 35.06 µm), with significant differences among the techniques.</p><p><strong>Conclusion: </strong>In conclusion, full-arch implant supported Co-Cr bars fabricated using the different CAM techniques exhibited clinically acceptable passive fit.</p>","PeriodicalId":51291,"journal":{"name":"Journal of Advanced Prosthodontics","volume":"17 4","pages":"210-223"},"PeriodicalIF":2.5000,"publicationDate":"2025-08-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12411299/pdf/","citationCount":"0","resultStr":"{\"title\":\"Fit analysis of implant-supported Co-Cr bars fabricated using casting, selective laser sintering, soft and dense milling techniques.\",\"authors\":\"Elif Yiğit, Volkan Şahin\",\"doi\":\"10.4047/jap.2025.17.4.210\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Purpose: </strong>This <i>in vitro</i> study evaluated the fit of implant-supported bars fabricated using different computer-aided manufacturing (CAM) techniques.</p><p><strong>Materials and methods: </strong>A mandibular model with four dental implants (Nobel Replace Conical Connection, 3.5 mm × 11.5 mm) was fabricated using photoelastic resin. Sixteen Co-Cr implant-supported bars were produced using four CAM techniques: casting milled wax (CMW), selective laser sintering (SLS), dense milling (DM), and soft milling (SM) (n = 4). Fit was assessed through photoelastic stress analysis and digital scanning with a topographic digitizer (BreuckmannSmartScan). A standardized coordinate system was used for fit analysis. Data were analyzed using the Kruskal-Wallis test, with Dunn-Bonferroni for multiple comparisons (α = .05).</p><p><strong>Results: </strong>Photoelastic analysis showed that bars fabricated with DM exhibited the lowest stress levels, while SM showed moderate stress. Fit was significantly influenced by Δy-z, Δd<sub>in</sub>, and Δd<sub>out</sub> (<i>P</i> < .01), whereas Δhex and Δx-z had no significant effect (<i>P</i> > .05). The highest mean Δy-z value was observed in CMW (0.68 ± 0.28°) and the lowest in SLS (0.01 ± 0.34°). CMW had the highest Δd<sub>in</sub> (-160.44 ± 61.17 µm) and DM the lowest (-5.46 ± 11.80 µm). DM showed the highest Δd<sub>out</sub> (46.23 ± 39.32 µm), while SM had the lowest (-55.04 ± 35.06 µm), with significant differences among the techniques.</p><p><strong>Conclusion: </strong>In conclusion, full-arch implant supported Co-Cr bars fabricated using the different CAM techniques exhibited clinically acceptable passive fit.</p>\",\"PeriodicalId\":51291,\"journal\":{\"name\":\"Journal of Advanced Prosthodontics\",\"volume\":\"17 4\",\"pages\":\"210-223\"},\"PeriodicalIF\":2.5000,\"publicationDate\":\"2025-08-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12411299/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Advanced Prosthodontics\",\"FirstCategoryId\":\"3\",\"ListUrlMain\":\"https://doi.org/10.4047/jap.2025.17.4.210\",\"RegionNum\":3,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/8/19 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q1\",\"JCRName\":\"DENTISTRY, ORAL SURGERY & MEDICINE\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Advanced Prosthodontics","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.4047/jap.2025.17.4.210","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/8/19 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"DENTISTRY, ORAL SURGERY & MEDICINE","Score":null,"Total":0}
引用次数: 0

摘要

目的:本体外研究评估了采用不同计算机辅助制造(CAM)技术制作的种植体支撑棒的配合度。材料与方法:采用光弹性树脂制备四颗种植体(Nobel Replace Conical Connection, 3.5 mm × 11.5 mm)下颌模型。采用铸造铣削蜡(CMW)、选择性激光烧结(SLS)、密集铣削(DM)和软铣削(SM)四种CAM技术(n = 4)生产了16根Co-Cr植入物支撑棒。通过光弹性应力分析和地形数字化仪(BreuckmannSmartScan)的数字扫描来评估Fit。采用标准化坐标系进行拟合分析。数据分析采用Kruskal-Wallis检验,多重比较采用Dunn-Bonferroni (α = 0.05)。结果:光弹性分析表明,用DM制作的杆具有最低的应力水平,而SM则具有中等的应力水平。Δy-z、Δdin、Δdout对Fit有显著影响(P < 0.01),而Δhex、Δx-z对Fit无显著影响(P < 0.05)。平均Δy-z值CMW最高(0.68±0.28°),SLS最低(0.01±0.34°)。CMW最高Δdin(-160.44±61.17µm), DM最低(-5.46±11.80µm)。DM最高Δdout(46.23±39.32µm), SM最低(-55.04±35.06µm),技术间差异显著。结论:综上所述,采用不同CAM技术制作的全弓种植体支撑Co-Cr棒具有临床可接受的被动配合。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Fit analysis of implant-supported Co-Cr bars fabricated using casting, selective laser sintering, soft and dense milling techniques.

Fit analysis of implant-supported Co-Cr bars fabricated using casting, selective laser sintering, soft and dense milling techniques.

Fit analysis of implant-supported Co-Cr bars fabricated using casting, selective laser sintering, soft and dense milling techniques.

Fit analysis of implant-supported Co-Cr bars fabricated using casting, selective laser sintering, soft and dense milling techniques.

Purpose: This in vitro study evaluated the fit of implant-supported bars fabricated using different computer-aided manufacturing (CAM) techniques.

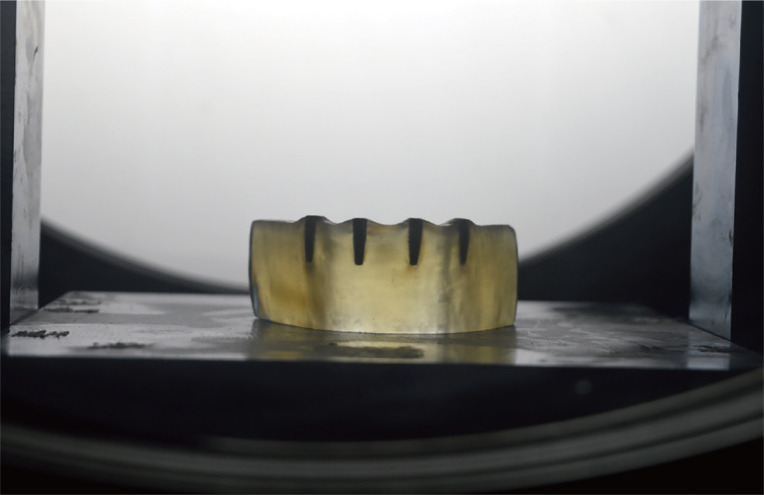

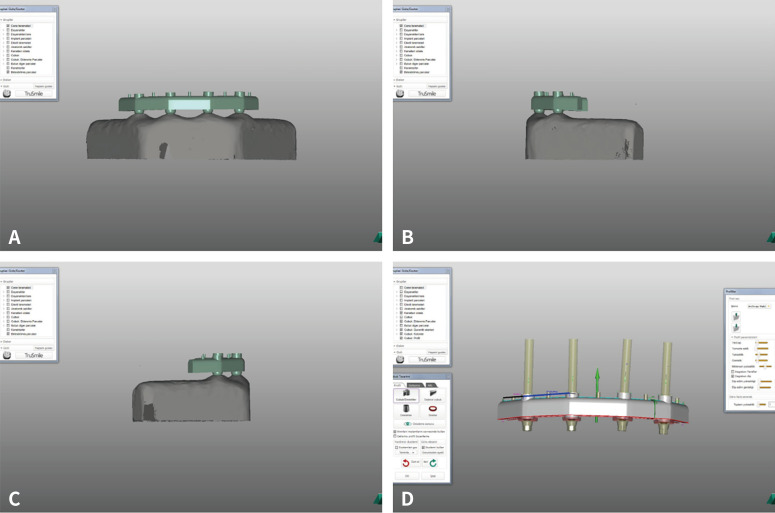

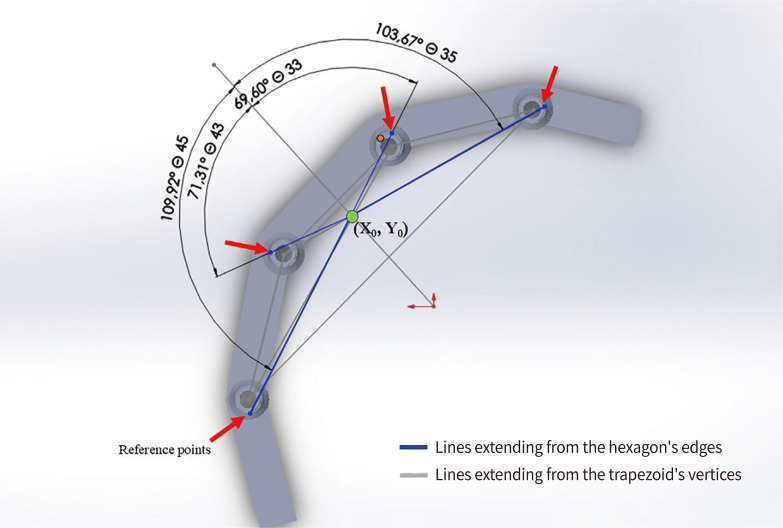

Materials and methods: A mandibular model with four dental implants (Nobel Replace Conical Connection, 3.5 mm × 11.5 mm) was fabricated using photoelastic resin. Sixteen Co-Cr implant-supported bars were produced using four CAM techniques: casting milled wax (CMW), selective laser sintering (SLS), dense milling (DM), and soft milling (SM) (n = 4). Fit was assessed through photoelastic stress analysis and digital scanning with a topographic digitizer (BreuckmannSmartScan). A standardized coordinate system was used for fit analysis. Data were analyzed using the Kruskal-Wallis test, with Dunn-Bonferroni for multiple comparisons (α = .05).

Results: Photoelastic analysis showed that bars fabricated with DM exhibited the lowest stress levels, while SM showed moderate stress. Fit was significantly influenced by Δy-z, Δdin, and Δdout (P < .01), whereas Δhex and Δx-z had no significant effect (P > .05). The highest mean Δy-z value was observed in CMW (0.68 ± 0.28°) and the lowest in SLS (0.01 ± 0.34°). CMW had the highest Δdin (-160.44 ± 61.17 µm) and DM the lowest (-5.46 ± 11.80 µm). DM showed the highest Δdout (46.23 ± 39.32 µm), while SM had the lowest (-55.04 ± 35.06 µm), with significant differences among the techniques.

Conclusion: In conclusion, full-arch implant supported Co-Cr bars fabricated using the different CAM techniques exhibited clinically acceptable passive fit.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Journal of Advanced Prosthodontics
Journal of Advanced Prosthodontics DENTISTRY, ORAL SURGERY & MEDICINE-
CiteScore
4.70
自引率
3.80%
发文量
25
期刊介绍: This journal aims to convey scientific and clinical progress in the field of prosthodontics and its related areas to many dental communities concerned with esthetic and functional restorations, occlusion, implants, prostheses, and biomaterials related to prosthodontics. This journal publishes • Original research data of high scientific merit in the field of diagnosis, function, esthetics and stomatognathic physiology related to prosthodontic rehabilitation, physiology and mechanics of occlusion, mechanical and biologic aspects of prosthodontic materials including dental implants. • Review articles by experts on controversies and new developments in prosthodontics. • Case reports if they provide or document new fundamental knowledge.
×
