A 0.5–5 Gb/s Wide Range, 160 fJ/Pulse Fully Integrated 13th-Order CMOS IR-UWB Transmitter for Wireless Capsule Endoscopy Systems

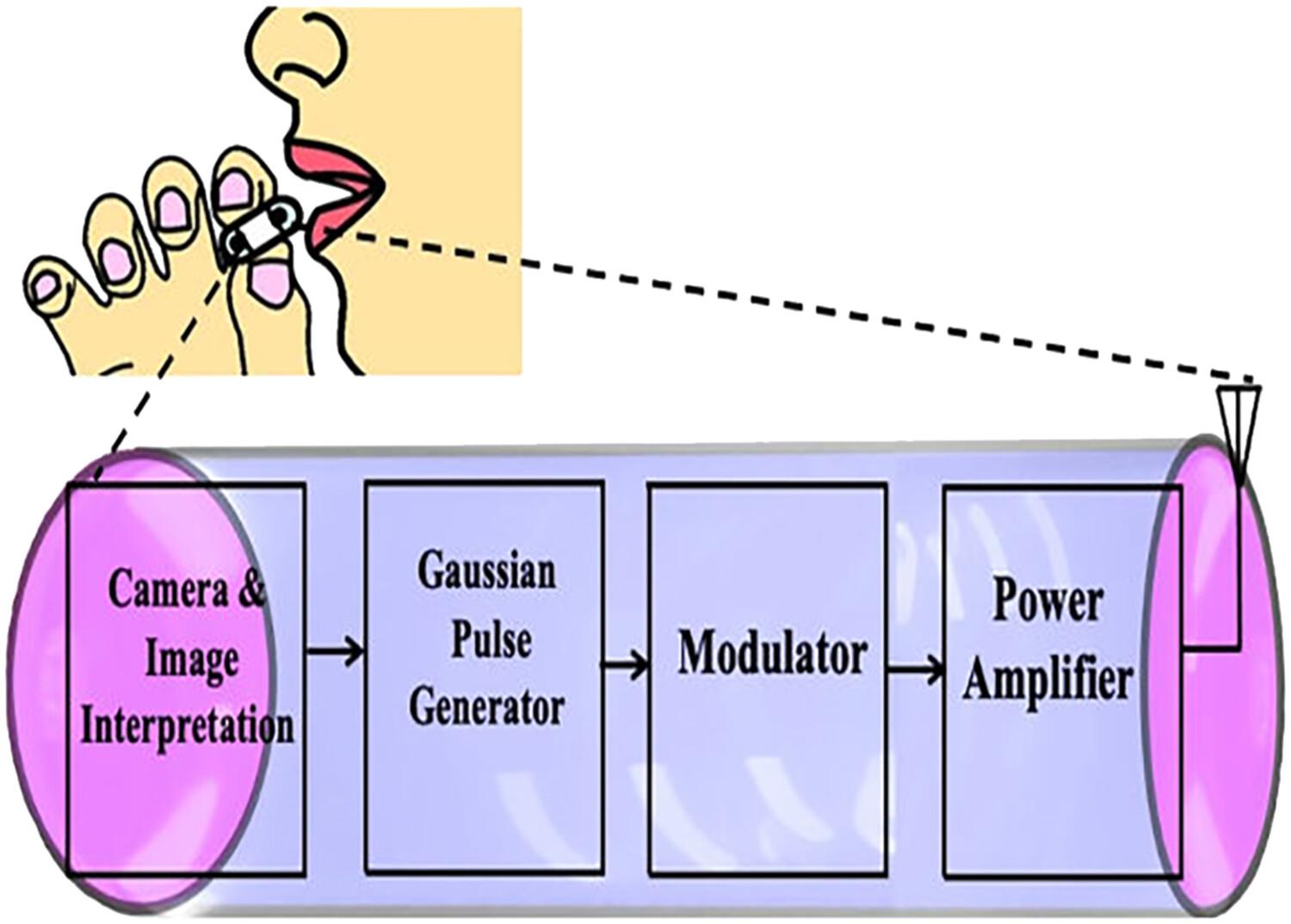

This paper proposes a novel technique based fully integrated 13th-order derivative CMOS impulse-radio ultrawideband (IR-UWB) transmitter with wide range of adaptive data rates for wireless capsule endoscopy systems (WCE). The proposed IR-UWB transmitter involves BPSK modulator-integrated RF power amplifier (PA) approach for WCE in first time as per author's best knowledge. The CMOS BPSK modulator with resonator technique generates 13th-order Modulated Gaussian pulse without the pulse generator. It has a peak-to-peak value of 25 mV and PSD level of −72.60 dBm/MHz, data rate variability from 500 Mbps to 5 Gbps. The BPSK modulator with resonator is designed by time constant analysis in first time. In addition, a proposed CMOS PA is designed using four stacked transistors, which achieves a high output power as well as high efficiency for entire frequency band of operation from 3 to 16 GHz and wide impedance matching. The PA achieved an excellent gain of 16.55 dB with gain ripple of 0.25 dB only. Moreover, the PA achieved the saturated output power of 18.2 to 19.3 dBm with OP1dB of 15.96 to 16.72 dBm across entire bandwidth. Without violating FCC guidelines, PA strengths both peak-to-peak values, and PSD level of BPSK modulated signal to 80 mV and −46.42 dBm/MHz. An IR-UWB transmitter has been implemented and fabricated using 65-nm CMOS Process, which consumes of only 160 fJ/pulse for generating Gaussian pulses order ranging from third-order to more than 13th-order at various data rates.
