Chandan Saha, Pooja Kumari, Mustafizur Hazarika, Ibrahim Waziri and Kaushik Mallick
{"title":"设计基于硫化铜纳米晶体的非酶葡萄糖传感器:电化学和场效应晶体管传感策略","authors":"Chandan Saha, Pooja Kumari, Mustafizur Hazarika, Ibrahim Waziri and Kaushik Mallick","doi":"10.1039/D5NJ02622A","DOIUrl":null,"url":null,"abstract":"<p >A polyaniline stabilized copper(<small>I</small>) sulfide (Cu<small><sub>2</sub></small>S) nanocrystal was synthesized using a two-step method and employed as a catalyst for glucose sensing in electrochemical and field-effect transistor-based platforms. Comprehensive structural and spectroscopic analysis confirmed the formation of phase-pure cubic Cu<small><sub>2</sub></small>S nanoparticles, uniformly distributed within the polyaniline matrix. The Cu<small><sub>2</sub></small>S-modified electrode demonstrated effective redox-mediated glucose oxidation in alkaline media, as validated through cyclic voltammetry, differential pulse voltammetry and chronoamperometry techniques. In a field-effect transistor configuration, based on an extended-gate approach, the Cu<small><sub>2</sub></small>S-modified device exhibited a sensitivity of 0.053 mA mM<small><sup>−1</sup></small> cm<small><sup>−2</sup></small>, with a detection limit of 0.16 mM and linearity across the glucose concentration range of 2–18 mM. The sensor displayed high selectivity against common interfering species, exhibited a minimal drift current (0.04 mA h<small><sup>−1</sup></small>) for 12 hours of continuous operation and demonstrated moderately good shelf-life stability during 8 weeks of storage under ambient conditions. The practical applicability of the Cu<small><sub>2</sub></small>S-modified transistor-based sensor was further demonstrated through real-sample analysis, which exhibited high accuracy and excellent repeatability, highlighting its potential for use in biomedical and clinical applications.</p>","PeriodicalId":95,"journal":{"name":"New Journal of Chemistry","volume":" 35","pages":" 15504-15516"},"PeriodicalIF":2.5000,"publicationDate":"2025-08-04","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2025/nj/d5nj02622a?page=search","citationCount":"0","resultStr":"{\"title\":\"Designing copper sulfide nanocrystal-based non-enzymatic glucose sensors: an electrochemical and field-effect transistor-based sensing strategy\",\"authors\":\"Chandan Saha, Pooja Kumari, Mustafizur Hazarika, Ibrahim Waziri and Kaushik Mallick\",\"doi\":\"10.1039/D5NJ02622A\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >A polyaniline stabilized copper(<small>I</small>) sulfide (Cu<small><sub>2</sub></small>S) nanocrystal was synthesized using a two-step method and employed as a catalyst for glucose sensing in electrochemical and field-effect transistor-based platforms. Comprehensive structural and spectroscopic analysis confirmed the formation of phase-pure cubic Cu<small><sub>2</sub></small>S nanoparticles, uniformly distributed within the polyaniline matrix. The Cu<small><sub>2</sub></small>S-modified electrode demonstrated effective redox-mediated glucose oxidation in alkaline media, as validated through cyclic voltammetry, differential pulse voltammetry and chronoamperometry techniques. In a field-effect transistor configuration, based on an extended-gate approach, the Cu<small><sub>2</sub></small>S-modified device exhibited a sensitivity of 0.053 mA mM<small><sup>−1</sup></small> cm<small><sup>−2</sup></small>, with a detection limit of 0.16 mM and linearity across the glucose concentration range of 2–18 mM. The sensor displayed high selectivity against common interfering species, exhibited a minimal drift current (0.04 mA h<small><sup>−1</sup></small>) for 12 hours of continuous operation and demonstrated moderately good shelf-life stability during 8 weeks of storage under ambient conditions. The practical applicability of the Cu<small><sub>2</sub></small>S-modified transistor-based sensor was further demonstrated through real-sample analysis, which exhibited high accuracy and excellent repeatability, highlighting its potential for use in biomedical and clinical applications.</p>\",\"PeriodicalId\":95,\"journal\":{\"name\":\"New Journal of Chemistry\",\"volume\":\" 35\",\"pages\":\" 15504-15516\"},\"PeriodicalIF\":2.5000,\"publicationDate\":\"2025-08-04\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.rsc.org/en/content/articlepdf/2025/nj/d5nj02622a?page=search\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"New Journal of Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/nj/d5nj02622a\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"New Journal of Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/nj/d5nj02622a","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
采用两步法合成了一种聚苯胺稳定的硫化铜(Cu2S)纳米晶体,并将其用作电化学和场效应晶体管平台上葡萄糖传感的催化剂。综合结构和光谱分析证实形成了相纯立方Cu2S纳米颗粒,均匀分布在聚苯胺基体内。通过循环伏安法、差分脉冲伏安法和计时伏安法技术验证了cu2s修饰电极在碱性介质中有效的氧化还原介导的葡萄糖氧化。在场效应晶体管结构中,基于扩展栅极方法,cu2s修饰器件的灵敏度为0.053 mA mM−1 cm−2,检测限为0.16 mM,线性范围为2 - 18 mM。该传感器对常见干扰物质具有高选择性。在12小时的连续工作中,表现出最小的漂移电流(0.04 mA h−1),并在环境条件下保存8周,表现出中等好的保质期稳定性。通过对实际样品的分析,进一步证明了cu2s改性晶体管传感器的实用性,该传感器具有较高的精度和良好的可重复性,突出了其在生物医学和临床应用中的潜力。
Designing copper sulfide nanocrystal-based non-enzymatic glucose sensors: an electrochemical and field-effect transistor-based sensing strategy

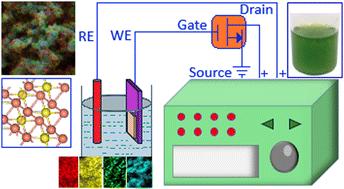

A polyaniline stabilized copper(I) sulfide (Cu2S) nanocrystal was synthesized using a two-step method and employed as a catalyst for glucose sensing in electrochemical and field-effect transistor-based platforms. Comprehensive structural and spectroscopic analysis confirmed the formation of phase-pure cubic Cu2S nanoparticles, uniformly distributed within the polyaniline matrix. The Cu2S-modified electrode demonstrated effective redox-mediated glucose oxidation in alkaline media, as validated through cyclic voltammetry, differential pulse voltammetry and chronoamperometry techniques. In a field-effect transistor configuration, based on an extended-gate approach, the Cu2S-modified device exhibited a sensitivity of 0.053 mA mM−1 cm−2, with a detection limit of 0.16 mM and linearity across the glucose concentration range of 2–18 mM. The sensor displayed high selectivity against common interfering species, exhibited a minimal drift current (0.04 mA h−1) for 12 hours of continuous operation and demonstrated moderately good shelf-life stability during 8 weeks of storage under ambient conditions. The practical applicability of the Cu2S-modified transistor-based sensor was further demonstrated through real-sample analysis, which exhibited high accuracy and excellent repeatability, highlighting its potential for use in biomedical and clinical applications.
