垂直振动下薄膜中马兰戈尼对流的线性稳定性

IF 1.3 4区 工程技术 Q2 ENGINEERING, AEROSPACE
Ivan Volodin, Alexey Alabuzhev
{"title":"垂直振动下薄膜中马兰戈尼对流的线性稳定性","authors":"Ivan Volodin,&nbsp;Alexey Alabuzhev","doi":"10.1007/s12217-025-10201-8","DOIUrl":null,"url":null,"abstract":"<div><p>We investigate the linear stability of an incompressible, viscous liquid thin film placed on a solid substrate subjected to vertical harmonic vibrations in the presence of gravity and a negative temperature gradient. The substrate oscillates with a finite frequency, compared to the viscous time and large amplitude, compared to the film thickness. By separating the governing equations into oscillatory (fast) and time-averaged (slow) components, we obtain an analytical solution for the oscillatory fields and represent their velocity structure through isolines of stream function. Averaging over the fast time scale yields a set of amplitude equations that describe the slow evolution of the free deformable surface. The stability analysis reveals that gravity and surface tension stabilise the interface, while van der Waals attraction and the imposed thermal gradient destabilise. Vertical vibrations may stabilise the surface: at low frequencies even large amplitudes fail to suppress the long-wave instability for moderate and high Marangoni numbers, whereas at moderate to high frequencies sufficiently strong vibrations stabilise the film across the entire wavenumber spectrum. For a huge values of Marangoni number small vibrations are ineffective, but when Marangoni number is small complete stabilisation is achieved at moderate frequencies for all amplitudes considered. Results obtained in limiting cases are consistent with the previous studies for isothermal and non-vibrated cases.</p></div>","PeriodicalId":707,"journal":{"name":"Microgravity Science and Technology","volume":"37 5","pages":""},"PeriodicalIF":1.3000,"publicationDate":"2025-09-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Linear Stability of Marangoni Convection in a Thin Film under Vertical Vibrations\",\"authors\":\"Ivan Volodin,&nbsp;Alexey Alabuzhev\",\"doi\":\"10.1007/s12217-025-10201-8\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>We investigate the linear stability of an incompressible, viscous liquid thin film placed on a solid substrate subjected to vertical harmonic vibrations in the presence of gravity and a negative temperature gradient. The substrate oscillates with a finite frequency, compared to the viscous time and large amplitude, compared to the film thickness. By separating the governing equations into oscillatory (fast) and time-averaged (slow) components, we obtain an analytical solution for the oscillatory fields and represent their velocity structure through isolines of stream function. Averaging over the fast time scale yields a set of amplitude equations that describe the slow evolution of the free deformable surface. The stability analysis reveals that gravity and surface tension stabilise the interface, while van der Waals attraction and the imposed thermal gradient destabilise. Vertical vibrations may stabilise the surface: at low frequencies even large amplitudes fail to suppress the long-wave instability for moderate and high Marangoni numbers, whereas at moderate to high frequencies sufficiently strong vibrations stabilise the film across the entire wavenumber spectrum. For a huge values of Marangoni number small vibrations are ineffective, but when Marangoni number is small complete stabilisation is achieved at moderate frequencies for all amplitudes considered. Results obtained in limiting cases are consistent with the previous studies for isothermal and non-vibrated cases.</p></div>\",\"PeriodicalId\":707,\"journal\":{\"name\":\"Microgravity Science and Technology\",\"volume\":\"37 5\",\"pages\":\"\"},\"PeriodicalIF\":1.3000,\"publicationDate\":\"2025-09-08\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Microgravity Science and Technology\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://link.springer.com/article/10.1007/s12217-025-10201-8\",\"RegionNum\":4,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ENGINEERING, AEROSPACE\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Microgravity Science and Technology","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1007/s12217-025-10201-8","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, AEROSPACE","Score":null,"Total":0}
引用次数: 0

摘要

我们研究了在重力和负温度梯度下放置在固体基片上的不可压缩粘性液体薄膜在垂直谐波振动下的线性稳定性。基片振荡的频率有限,相对于粘滞时间和振幅大,相对于薄膜厚度。通过将控制方程分解为振荡(快)分量和时均(慢)分量,我们得到了振荡场的解析解,并通过流函数等值线表示了它们的速度结构。在快速时间尺度上进行平均,可以得到一组描述自由变形表面缓慢演化的振幅方程。稳定性分析表明,重力和表面张力使界面稳定,而范德华引力和施加的热梯度使界面不稳定。垂直振动可以稳定表面:在低频时,即使大振幅也无法抑制中高马兰戈尼数的长波不稳定性,而在中高频率时,足够强的振动可以稳定整个波数谱的薄膜。当马兰戈尼数很大时,小振动是无效的,但当马兰戈尼数很小时,在考虑的所有振幅的中频下都实现了完全稳定。在极限情况下得到的结果与以前在等温和非振动情况下的研究结果一致。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Linear Stability of Marangoni Convection in a Thin Film under Vertical Vibrations

Linear Stability of Marangoni Convection in a Thin Film under Vertical Vibrations

Linear Stability of Marangoni Convection in a Thin Film under Vertical Vibrations

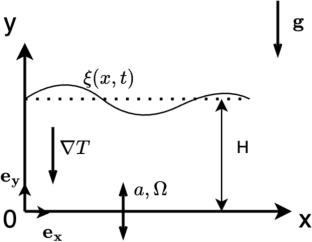

We investigate the linear stability of an incompressible, viscous liquid thin film placed on a solid substrate subjected to vertical harmonic vibrations in the presence of gravity and a negative temperature gradient. The substrate oscillates with a finite frequency, compared to the viscous time and large amplitude, compared to the film thickness. By separating the governing equations into oscillatory (fast) and time-averaged (slow) components, we obtain an analytical solution for the oscillatory fields and represent their velocity structure through isolines of stream function. Averaging over the fast time scale yields a set of amplitude equations that describe the slow evolution of the free deformable surface. The stability analysis reveals that gravity and surface tension stabilise the interface, while van der Waals attraction and the imposed thermal gradient destabilise. Vertical vibrations may stabilise the surface: at low frequencies even large amplitudes fail to suppress the long-wave instability for moderate and high Marangoni numbers, whereas at moderate to high frequencies sufficiently strong vibrations stabilise the film across the entire wavenumber spectrum. For a huge values of Marangoni number small vibrations are ineffective, but when Marangoni number is small complete stabilisation is achieved at moderate frequencies for all amplitudes considered. Results obtained in limiting cases are consistent with the previous studies for isothermal and non-vibrated cases.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Microgravity Science and Technology
Microgravity Science and Technology 工程技术-工程:宇航
CiteScore
3.50
自引率
44.40%
发文量
96
期刊介绍: Microgravity Science and Technology – An International Journal for Microgravity and Space Exploration Related Research is a is a peer-reviewed scientific journal concerned with all topics, experimental as well as theoretical, related to research carried out under conditions of altered gravity. Microgravity Science and Technology publishes papers dealing with studies performed on and prepared for platforms that provide real microgravity conditions (such as drop towers, parabolic flights, sounding rockets, reentry capsules and orbiting platforms), and on ground-based facilities aiming to simulate microgravity conditions on earth (such as levitrons, clinostats, random positioning machines, bed rest facilities, and micro-scale or neutral buoyancy facilities) or providing artificial gravity conditions (such as centrifuges). Data from preparatory tests, hardware and instrumentation developments, lessons learnt as well as theoretical gravity-related considerations are welcome. Included science disciplines with gravity-related topics are: − materials science − fluid mechanics − process engineering − physics − chemistry − heat and mass transfer − gravitational biology − radiation biology − exobiology and astrobiology − human physiology
×
