支链交联聚芳基胡椒鎓阴离子交换膜的合成及性能研究

IF 2.6 4区 材料科学 Q3 MATERIALS SCIENCE, MULTIDISCIPLINARY
Yuanyuan Zhou, Qingyang Xiao, Wenjie Li, Song Li, Shuchun Yu, Pengyan Guo
{"title":"支链交联聚芳基胡椒鎓阴离子交换膜的合成及性能研究","authors":"Yuanyuan Zhou,&nbsp;Qingyang Xiao,&nbsp;Wenjie Li,&nbsp;Song Li,&nbsp;Shuchun Yu,&nbsp;Pengyan Guo","doi":"10.1007/s13391-025-00590-8","DOIUrl":null,"url":null,"abstract":"<div><p>As a promising sustainable energy conversion technology, anion exchange membrane fuel cells (AEMFCs) have attracted substantial research attention due to their eco-friendly characteristics, cost advantages, and potential for high efficiency. The advancement of these systems, however, remains fundamentally limited by the challenge of optimizing the critical trade-off between ionic conductivity and dimensional stability in anion exchange membranes (AEMs). This investigation proposes a novel membrane architecture combining ether-free polymer matrices with piperidinium cationic moieties to address chemical durability concerns. A series of cross-linked poly(p-triphenylpyridine) membranes were successfully fabricated through optimized Friedel-Crafts alkylation processes, incorporating pyridine-derived branching structures alongside conventional quaternary ammonium cross-linkers. The optimized QAPTTP-40% membrane exhibits outstanding electrochemical properties, achieving temperature-enhanced ionic conductivity of 116.2 mS cm⁻¹ at 80 °C through cooperative effects of branched morphology and cross-linked framework. Extended alkaline stability testing (15 days in 2 M NaOH at 80 °C) revealed exceptional chemical resilience with 85.1% conductivity retention. Structural characterization demonstrated advantageous material properties including an elevated ion exchange capacity of 2.94 mmol g⁻¹ coupled with robust mechanical strength (39.4 MPa tensile strength at ambient conditions). The synergistic combination of efficient ion transport pathways, superior alkaline durability, and mechanical robustness establishes this innovative AEM design as a competitive platform for next-generation fuel cell development. These findings provide critical insights into the rational design of high-performance anion exchange membranes through molecular engineering of polymer architectures and cationic group selection.</p></div>","PeriodicalId":536,"journal":{"name":"Electronic Materials Letters","volume":"21 5","pages":"726 - 741"},"PeriodicalIF":2.6000,"publicationDate":"2025-08-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Synthesis and Properties of Branched-Crosslinked Poly(aryl piperidinium) Anion Exchange Membranes\",\"authors\":\"Yuanyuan Zhou,&nbsp;Qingyang Xiao,&nbsp;Wenjie Li,&nbsp;Song Li,&nbsp;Shuchun Yu,&nbsp;Pengyan Guo\",\"doi\":\"10.1007/s13391-025-00590-8\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>As a promising sustainable energy conversion technology, anion exchange membrane fuel cells (AEMFCs) have attracted substantial research attention due to their eco-friendly characteristics, cost advantages, and potential for high efficiency. The advancement of these systems, however, remains fundamentally limited by the challenge of optimizing the critical trade-off between ionic conductivity and dimensional stability in anion exchange membranes (AEMs). This investigation proposes a novel membrane architecture combining ether-free polymer matrices with piperidinium cationic moieties to address chemical durability concerns. A series of cross-linked poly(p-triphenylpyridine) membranes were successfully fabricated through optimized Friedel-Crafts alkylation processes, incorporating pyridine-derived branching structures alongside conventional quaternary ammonium cross-linkers. The optimized QAPTTP-40% membrane exhibits outstanding electrochemical properties, achieving temperature-enhanced ionic conductivity of 116.2 mS cm⁻¹ at 80 °C through cooperative effects of branched morphology and cross-linked framework. Extended alkaline stability testing (15 days in 2 M NaOH at 80 °C) revealed exceptional chemical resilience with 85.1% conductivity retention. Structural characterization demonstrated advantageous material properties including an elevated ion exchange capacity of 2.94 mmol g⁻¹ coupled with robust mechanical strength (39.4 MPa tensile strength at ambient conditions). The synergistic combination of efficient ion transport pathways, superior alkaline durability, and mechanical robustness establishes this innovative AEM design as a competitive platform for next-generation fuel cell development. These findings provide critical insights into the rational design of high-performance anion exchange membranes through molecular engineering of polymer architectures and cationic group selection.</p></div>\",\"PeriodicalId\":536,\"journal\":{\"name\":\"Electronic Materials Letters\",\"volume\":\"21 5\",\"pages\":\"726 - 741\"},\"PeriodicalIF\":2.6000,\"publicationDate\":\"2025-08-22\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Electronic Materials Letters\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://link.springer.com/article/10.1007/s13391-025-00590-8\",\"RegionNum\":4,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q3\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Electronic Materials Letters","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s13391-025-00590-8","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

阴离子交换膜燃料电池(aemfc)作为一种很有前途的可持续能源转换技术,以其生态友好、成本优势和高效潜力而备受关注。然而,这些系统的进步仍然受到优化阴离子交换膜(AEMs)中离子电导率和尺寸稳定性之间关键权衡的挑战的限制。本研究提出了一种新的膜结构,结合无醚聚合物基质和哌啶阳离子基团,以解决化学耐久性问题。通过优化的Friedel-Crafts烷基化工艺成功制备了一系列交联聚对三苯基吡啶膜,并将吡啶衍生的分支结构与传统的季铵交联剂结合。优化后的QAPTTP-40%膜具有优异的电化学性能,通过支链形态和交联框架的协同作用,在80℃时离子电导率达到116.2 mS cm⁻¹。延长碱性稳定性测试(在80°C的2 M NaOH中浸泡15天)显示出优异的化学弹性,电导率保持在85.1%。结构表征证明了材料的优点,包括2.94 mmol g的离子交换容量(毒血症)和坚固的机械强度(环境条件下的抗拉强度为39.4 MPa)。高效离子传输途径、优异的碱性耐久性和机械坚固性的协同结合,使这种创新的AEM设计成为下一代燃料电池开发的竞争平台。这些发现为通过聚合物结构的分子工程和阳离子基选择来合理设计高性能阴离子交换膜提供了重要的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Synthesis and Properties of Branched-Crosslinked Poly(aryl piperidinium) Anion Exchange Membranes

Synthesis and Properties of Branched-Crosslinked Poly(aryl piperidinium) Anion Exchange Membranes

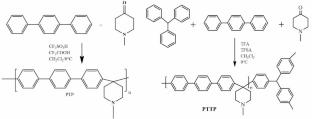

As a promising sustainable energy conversion technology, anion exchange membrane fuel cells (AEMFCs) have attracted substantial research attention due to their eco-friendly characteristics, cost advantages, and potential for high efficiency. The advancement of these systems, however, remains fundamentally limited by the challenge of optimizing the critical trade-off between ionic conductivity and dimensional stability in anion exchange membranes (AEMs). This investigation proposes a novel membrane architecture combining ether-free polymer matrices with piperidinium cationic moieties to address chemical durability concerns. A series of cross-linked poly(p-triphenylpyridine) membranes were successfully fabricated through optimized Friedel-Crafts alkylation processes, incorporating pyridine-derived branching structures alongside conventional quaternary ammonium cross-linkers. The optimized QAPTTP-40% membrane exhibits outstanding electrochemical properties, achieving temperature-enhanced ionic conductivity of 116.2 mS cm⁻¹ at 80 °C through cooperative effects of branched morphology and cross-linked framework. Extended alkaline stability testing (15 days in 2 M NaOH at 80 °C) revealed exceptional chemical resilience with 85.1% conductivity retention. Structural characterization demonstrated advantageous material properties including an elevated ion exchange capacity of 2.94 mmol g⁻¹ coupled with robust mechanical strength (39.4 MPa tensile strength at ambient conditions). The synergistic combination of efficient ion transport pathways, superior alkaline durability, and mechanical robustness establishes this innovative AEM design as a competitive platform for next-generation fuel cell development. These findings provide critical insights into the rational design of high-performance anion exchange membranes through molecular engineering of polymer architectures and cationic group selection.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Electronic Materials Letters
Electronic Materials Letters 工程技术-材料科学:综合
CiteScore
4.70
自引率
20.80%
发文量
52
审稿时长
2.3 months
期刊介绍: Electronic Materials Letters is an official journal of the Korean Institute of Metals and Materials. It is a peer-reviewed international journal publishing print and online version. It covers all disciplines of research and technology in electronic materials. Emphasis is placed on science, engineering and applications of advanced materials, including electronic, magnetic, optical, organic, electrochemical, mechanical, and nanoscale materials. The aspects of synthesis and processing include thin films, nanostructures, self assembly, and bulk, all related to thermodynamics, kinetics and/or modeling.
×
