Gunay Rona, Neriman Fistikcioglu, Tekin Ahmet Serel, Meral Arifoglu, Mehmet Bilgin Eser, Serhat Ozcelik, Kadriye Aydin
{"title":"基于机器学习的t2加权MRI放射组学在多囊卵巢综合征诊断中的预测价值。","authors":"Gunay Rona, Neriman Fistikcioglu, Tekin Ahmet Serel, Meral Arifoglu, Mehmet Bilgin Eser, Serhat Ozcelik, Kadriye Aydin","doi":"10.14744/nci.2024.34033","DOIUrl":null,"url":null,"abstract":"<p><strong>Objective: </strong>This study aims to explore the predictive performance of machine learning-based radiomic features extracted from T2-weighted magnetic resonance imaging (MRI) in differentiating between women with polycystic ovary syndrome (PCOS) and healthy counterparts.</p><p><strong>Methods: </strong>The study included patients diagnosed with PCOS who had undergone pelvic MRI in the endocrine department between 2014 and 2022, along with an age-matched control group. The ovaries were manually segmented from T2-weighted images using the 3D Slicer software. Both first- and second-order features, including wavelet filters, were extracted from the images. Utilizing the Python 2.3 programming language and the Pycaret library, various machine learning algorithms were employed to identify highly correlated features. The optimal model was selected from the 15 algorithms assessed.</p><p><strong>Results: </strong>The study involved a total of 202 ovaries from 101 patients with PCOS (mean age 23±4 years) and 78 ovaries from the control group comprising 40 individuals (mean age 24±5 years). In the training set, the machine learning models displayed accuracy and area under the curve (AUC) values ranging from 72% to 83% and 0.50 to 0.81%, respectively. Notably, the Light Gradient Boosting Machine (LightGBM) model emerged as the most effective model among the various machine learning algorithms, exhibiting an AUC of 0.81 and an accuracy of 83%. When evaluated on the test set, the AUC, accuracy, recall, precision and F1 values of the LightGBM model were 0.80, 82%, 91%, 86%, 88%, respectively.</p><p><strong>Conclusion: </strong>Machine learning-based T2-weighted MRI radiomics seems viable in differentiating between individuals with and without PCOS.</p>","PeriodicalId":94347,"journal":{"name":"Northern clinics of Istanbul","volume":"12 1","pages":"69-75"},"PeriodicalIF":0.9000,"publicationDate":"2025-01-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12364468/pdf/","citationCount":"0","resultStr":"{\"title\":\"Predictive value of machine learning-based T2-weighted MRI radiomics in the diagnosis of polycystic ovary syndrome.\",\"authors\":\"Gunay Rona, Neriman Fistikcioglu, Tekin Ahmet Serel, Meral Arifoglu, Mehmet Bilgin Eser, Serhat Ozcelik, Kadriye Aydin\",\"doi\":\"10.14744/nci.2024.34033\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Objective: </strong>This study aims to explore the predictive performance of machine learning-based radiomic features extracted from T2-weighted magnetic resonance imaging (MRI) in differentiating between women with polycystic ovary syndrome (PCOS) and healthy counterparts.</p><p><strong>Methods: </strong>The study included patients diagnosed with PCOS who had undergone pelvic MRI in the endocrine department between 2014 and 2022, along with an age-matched control group. The ovaries were manually segmented from T2-weighted images using the 3D Slicer software. Both first- and second-order features, including wavelet filters, were extracted from the images. Utilizing the Python 2.3 programming language and the Pycaret library, various machine learning algorithms were employed to identify highly correlated features. The optimal model was selected from the 15 algorithms assessed.</p><p><strong>Results: </strong>The study involved a total of 202 ovaries from 101 patients with PCOS (mean age 23±4 years) and 78 ovaries from the control group comprising 40 individuals (mean age 24±5 years). In the training set, the machine learning models displayed accuracy and area under the curve (AUC) values ranging from 72% to 83% and 0.50 to 0.81%, respectively. Notably, the Light Gradient Boosting Machine (LightGBM) model emerged as the most effective model among the various machine learning algorithms, exhibiting an AUC of 0.81 and an accuracy of 83%. When evaluated on the test set, the AUC, accuracy, recall, precision and F1 values of the LightGBM model were 0.80, 82%, 91%, 86%, 88%, respectively.</p><p><strong>Conclusion: </strong>Machine learning-based T2-weighted MRI radiomics seems viable in differentiating between individuals with and without PCOS.</p>\",\"PeriodicalId\":94347,\"journal\":{\"name\":\"Northern clinics of Istanbul\",\"volume\":\"12 1\",\"pages\":\"69-75\"},\"PeriodicalIF\":0.9000,\"publicationDate\":\"2025-01-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12364468/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Northern clinics of Istanbul\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.14744/nci.2024.34033\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/1/1 0:00:00\",\"PubModel\":\"eCollection\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Northern clinics of Istanbul","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.14744/nci.2024.34033","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/1/1 0:00:00","PubModel":"eCollection","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0
摘要
目的:本研究旨在探讨基于机器学习的t2加权磁共振成像(MRI)放射学特征在多囊卵巢综合征(PCOS)女性与健康女性鉴别中的预测性能。方法:研究纳入2014年至2022年间在内分泌科接受盆腔MRI诊断为PCOS的患者,以及年龄匹配的对照组。使用3D Slicer软件从t2加权图像中手动分割卵巢。从图像中提取一阶和二阶特征,包括小波滤波器。利用Python 2.3编程语言和Pycaret库,采用各种机器学习算法来识别高度相关的特征。从评估的15种算法中选择最优模型。结果:本研究共纳入101例PCOS患者(平均年龄23±4岁)的202个卵巢和40例对照组(平均年龄24±5岁)的78个卵巢。在训练集中,机器学习模型的准确率和曲线下面积(area under the curve, AUC)值分别为72% ~ 83%和0.50 ~ 0.81%。值得注意的是,光梯度增强机(Light Gradient Boosting Machine, LightGBM)模型是各种机器学习算法中最有效的模型,AUC为0.81,准确率为83%。在测试集上评估时,LightGBM模型的AUC、准确率、召回率、精密度和F1值分别为0.80、82%、91%、86%、88%。结论:基于机器学习的t2加权MRI放射组学似乎可以区分PCOS患者和非PCOS患者。
Predictive value of machine learning-based T2-weighted MRI radiomics in the diagnosis of polycystic ovary syndrome.
Objective: This study aims to explore the predictive performance of machine learning-based radiomic features extracted from T2-weighted magnetic resonance imaging (MRI) in differentiating between women with polycystic ovary syndrome (PCOS) and healthy counterparts.

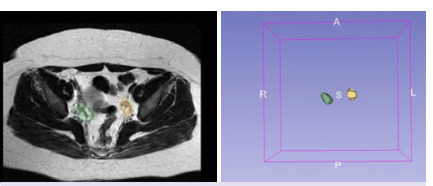

Methods: The study included patients diagnosed with PCOS who had undergone pelvic MRI in the endocrine department between 2014 and 2022, along with an age-matched control group. The ovaries were manually segmented from T2-weighted images using the 3D Slicer software. Both first- and second-order features, including wavelet filters, were extracted from the images. Utilizing the Python 2.3 programming language and the Pycaret library, various machine learning algorithms were employed to identify highly correlated features. The optimal model was selected from the 15 algorithms assessed.

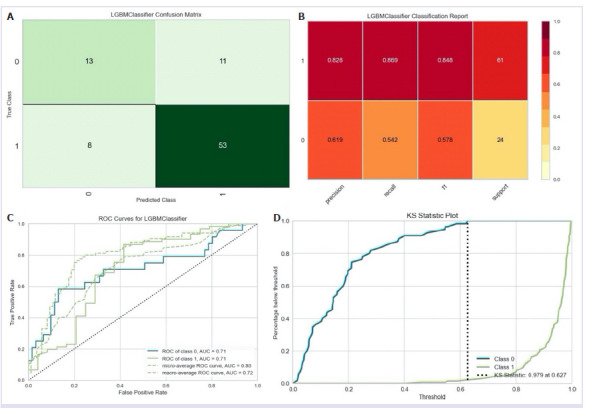

Results: The study involved a total of 202 ovaries from 101 patients with PCOS (mean age 23±4 years) and 78 ovaries from the control group comprising 40 individuals (mean age 24±5 years). In the training set, the machine learning models displayed accuracy and area under the curve (AUC) values ranging from 72% to 83% and 0.50 to 0.81%, respectively. Notably, the Light Gradient Boosting Machine (LightGBM) model emerged as the most effective model among the various machine learning algorithms, exhibiting an AUC of 0.81 and an accuracy of 83%. When evaluated on the test set, the AUC, accuracy, recall, precision and F1 values of the LightGBM model were 0.80, 82%, 91%, 86%, 88%, respectively.
Conclusion: Machine learning-based T2-weighted MRI radiomics seems viable in differentiating between individuals with and without PCOS.
