Round Window Niche and Membrane Dimensions: A Systematic Review.

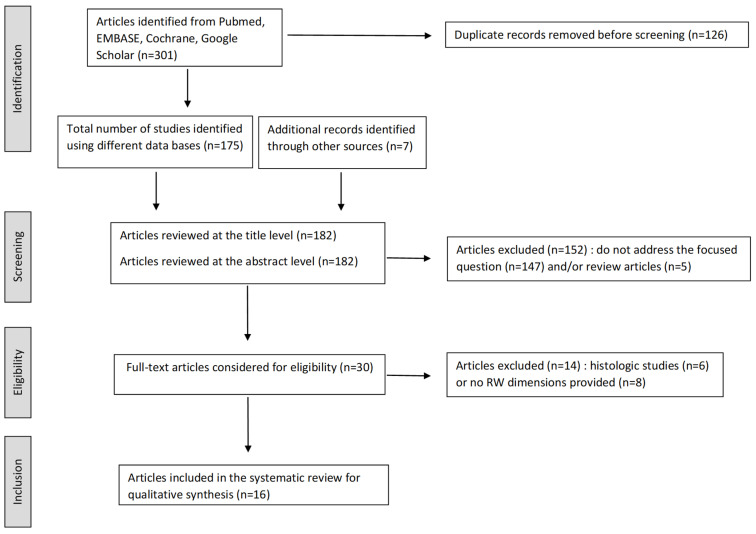

Background/Objectives: To review the dimensions of the round window region (round window niche, bony structures surrounding the niche, and the membrane itself). Methods: Medline, EMBASE, Cochrane Library, and Google Scholar databases were searched by two independent reviewers. Anatomical and radiological studies on the round window region were screened. Studies reporting at least one dimension for the round window (RW) niche and/or the RW membrane were included. Results: Sixteen studies met the inclusion criteria (13 anatomical and 3 radiological studies) for a total number of 808 temporal bones with at least one dimension reported. The structures measured varied across the different studies with 12 reporting RW membrane dimensions (area and/or at least one distance), 8 detailing RW niche dimensions (height, width or depth) and 6 which measured at least one element of the RW bony overhangs (posterior or anterior pillar, RW tegmen). Surface area of the RW membrane varied between 0.32 mm² and 2.89 mm², with a minimum dimension (minimum diameter or height or width) comprising between 0.51 mm and 2.1 mm. When the bony overhangs surrounding the membrane were not considered, the minimum diameter was between 1.65 mm and 1.97 mm. Conclusions: The dimensions of the RW region are intrinsically variable, but the heterogeneity of the measurements reported also contributes to these variations. Posterior pillar, RW tegmen, anterior pillar, and their relative development probably account for a large part of this variability. The future RW membrane devices should be ≤1 mm in their maximum dimension, whether or not individually tailored, to fit most of the RW membranes.
