EPIgray®软件在头颈部VMAT治疗中基于epid的体内剂量测定的有效性

IF 1.5 4区 医学 Q2 MEDICINE, GENERAL & INTERNAL
Ghassan Al-Murshedi, Yasmin Md Radzi, Noor Naslinda Noor Rizan, Azhar Abdul Rahman
{"title":"EPIgray®软件在头颈部VMAT治疗中基于epid的体内剂量测定的有效性","authors":"Ghassan Al-Murshedi, Yasmin Md Radzi, Noor Naslinda Noor Rizan, Azhar Abdul Rahman","doi":"10.15537/smj.2025.46.8.20240844","DOIUrl":null,"url":null,"abstract":"<p><strong>Objectives: </strong>To evaluate the effectiveness of in-vivo dosimetry (IVD) utilizing an electronic portal imaging device (EPID) in conjunction with EPIgray<sup>®</sup> software (DOSIsoft, Cachan, France) for assessing the accuracy of dose delivery for the patient when undertaking head and neck (H&N) treatments.</p><p><strong>Methods: </strong>Using cross-sectional analysis, data were collected from the linear accelerator of twenty patients undergoing (H&N) radiotherapy treatments using the Volumetric Modulated Arc Therapy (VMAT) modality from June 2019 to October 2023 at Gleneagles Hospital Penang, Penang, Malaysia. EPIgray<sup>®</sup> software reconstructed the delivered dose based on EPID images. These reconstructed doses were compared with the planned doses to evaluate dose accuracy, specifically looking at how many patient doses fell within the set tolerance range. In addition, RTsafe PseudoPatient™ phantom was involved in this study, and the reconstructed dose with EPIgray<sup>®</sup> was compared with the delivered dose and was established as a benchmark for accuracy.</p><p><strong>Results: </strong>The percentage difference between the reconstructed doses and planned doses (ΔD%) for patients ranged from (1.96) to (-11.1), and the results showed that 60% of the patients' doses were within the tolerance range (±5%). The phantom study resulted in a percentage dose difference (ΔD%) of -1.73%, and this was established as a benchmark for accuracy.</p><p><strong>Conclusion: </strong>The study proves that using EPID-based in-vivo dosimetry with EPIgray<sup>®</sup> software is a precise way to check that the right amount of radiation is being delivered for patients during radiotherapy to head and neck (H&N) treatments. Integrating EPIgray<sup>®</sup> into clinical practice enhances dose accuracy and patient safety.</p>","PeriodicalId":21453,"journal":{"name":"Saudi Medical Journal","volume":"46 8","pages":"926-932"},"PeriodicalIF":1.5000,"publicationDate":"2025-08-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12392402/pdf/","citationCount":"0","resultStr":"{\"title\":\"Effectiveness of EPID-based in-vivo dosimetry with EPIgray<sup>®</sup> Software for head and neck VMAT treatments.\",\"authors\":\"Ghassan Al-Murshedi, Yasmin Md Radzi, Noor Naslinda Noor Rizan, Azhar Abdul Rahman\",\"doi\":\"10.15537/smj.2025.46.8.20240844\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Objectives: </strong>To evaluate the effectiveness of in-vivo dosimetry (IVD) utilizing an electronic portal imaging device (EPID) in conjunction with EPIgray<sup>®</sup> software (DOSIsoft, Cachan, France) for assessing the accuracy of dose delivery for the patient when undertaking head and neck (H&N) treatments.</p><p><strong>Methods: </strong>Using cross-sectional analysis, data were collected from the linear accelerator of twenty patients undergoing (H&N) radiotherapy treatments using the Volumetric Modulated Arc Therapy (VMAT) modality from June 2019 to October 2023 at Gleneagles Hospital Penang, Penang, Malaysia. EPIgray<sup>®</sup> software reconstructed the delivered dose based on EPID images. These reconstructed doses were compared with the planned doses to evaluate dose accuracy, specifically looking at how many patient doses fell within the set tolerance range. In addition, RTsafe PseudoPatient™ phantom was involved in this study, and the reconstructed dose with EPIgray<sup>®</sup> was compared with the delivered dose and was established as a benchmark for accuracy.</p><p><strong>Results: </strong>The percentage difference between the reconstructed doses and planned doses (ΔD%) for patients ranged from (1.96) to (-11.1), and the results showed that 60% of the patients' doses were within the tolerance range (±5%). The phantom study resulted in a percentage dose difference (ΔD%) of -1.73%, and this was established as a benchmark for accuracy.</p><p><strong>Conclusion: </strong>The study proves that using EPID-based in-vivo dosimetry with EPIgray<sup>®</sup> software is a precise way to check that the right amount of radiation is being delivered for patients during radiotherapy to head and neck (H&N) treatments. Integrating EPIgray<sup>®</sup> into clinical practice enhances dose accuracy and patient safety.</p>\",\"PeriodicalId\":21453,\"journal\":{\"name\":\"Saudi Medical Journal\",\"volume\":\"46 8\",\"pages\":\"926-932\"},\"PeriodicalIF\":1.5000,\"publicationDate\":\"2025-08-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12392402/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Saudi Medical Journal\",\"FirstCategoryId\":\"3\",\"ListUrlMain\":\"https://doi.org/10.15537/smj.2025.46.8.20240844\",\"RegionNum\":4,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MEDICINE, GENERAL & INTERNAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Saudi Medical Journal","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.15537/smj.2025.46.8.20240844","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MEDICINE, GENERAL & INTERNAL","Score":null,"Total":0}
引用次数: 0

摘要

目的:评估使用电子门静脉成像设备(EPID)结合EPIgray®软件(DOSIsoft, Cachan,法国)的体内剂量测定(IVD)在进行头颈部(H&N)治疗时评估剂量传递准确性的有效性。方法:采用横断面分析,收集2019年6月至2023年10月在马来西亚槟城Gleneagles医院接受体积调制弧线治疗(VMAT)方式的20例H&N放疗患者的直线加速器数据。EPIgray®软件根据EPID图像重建给药剂量。将这些重建剂量与计划剂量进行比较,以评估剂量的准确性,特别是观察有多少患者剂量落在设定的耐受范围内。此外,RTsafe PseudoPatient™幻影也参与了本研究,并将EPIgray®重建剂量与递送剂量进行了比较,并作为准确性的基准。结果:患者重建剂量与计划剂量的百分比差(ΔD%)范围为(1.96)~(-11.1),60%的患者剂量在耐受范围内(±5%)。幻影研究的百分比剂量差异(ΔD%)为-1.73%,这被建立为准确性的基准。结论:本研究证明,使用epid为基础的体内剂量学与EPIgray®软件是一种精确的方法来检查放射治疗头颈部(H&N)治疗期间患者的放射量是否正确。将EPIgray®集成到临床实践中可以提高剂量准确性和患者安全性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Effectiveness of EPID-based in-vivo dosimetry with EPIgray<sup>®</sup> Software for head and neck VMAT treatments.

Effectiveness of EPID-based in-vivo dosimetry with EPIgray<sup>®</sup> Software for head and neck VMAT treatments.

Effectiveness of EPID-based in-vivo dosimetry with EPIgray<sup>®</sup> Software for head and neck VMAT treatments.

Effectiveness of EPID-based in-vivo dosimetry with EPIgray® Software for head and neck VMAT treatments.

Objectives: To evaluate the effectiveness of in-vivo dosimetry (IVD) utilizing an electronic portal imaging device (EPID) in conjunction with EPIgray® software (DOSIsoft, Cachan, France) for assessing the accuracy of dose delivery for the patient when undertaking head and neck (H&N) treatments.

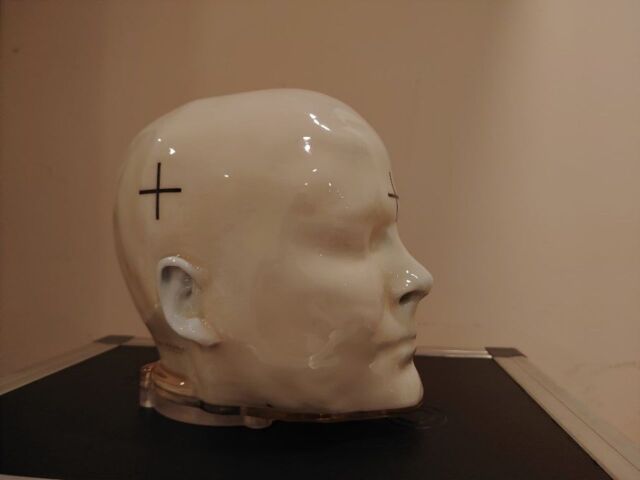

Methods: Using cross-sectional analysis, data were collected from the linear accelerator of twenty patients undergoing (H&N) radiotherapy treatments using the Volumetric Modulated Arc Therapy (VMAT) modality from June 2019 to October 2023 at Gleneagles Hospital Penang, Penang, Malaysia. EPIgray® software reconstructed the delivered dose based on EPID images. These reconstructed doses were compared with the planned doses to evaluate dose accuracy, specifically looking at how many patient doses fell within the set tolerance range. In addition, RTsafe PseudoPatient™ phantom was involved in this study, and the reconstructed dose with EPIgray® was compared with the delivered dose and was established as a benchmark for accuracy.

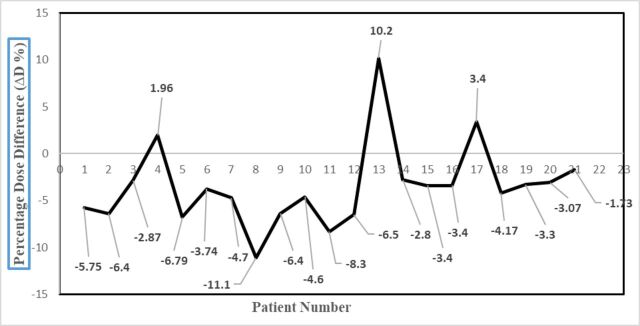

Results: The percentage difference between the reconstructed doses and planned doses (ΔD%) for patients ranged from (1.96) to (-11.1), and the results showed that 60% of the patients' doses were within the tolerance range (±5%). The phantom study resulted in a percentage dose difference (ΔD%) of -1.73%, and this was established as a benchmark for accuracy.

Conclusion: The study proves that using EPID-based in-vivo dosimetry with EPIgray® software is a precise way to check that the right amount of radiation is being delivered for patients during radiotherapy to head and neck (H&N) treatments. Integrating EPIgray® into clinical practice enhances dose accuracy and patient safety.
