YOLOv11-AIU:用于番茄早疫病分级检测的轻量级检测模型。

IF 4.4 2区 生物学 Q1 BIOCHEMICAL RESEARCH METHODS
Xiuying Tang, Zhongqing Sun, Linlin Yang, Qin Chen, Zhenglin Liu, Pei Wang, Yonghua Zhang
{"title":"YOLOv11-AIU:用于番茄早疫病分级检测的轻量级检测模型。","authors":"Xiuying Tang, Zhongqing Sun, Linlin Yang, Qin Chen, Zhenglin Liu, Pei Wang, Yonghua Zhang","doi":"10.1186/s13007-025-01435-z","DOIUrl":null,"url":null,"abstract":"<p><p>Tomato early blight, caused by Alternaria solani, poses a significant threat to crop yields. Existing detection methods often struggle to accurately identify small or multi-scale lesions, particularly in early stages when symptoms exhibit low contrast and only subtle differences from healthy tissue. Blurred lesion boundaries and varying degrees of severity further complicate accurate detection. To address these challenges, we present YOLOv11-AIU, a lightweight object detection model built on an enhanced YOLOv11 framework, specifically designed for severity grading of tomato early blight. The model integrates a C3k2_iAFF attention fusion module to strengthen feature representation, an Adown multi-branch downsampling structure to preserve fine-scale lesion features, and a Unified-IoU loss function to enhance bounding box regression accuracy. A six-level annotated dataset was constructed and expanded to 5,000 images through data augmentation. Experimental results demonstrate that YOLOv11-AIU outperforms models such as YOLOv3-tiny, YOLOv8n, and SSD, achieving a mAP@50 of 94.1%, mAP@50-95 of 93.4%, and an inference speed of 15.67 FPS. When deployed on the Luban Cat5 platform, the model achieved real-time performance, highlighting its strong potential for practical, field-based disease detection in precision agriculture and intelligent plant health monitoring.</p>","PeriodicalId":20100,"journal":{"name":"Plant Methods","volume":"21 1","pages":"118"},"PeriodicalIF":4.4000,"publicationDate":"2025-08-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12376411/pdf/","citationCount":"0","resultStr":"{\"title\":\"YOLOv11-AIU: a lightweight detection model for the grading detection of early blight disease in tomatoes.\",\"authors\":\"Xiuying Tang, Zhongqing Sun, Linlin Yang, Qin Chen, Zhenglin Liu, Pei Wang, Yonghua Zhang\",\"doi\":\"10.1186/s13007-025-01435-z\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Tomato early blight, caused by Alternaria solani, poses a significant threat to crop yields. Existing detection methods often struggle to accurately identify small or multi-scale lesions, particularly in early stages when symptoms exhibit low contrast and only subtle differences from healthy tissue. Blurred lesion boundaries and varying degrees of severity further complicate accurate detection. To address these challenges, we present YOLOv11-AIU, a lightweight object detection model built on an enhanced YOLOv11 framework, specifically designed for severity grading of tomato early blight. The model integrates a C3k2_iAFF attention fusion module to strengthen feature representation, an Adown multi-branch downsampling structure to preserve fine-scale lesion features, and a Unified-IoU loss function to enhance bounding box regression accuracy. A six-level annotated dataset was constructed and expanded to 5,000 images through data augmentation. Experimental results demonstrate that YOLOv11-AIU outperforms models such as YOLOv3-tiny, YOLOv8n, and SSD, achieving a mAP@50 of 94.1%, mAP@50-95 of 93.4%, and an inference speed of 15.67 FPS. When deployed on the Luban Cat5 platform, the model achieved real-time performance, highlighting its strong potential for practical, field-based disease detection in precision agriculture and intelligent plant health monitoring.</p>\",\"PeriodicalId\":20100,\"journal\":{\"name\":\"Plant Methods\",\"volume\":\"21 1\",\"pages\":\"118\"},\"PeriodicalIF\":4.4000,\"publicationDate\":\"2025-08-25\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12376411/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Plant Methods\",\"FirstCategoryId\":\"99\",\"ListUrlMain\":\"https://doi.org/10.1186/s13007-025-01435-z\",\"RegionNum\":2,\"RegionCategory\":\"生物学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"BIOCHEMICAL RESEARCH METHODS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Plant Methods","FirstCategoryId":"99","ListUrlMain":"https://doi.org/10.1186/s13007-025-01435-z","RegionNum":2,"RegionCategory":"生物学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"BIOCHEMICAL RESEARCH METHODS","Score":null,"Total":0}
引用次数: 0

摘要

番茄早疫病是由番茄赤霉病引起的,对作物产量构成重大威胁。现有的检测方法往往难以准确识别小的或多尺度的病变,特别是在症状表现出低对比度且与健康组织只有细微差异的早期阶段。模糊的病灶边界和不同程度的严重程度进一步复杂化了准确的检测。为了解决这些挑战,我们提出了YOLOv11- aiu,这是一个轻量级的目标检测模型,建立在增强的YOLOv11框架上,专门用于番茄早疫病的严重程度分级。该模型集成了C3k2_iAFF注意力融合模块以增强特征表征,downown多分支下采样结构以保留精细尺度病变特征,以及uniform - iou损失函数以提高边界盒回归精度。构建了一个六层带注释的数据集,并通过数据增强扩展到5000张图像。实验结果表明,YOLOv11-AIU优于YOLOv3-tiny、YOLOv8n和SSD等模型,推理准确率mAP@50为94.1%,mAP@50-95为93.4%,推理速度为15.67 FPS。在鲁班Cat5平台上部署后,该模型实现了实时性,突出了其在精准农业现场疾病检测和智能植物健康监测方面的强大潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

YOLOv11-AIU: a lightweight detection model for the grading detection of early blight disease in tomatoes.

YOLOv11-AIU: a lightweight detection model for the grading detection of early blight disease in tomatoes.

YOLOv11-AIU: a lightweight detection model for the grading detection of early blight disease in tomatoes.

YOLOv11-AIU: a lightweight detection model for the grading detection of early blight disease in tomatoes.

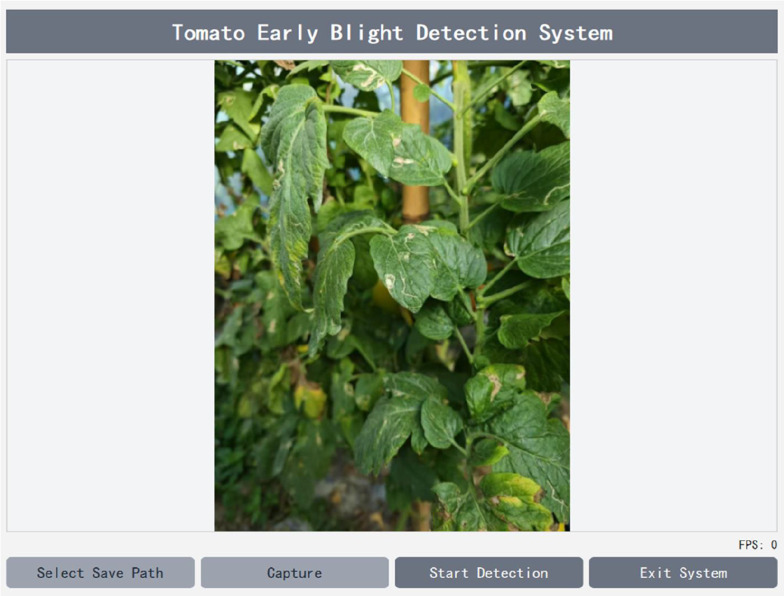

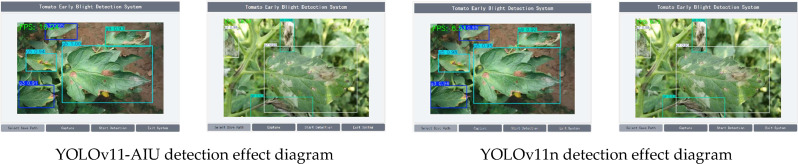

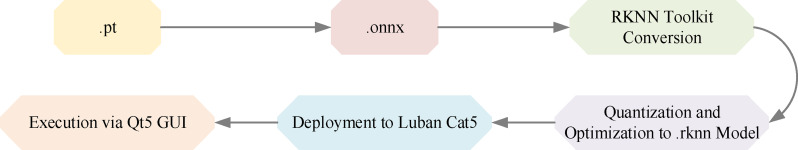

Tomato early blight, caused by Alternaria solani, poses a significant threat to crop yields. Existing detection methods often struggle to accurately identify small or multi-scale lesions, particularly in early stages when symptoms exhibit low contrast and only subtle differences from healthy tissue. Blurred lesion boundaries and varying degrees of severity further complicate accurate detection. To address these challenges, we present YOLOv11-AIU, a lightweight object detection model built on an enhanced YOLOv11 framework, specifically designed for severity grading of tomato early blight. The model integrates a C3k2_iAFF attention fusion module to strengthen feature representation, an Adown multi-branch downsampling structure to preserve fine-scale lesion features, and a Unified-IoU loss function to enhance bounding box regression accuracy. A six-level annotated dataset was constructed and expanded to 5,000 images through data augmentation. Experimental results demonstrate that YOLOv11-AIU outperforms models such as YOLOv3-tiny, YOLOv8n, and SSD, achieving a mAP@50 of 94.1%, mAP@50-95 of 93.4%, and an inference speed of 15.67 FPS. When deployed on the Luban Cat5 platform, the model achieved real-time performance, highlighting its strong potential for practical, field-based disease detection in precision agriculture and intelligent plant health monitoring.
