经眶超声多模态成像检测和评价颅内压增高的前瞻性研究。

IF 3.2 3区医学 Q2 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING

BMC Medical Imaging Pub Date : 2025-08-26 DOI:10.1186/s12880-025-01893-w

Peng He, Lanlan Yu, Xingheng Wang, Bo Ren, Peng Gu, Fei Yang, Yuan Zou

{"title":"经眶超声多模态成像检测和评价颅内压增高的前瞻性研究。","authors":"Peng He, Lanlan Yu, Xingheng Wang, Bo Ren, Peng Gu, Fei Yang, Yuan Zou","doi":"10.1186/s12880-025-01893-w","DOIUrl":null,"url":null,"abstract":"Background: To develop and validate a multimodal transorbital ultrasound model for noninvasive detection of increased intracranial pressure (IICP) by integrating anatomical and hemodynamic parameters.Methods: In this prospective diagnostic study, 136 neurology patients scheduled for lumbar puncture underwent pre-procedural ultrasound measurement of optic nerve sheath diameter (ONSD), ONSD-to-eyeball transverse diameter ratio (ONSD/ETD), and central retinal artery hemodynamics (peak systolic velocity [PSV], resistance index [RI]). Patients were classified as IICP (CSF pressure > 200 mmH₂O) or normal ICP (NICP) groups. Parameter performance was analyzed via ROC curves; multivariate logistic regression constructed a predictive model.Results: The IICP group (n = 52) showed significantly higher ONSD (5.06 ± 0.49 vs. 4.19 ± 0.82 mm), ONSD/ETD (0.24 ± 0.02 vs.0.19 ± 0.04), and RI (0.66 ± 0.07vs.0.56 ± 0.09) but lower PSV (9.45 ± 1.38 vs.10.86 ± 2.14 cm/s) versus NICP (n = 84) (all P < 0.001). The integrated model (ONSD + ONSD/ETD + PSV + RI) achieved superior diagnostic accuracy: AUC 0.95 (95% CI: 0.922-0.988), sensitivity 88.1%, specificity 98.0%, Youden's index 0.86-significantly outperforming any single parameter (AUC 0.67-0.87, P < 0.001)-with the predictive equation: Logit(P) = 1.94×ONSD-84.6×ONSD/ETD + 0.79×PSV-3.8×RI + 11.05.Conclusion: Transorbital multimodal ultrasound combining structural and vascular parameters enables highly accurate, rapid IICP screening, offering a clinically viable noninvasive alternative to conventional monitoring.","PeriodicalId":9020,"journal":{"name":"BMC Medical Imaging","volume":"25 1","pages":"349"},"PeriodicalIF":3.2000,"publicationDate":"2025-08-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12379483/pdf/","citationCount":"0","resultStr":"{\"title\":\"A prospective study of transorbital ultrasound multimodal imaging in the detection and evaluation of increased intracranial pressure.\",\"authors\":\"Peng He, Lanlan Yu, Xingheng Wang, Bo Ren, Peng Gu, Fei Yang, Yuan Zou\",\"doi\":\"10.1186/s12880-025-01893-w\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Background: To develop and validate a multimodal transorbital ultrasound model for noninvasive detection of increased intracranial pressure (IICP) by integrating anatomical and hemodynamic parameters.Methods: In this prospective diagnostic study, 136 neurology patients scheduled for lumbar puncture underwent pre-procedural ultrasound measurement of optic nerve sheath diameter (ONSD), ONSD-to-eyeball transverse diameter ratio (ONSD/ETD), and central retinal artery hemodynamics (peak systolic velocity [PSV], resistance index [RI]). Patients were classified as IICP (CSF pressure > 200 mmH₂O) or normal ICP (NICP) groups. Parameter performance was analyzed via ROC curves; multivariate logistic regression constructed a predictive model.Results: The IICP group (n = 52) showed significantly higher ONSD (5.06 ± 0.49 vs. 4.19 ± 0.82 mm), ONSD/ETD (0.24 ± 0.02 vs.0.19 ± 0.04), and RI (0.66 ± 0.07vs.0.56 ± 0.09) but lower PSV (9.45 ± 1.38 vs.10.86 ± 2.14 cm/s) versus NICP (n = 84) (all P < 0.001). The integrated model (ONSD + ONSD/ETD + PSV + RI) achieved superior diagnostic accuracy: AUC 0.95 (95% CI: 0.922-0.988), sensitivity 88.1%, specificity 98.0%, Youden's index 0.86-significantly outperforming any single parameter (AUC 0.67-0.87, P < 0.001)-with the predictive equation: Logit(P) = 1.94×ONSD-84.6×ONSD/ETD + 0.79×PSV-3.8×RI + 11.05.Conclusion: Transorbital multimodal ultrasound combining structural and vascular parameters enables highly accurate, rapid IICP screening, offering a clinically viable noninvasive alternative to conventional monitoring.\",\"PeriodicalId\":9020,\"journal\":{\"name\":\"BMC Medical Imaging\",\"volume\":\"25 1\",\"pages\":\"349\"},\"PeriodicalIF\":3.2000,\"publicationDate\":\"2025-08-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12379483/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"BMC Medical Imaging\",\"FirstCategoryId\":\"3\",\"ListUrlMain\":\"https://doi.org/10.1186/s12880-025-01893-w\",\"RegionNum\":3,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"BMC Medical Imaging","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s12880-025-01893-w","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

摘要

背景：通过整合解剖学和血流动力学参数，建立并验证一种多模态经眶超声模型，用于无创检测颅内压升高（IICP）。方法：在这项前瞻性诊断研究中，136例神经内科患者计划行腰椎穿刺，术前超声测量视神经鞘直径（ONSD）、视神经鞘与眼球横径比（ONSD/ETD）和视网膜中央动脉血流动力学（峰值收缩速度[PSV]、阻力指数[RI]）。将患者分为IICP （CSF pressure > ~ 200mmh₂O）组和正常ICP （NICP）组。通过ROC曲线分析参数性能；多元逻辑回归构建了预测模型。结果：IICP组（n = 52）的ONSD（5.06±0.49 vs. 4.19±0.82 mm）、ONSD/ETD（0.24±0.02 vs.0.19±0.04）和RI（0.66±0.07vs.0.56±0.09）显著高于NICP组（n = 84）， PSV（9.45±1.38 vs.10.86±2.14 cm/s）显著低于NICP组（均为P）。结论：经眶多模态超声结合结构和血管参数可实现高度准确、快速的IICP筛查，为常规监测提供了临床可行的无创替代方案。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

A prospective study of transorbital ultrasound multimodal imaging in the detection and evaluation of increased intracranial pressure.

查看原文本刊更多论文

A prospective study of transorbital ultrasound multimodal imaging in the detection and evaluation of increased intracranial pressure.

Background: To develop and validate a multimodal transorbital ultrasound model for noninvasive detection of increased intracranial pressure (IICP) by integrating anatomical and hemodynamic parameters.

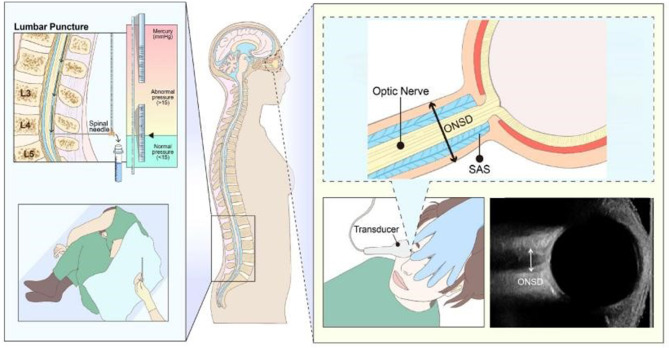

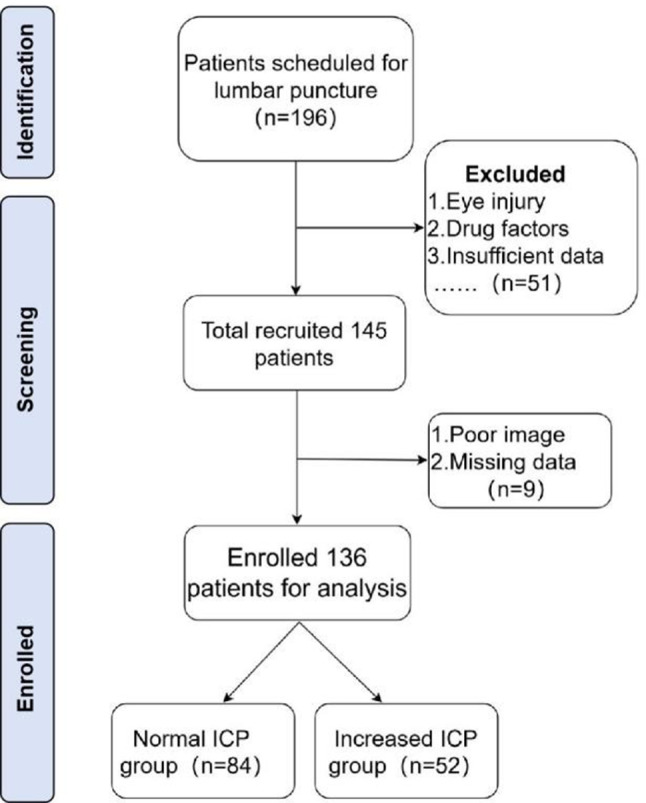

Methods: In this prospective diagnostic study, 136 neurology patients scheduled for lumbar puncture underwent pre-procedural ultrasound measurement of optic nerve sheath diameter (ONSD), ONSD-to-eyeball transverse diameter ratio (ONSD/ETD), and central retinal artery hemodynamics (peak systolic velocity [PSV], resistance index [RI]). Patients were classified as IICP (CSF pressure > 200 mmH₂O) or normal ICP (NICP) groups. Parameter performance was analyzed via ROC curves; multivariate logistic regression constructed a predictive model.

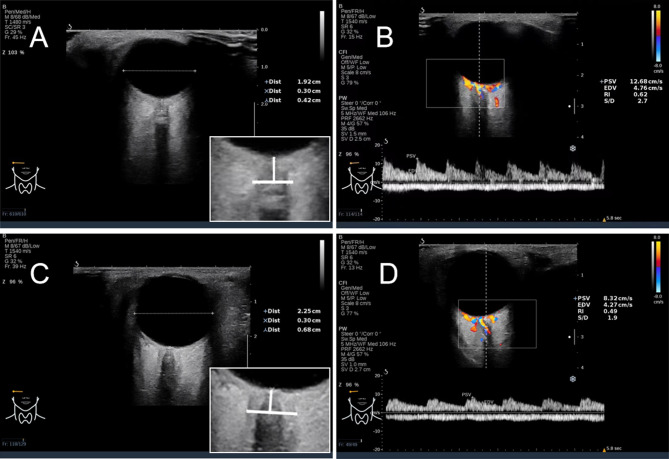

Results: The IICP group (n = 52) showed significantly higher ONSD (5.06 ± 0.49 vs. 4.19 ± 0.82 mm), ONSD/ETD (0.24 ± 0.02 vs.0.19 ± 0.04), and RI (0.66 ± 0.07vs.0.56 ± 0.09) but lower PSV (9.45 ± 1.38 vs.10.86 ± 2.14 cm/s) versus NICP (n = 84) (all P < 0.001). The integrated model (ONSD + ONSD/ETD + PSV + RI) achieved superior diagnostic accuracy: AUC 0.95 (95% CI: 0.922-0.988), sensitivity 88.1%, specificity 98.0%, Youden's index 0.86-significantly outperforming any single parameter (AUC 0.67-0.87, P < 0.001)-with the predictive equation: Logit(P) = 1.94×ONSD-84.6×ONSD/ETD + 0.79×PSV-3.8×RI + 11.05.

Conclusion: Transorbital multimodal ultrasound combining structural and vascular parameters enables highly accurate, rapid IICP screening, offering a clinically viable noninvasive alternative to conventional monitoring.
