Shufen Gan , Xingyan Xie , Liu Wan , Jian Chen , Cheng Du , Yan Zhang , Mingjiang Xie
{"title":"机械化学回收中草药废弃物制备高微孔碳,用于高能量密度超级电容器","authors":"Shufen Gan , Xingyan Xie , Liu Wan , Jian Chen , Cheng Du , Yan Zhang , Mingjiang Xie","doi":"10.1016/j.biombioe.2025.108326","DOIUrl":null,"url":null,"abstract":"<div><div>A sustainable method for synthesizing highly microporous carbon from recycled biomass waste is an efficient way to repurpose waste resources and produce a promising material for supercapacitor (SC). Herein, a mechanochemical approach was developed to create porous carbon by mixing Plantago seed waste (PS) with K<sub>2</sub>CO<sub>3</sub> activator through ball milling, followed by carbonization and water washing, in which over 95 % K<sub>2</sub>CO<sub>3</sub> can be recovered. The resulting products exhibit a microporosity ratio exceeding 90 %, hydrophilic surface, amorphous structure, and abundant oxygenic groups. Due to its high microporosity, the symmetric supercapacitor tests revealed that the PSC could store energy across a wide voltage range of 0–4.0 V in a 1.0 M TEABF<sub>4</sub>/AN electrolyte, achieving a remarkable energy density of 78.1 Wh/kg at a power density of 2000 W/kg. These results highlight the superior energy storage capabilities of the PSC compared to other carbon-based SCs, including an industrially utilized activated carbon (YP-80F) based SC with energy density of 40.6 Wh/kg at 1500 W/kg. This research demonstrates great potential for practical energy storage applications using the developed material.</div></div>","PeriodicalId":253,"journal":{"name":"Biomass & Bioenergy","volume":"203 ","pages":"Article 108326"},"PeriodicalIF":5.8000,"publicationDate":"2025-08-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Highly-microporous carbon created by mechanochemical recycling herbal waste for supercapacitor with superior energy density\",\"authors\":\"Shufen Gan , Xingyan Xie , Liu Wan , Jian Chen , Cheng Du , Yan Zhang , Mingjiang Xie\",\"doi\":\"10.1016/j.biombioe.2025.108326\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>A sustainable method for synthesizing highly microporous carbon from recycled biomass waste is an efficient way to repurpose waste resources and produce a promising material for supercapacitor (SC). Herein, a mechanochemical approach was developed to create porous carbon by mixing Plantago seed waste (PS) with K<sub>2</sub>CO<sub>3</sub> activator through ball milling, followed by carbonization and water washing, in which over 95 % K<sub>2</sub>CO<sub>3</sub> can be recovered. The resulting products exhibit a microporosity ratio exceeding 90 %, hydrophilic surface, amorphous structure, and abundant oxygenic groups. Due to its high microporosity, the symmetric supercapacitor tests revealed that the PSC could store energy across a wide voltage range of 0–4.0 V in a 1.0 M TEABF<sub>4</sub>/AN electrolyte, achieving a remarkable energy density of 78.1 Wh/kg at a power density of 2000 W/kg. These results highlight the superior energy storage capabilities of the PSC compared to other carbon-based SCs, including an industrially utilized activated carbon (YP-80F) based SC with energy density of 40.6 Wh/kg at 1500 W/kg. This research demonstrates great potential for practical energy storage applications using the developed material.</div></div>\",\"PeriodicalId\":253,\"journal\":{\"name\":\"Biomass & Bioenergy\",\"volume\":\"203 \",\"pages\":\"Article 108326\"},\"PeriodicalIF\":5.8000,\"publicationDate\":\"2025-08-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Biomass & Bioenergy\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0961953425007378\",\"RegionNum\":2,\"RegionCategory\":\"生物学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"AGRICULTURAL ENGINEERING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Biomass & Bioenergy","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0961953425007378","RegionNum":2,"RegionCategory":"生物学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"AGRICULTURAL ENGINEERING","Score":null,"Total":0}
引用次数: 0
摘要
利用再生生物质废弃物可持续合成高微孔碳是一种有效的资源再利用方法,是一种极具发展前景的超级电容器材料。本研究采用机械化学方法,将车前草种子废弃物(PS)与K2CO3活化剂通过球磨混合,然后进行碳化和水洗,制备多孔碳,其中K2CO3可回收95%以上。产物微孔率超过90%,表面亲水,结构无定形,含氧基团丰富。由于其高微孔隙度,对称超级电容器测试表明,PSC可以在1.0 M TEABF4/AN电解液中在0-4.0 V的宽电压范围内存储能量,在2000 W/kg的功率密度下实现78.1 Wh/kg的能量密度。这些结果突出了PSC与其他碳基SC相比的优越储能能力,包括工业上使用的基于活性炭(YP-80F)的SC,在1500 W/kg时能量密度为40.6 Wh/kg。这项研究表明,这种材料在实际储能应用中具有巨大的潜力。
Highly-microporous carbon created by mechanochemical recycling herbal waste for supercapacitor with superior energy density

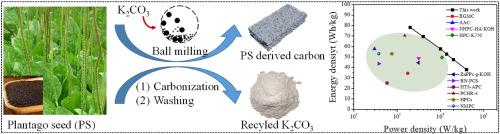

A sustainable method for synthesizing highly microporous carbon from recycled biomass waste is an efficient way to repurpose waste resources and produce a promising material for supercapacitor (SC). Herein, a mechanochemical approach was developed to create porous carbon by mixing Plantago seed waste (PS) with K2CO3 activator through ball milling, followed by carbonization and water washing, in which over 95 % K2CO3 can be recovered. The resulting products exhibit a microporosity ratio exceeding 90 %, hydrophilic surface, amorphous structure, and abundant oxygenic groups. Due to its high microporosity, the symmetric supercapacitor tests revealed that the PSC could store energy across a wide voltage range of 0–4.0 V in a 1.0 M TEABF4/AN electrolyte, achieving a remarkable energy density of 78.1 Wh/kg at a power density of 2000 W/kg. These results highlight the superior energy storage capabilities of the PSC compared to other carbon-based SCs, including an industrially utilized activated carbon (YP-80F) based SC with energy density of 40.6 Wh/kg at 1500 W/kg. This research demonstrates great potential for practical energy storage applications using the developed material.
