{"title":"稀土元素(Gd, Y)对Al-Ti - (Nb,Ta)合金高温氧化的影响","authors":"A. S. Russkih, T. V. Osinkina, E. M. Zhilina","doi":"10.1134/S0036029525701368","DOIUrl":null,"url":null,"abstract":"<p>The effect of gadolinium and yttrium on the high-temperature oxidation of the Al–Ti–(Nb,Ta) systems produced by aluminothermic reduction of Ti, Nb, Ta, Gd, and Y from their oxides is studied. The results of thermodynamic simulation (TDS) performed with the HSC 6.1 software are shown to agree with the experimental data obtained during oxidation of samples in air at 800°C for 100 h. The TDS results show that niobium and aluminum oxides form mainly in niobium alloys and in alloys with rare-earth metal (REM) additions. In tantalum alloys and in alloys with REM additions, titanium and tantalum oxides form; according to literature data, they substantially increase the corrosion resistance as compared to that of the alloys with niobium and aluminum oxides. TDS predicts the formation of Ta<sub>2</sub>O<sub>5</sub>; however, only unstable Ta<sub>2</sub>O<sub>3</sub> and Ta<sub>0.15</sub>O<sub>0.85</sub> phases are found experimentally; they favor a decrease in the corrosion resistance and are likely to be incompletely oxidized and, subsequently, to transform into a stable form. Gadolinium added to the base Nb-containing Al–Ti alloy weakly affects oxidation as compared to that of the base alloy. Yttrium additions to the above system decrease the formation of titanium oxide protective film and lead to an increase in the alloy oxidation. Gadolinium additions to the tantalum-containing Al–Ti base alloy lead to the formation of the nonstoichiometric Ti<sub>4.5</sub>O<sub>5</sub> oxide, which favors oxidation of such alloys due to the formation of stacking faults. Yttrium additions cause the formation of Ti<sub>2</sub>O<sub>3</sub>; at the higher temperatures, it oxidizes to TiO<sub>2</sub> and, in perspective, increases the oxidation stability of the alloys. The results obtained highlight the importance of structural peculiarities of oxide phases in optimizing the properties of the alloys, which is relevant to the development of materials characterized by high oxidation resistance.</p>","PeriodicalId":769,"journal":{"name":"Russian Metallurgy (Metally)","volume":"2025 2","pages":"451 - 457"},"PeriodicalIF":0.3000,"publicationDate":"2025-08-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Effect of Rare-Earth Elements (Gd, Y) on the High-Temperature Oxidation of Al–Ti–(Nb,Ta) Alloys\",\"authors\":\"A. S. Russkih, T. V. Osinkina, E. M. Zhilina\",\"doi\":\"10.1134/S0036029525701368\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>The effect of gadolinium and yttrium on the high-temperature oxidation of the Al–Ti–(Nb,Ta) systems produced by aluminothermic reduction of Ti, Nb, Ta, Gd, and Y from their oxides is studied. The results of thermodynamic simulation (TDS) performed with the HSC 6.1 software are shown to agree with the experimental data obtained during oxidation of samples in air at 800°C for 100 h. The TDS results show that niobium and aluminum oxides form mainly in niobium alloys and in alloys with rare-earth metal (REM) additions. In tantalum alloys and in alloys with REM additions, titanium and tantalum oxides form; according to literature data, they substantially increase the corrosion resistance as compared to that of the alloys with niobium and aluminum oxides. TDS predicts the formation of Ta<sub>2</sub>O<sub>5</sub>; however, only unstable Ta<sub>2</sub>O<sub>3</sub> and Ta<sub>0.15</sub>O<sub>0.85</sub> phases are found experimentally; they favor a decrease in the corrosion resistance and are likely to be incompletely oxidized and, subsequently, to transform into a stable form. Gadolinium added to the base Nb-containing Al–Ti alloy weakly affects oxidation as compared to that of the base alloy. Yttrium additions to the above system decrease the formation of titanium oxide protective film and lead to an increase in the alloy oxidation. Gadolinium additions to the tantalum-containing Al–Ti base alloy lead to the formation of the nonstoichiometric Ti<sub>4.5</sub>O<sub>5</sub> oxide, which favors oxidation of such alloys due to the formation of stacking faults. Yttrium additions cause the formation of Ti<sub>2</sub>O<sub>3</sub>; at the higher temperatures, it oxidizes to TiO<sub>2</sub> and, in perspective, increases the oxidation stability of the alloys. The results obtained highlight the importance of structural peculiarities of oxide phases in optimizing the properties of the alloys, which is relevant to the development of materials characterized by high oxidation resistance.</p>\",\"PeriodicalId\":769,\"journal\":{\"name\":\"Russian Metallurgy (Metally)\",\"volume\":\"2025 2\",\"pages\":\"451 - 457\"},\"PeriodicalIF\":0.3000,\"publicationDate\":\"2025-08-29\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Russian Metallurgy (Metally)\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://link.springer.com/article/10.1134/S0036029525701368\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q4\",\"JCRName\":\"METALLURGY & METALLURGICAL ENGINEERING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Russian Metallurgy (Metally)","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1134/S0036029525701368","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"METALLURGY & METALLURGICAL ENGINEERING","Score":null,"Total":0}
Effect of Rare-Earth Elements (Gd, Y) on the High-Temperature Oxidation of Al–Ti–(Nb,Ta) Alloys

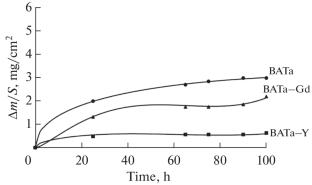

The effect of gadolinium and yttrium on the high-temperature oxidation of the Al–Ti–(Nb,Ta) systems produced by aluminothermic reduction of Ti, Nb, Ta, Gd, and Y from their oxides is studied. The results of thermodynamic simulation (TDS) performed with the HSC 6.1 software are shown to agree with the experimental data obtained during oxidation of samples in air at 800°C for 100 h. The TDS results show that niobium and aluminum oxides form mainly in niobium alloys and in alloys with rare-earth metal (REM) additions. In tantalum alloys and in alloys with REM additions, titanium and tantalum oxides form; according to literature data, they substantially increase the corrosion resistance as compared to that of the alloys with niobium and aluminum oxides. TDS predicts the formation of Ta2O5; however, only unstable Ta2O3 and Ta0.15O0.85 phases are found experimentally; they favor a decrease in the corrosion resistance and are likely to be incompletely oxidized and, subsequently, to transform into a stable form. Gadolinium added to the base Nb-containing Al–Ti alloy weakly affects oxidation as compared to that of the base alloy. Yttrium additions to the above system decrease the formation of titanium oxide protective film and lead to an increase in the alloy oxidation. Gadolinium additions to the tantalum-containing Al–Ti base alloy lead to the formation of the nonstoichiometric Ti4.5O5 oxide, which favors oxidation of such alloys due to the formation of stacking faults. Yttrium additions cause the formation of Ti2O3; at the higher temperatures, it oxidizes to TiO2 and, in perspective, increases the oxidation stability of the alloys. The results obtained highlight the importance of structural peculiarities of oxide phases in optimizing the properties of the alloys, which is relevant to the development of materials characterized by high oxidation resistance.
期刊介绍:
Russian Metallurgy (Metally) publishes results of original experimental and theoretical research in the form of reviews and regular articles devoted to topical problems of metallurgy, physical metallurgy, and treatment of ferrous, nonferrous, rare, and other metals and alloys, intermetallic compounds, and metallic composite materials. The journal focuses on physicochemical properties of metallurgical materials (ores, slags, matters, and melts of metals and alloys); physicochemical processes (thermodynamics and kinetics of pyrometallurgical, hydrometallurgical, electrochemical, and other processes); theoretical metallurgy; metal forming; thermoplastic and thermochemical treatment; computation and experimental determination of phase diagrams and thermokinetic diagrams; mechanisms and kinetics of phase transitions in metallic materials; relations between the chemical composition, phase and structural states of materials and their physicochemical and service properties; interaction between metallic materials and external media; and effects of radiation on these materials.
