自旋涂覆Ge-In-Se薄膜:表征及可见光和电子辐射对铟含量的影响

IF 4.7 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Jiri Jancalek, Aidan Milam, Stanislav Slang, Michal Kurka, Roman Svoboda, Jiri Jemelka, Miroslav Vlcek and Karel Palka
{"title":"自旋涂覆Ge-In-Se薄膜:表征及可见光和电子辐射对铟含量的影响","authors":"Jiri Jancalek, Aidan Milam, Stanislav Slang, Michal Kurka, Roman Svoboda, Jiri Jemelka, Miroslav Vlcek and Karel Palka","doi":"10.1039/D5MA00596E","DOIUrl":null,"url":null,"abstract":"<p >Solution-processed Ge<small><sub>25−<em>x</em></sub></small>In<small><sub><em>x</em></sub></small>Se<small><sub>75</sub></small> (<em>x</em> = 0, 2.5, 5, 7.5 and 10) thin films were prepared <em>via</em> spin-coating for the first time. The glass transition temperature of source bulk glasses decreased with increasing indium content and subsequently guided the hard-baking temperatures of deposited thin films (60–240 °C). Energy-dispersive X-ray spectroscopy revealed thermally induced selenium loss at elevated temperatures, particularly in indium-rich compositions, and a greater resistance to organic residue removal with higher indium content. Increasing the hard-baking temperature led to structural changes resulting in decreased film thickness and optical bandgap, with a simultaneous increase in refractive index. At 240 °C, the optical parameters converged across indium-containing compositions, likely due to the content of low-index organics. Atomic force microscopy showed low surface roughness with minor porosity in Ge<small><sub>17.5</sub></small>In<small><sub>7.5</sub></small>Se<small><sub>75</sub></small>, and Ge<small><sub>15</sub></small>In<small><sub>10</sub></small>Se<small><sub>75</sub></small> thin films. Raman spectroscopy confirmed thermal structural polymerization, with indium-based units showing difficult reintegration into the glass network. Photo- and electron-sensitivity studies using 532 nm laser exposure and electron beam lithography showed that 2.5 at% of indium significantly enhanced sensitivity, while further increases in indium content resulted in a gradual decline. Notably, Ge<small><sub>22.5</sub></small>In<small><sub>2.5</sub></small>Se<small><sub>75</sub></small> thin films exhibited an etching selectivity of 6.4, among the highest ever reported for solution-processed chalcogenide thin films.</p>","PeriodicalId":18242,"journal":{"name":"Materials Advances","volume":" 17","pages":" 6152-6161"},"PeriodicalIF":4.7000,"publicationDate":"2025-08-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2025/ma/d5ma00596e?page=search","citationCount":"0","resultStr":"{\"title\":\"Spin-coated Ge–In–Se thin films: characterization and changes induced by visible and electron radiation in relation to indium content\",\"authors\":\"Jiri Jancalek, Aidan Milam, Stanislav Slang, Michal Kurka, Roman Svoboda, Jiri Jemelka, Miroslav Vlcek and Karel Palka\",\"doi\":\"10.1039/D5MA00596E\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Solution-processed Ge<small><sub>25−<em>x</em></sub></small>In<small><sub><em>x</em></sub></small>Se<small><sub>75</sub></small> (<em>x</em> = 0, 2.5, 5, 7.5 and 10) thin films were prepared <em>via</em> spin-coating for the first time. The glass transition temperature of source bulk glasses decreased with increasing indium content and subsequently guided the hard-baking temperatures of deposited thin films (60–240 °C). Energy-dispersive X-ray spectroscopy revealed thermally induced selenium loss at elevated temperatures, particularly in indium-rich compositions, and a greater resistance to organic residue removal with higher indium content. Increasing the hard-baking temperature led to structural changes resulting in decreased film thickness and optical bandgap, with a simultaneous increase in refractive index. At 240 °C, the optical parameters converged across indium-containing compositions, likely due to the content of low-index organics. Atomic force microscopy showed low surface roughness with minor porosity in Ge<small><sub>17.5</sub></small>In<small><sub>7.5</sub></small>Se<small><sub>75</sub></small>, and Ge<small><sub>15</sub></small>In<small><sub>10</sub></small>Se<small><sub>75</sub></small> thin films. Raman spectroscopy confirmed thermal structural polymerization, with indium-based units showing difficult reintegration into the glass network. Photo- and electron-sensitivity studies using 532 nm laser exposure and electron beam lithography showed that 2.5 at% of indium significantly enhanced sensitivity, while further increases in indium content resulted in a gradual decline. Notably, Ge<small><sub>22.5</sub></small>In<small><sub>2.5</sub></small>Se<small><sub>75</sub></small> thin films exhibited an etching selectivity of 6.4, among the highest ever reported for solution-processed chalcogenide thin films.</p>\",\"PeriodicalId\":18242,\"journal\":{\"name\":\"Materials Advances\",\"volume\":\" 17\",\"pages\":\" 6152-6161\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-08-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.rsc.org/en/content/articlepdf/2025/ma/d5ma00596e?page=search\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Materials Advances\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ma/d5ma00596e\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Advances","FirstCategoryId":"1085","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ma/d5ma00596e","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

首次采用旋涂法制备了溶液处理的Ge25−xInxSe75 (x = 0、2.5、5、7.5和10)薄膜。随着铟含量的增加,源体玻璃的玻璃化转变温度降低,并引导沉积薄膜的硬烘烤温度(60 ~ 240℃)。能量色散x射线光谱揭示了在高温下热致硒损失,特别是在富铟成分中,并且随着铟含量的增加,有机残留物去除的阻力更大。提高硬焙温度导致结构变化,导致薄膜厚度和光学带隙减小,同时折射率增加。在240°C时,光学参数在含铟组合物中收敛,可能是由于低指数有机物的含量。原子力显微镜显示,Ge17.5In7.5Se75和Ge15In10Se75薄膜表面粗糙度低,孔隙率小。拉曼光谱证实了热结构聚合,铟基单元显示难以重新融入玻璃网络。使用532 nm激光曝光和电子束光刻技术进行的光和电子灵敏度研究表明,2.5 at%的铟显著提高了灵敏度,而铟含量的进一步增加导致灵敏度逐渐下降。值得注意的是,Ge22.5In2.5Se75薄膜的蚀刻选择性为6.4,是目前报道的溶液法制备的硫系化合物薄膜中最高的。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Spin-coated Ge–In–Se thin films: characterization and changes induced by visible and electron radiation in relation to indium content

Spin-coated Ge–In–Se thin films: characterization and changes induced by visible and electron radiation in relation to indium content

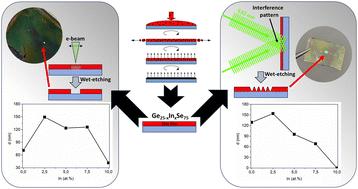

Solution-processed Ge25−xInxSe75 (x = 0, 2.5, 5, 7.5 and 10) thin films were prepared via spin-coating for the first time. The glass transition temperature of source bulk glasses decreased with increasing indium content and subsequently guided the hard-baking temperatures of deposited thin films (60–240 °C). Energy-dispersive X-ray spectroscopy revealed thermally induced selenium loss at elevated temperatures, particularly in indium-rich compositions, and a greater resistance to organic residue removal with higher indium content. Increasing the hard-baking temperature led to structural changes resulting in decreased film thickness and optical bandgap, with a simultaneous increase in refractive index. At 240 °C, the optical parameters converged across indium-containing compositions, likely due to the content of low-index organics. Atomic force microscopy showed low surface roughness with minor porosity in Ge17.5In7.5Se75, and Ge15In10Se75 thin films. Raman spectroscopy confirmed thermal structural polymerization, with indium-based units showing difficult reintegration into the glass network. Photo- and electron-sensitivity studies using 532 nm laser exposure and electron beam lithography showed that 2.5 at% of indium significantly enhanced sensitivity, while further increases in indium content resulted in a gradual decline. Notably, Ge22.5In2.5Se75 thin films exhibited an etching selectivity of 6.4, among the highest ever reported for solution-processed chalcogenide thin films.
