为钙钛矿/PERC串联太阳能电池定制的自组装单层分子,效率超过30%

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
So Jeong Park, Changhoon Yu, Kyu In Shim, Geon Pyo Hong, Sunwu Song, Jae Hyun Park, Sun Kyung Hwang, Yeo Jin Choi, Jeong Woo Han, Min Sang Kwon, Ik Jae Park and Jin Young Kim
{"title":"为钙钛矿/PERC串联太阳能电池定制的自组装单层分子,效率超过30%","authors":"So Jeong Park, Changhoon Yu, Kyu In Shim, Geon Pyo Hong, Sunwu Song, Jae Hyun Park, Sun Kyung Hwang, Yeo Jin Choi, Jeong Woo Han, Min Sang Kwon, Ik Jae Park and Jin Young Kim","doi":"10.1039/D5EE02650D","DOIUrl":null,"url":null,"abstract":"<p >The commercialization of perovskite/Si tandem solar cells requires low product costs, achievable through high efficiency and inexpensive components. Here, we report a highly efficient monolithic perovskite tandem device utilizing a commercial passivated emitter and rear cell (PERC), with the aid of a fluorine-substituted carbazole-based self-assembled monolayer (SAM). Modified SAM molecules enhanced charge transfer due to the larger dipole moments resulting from asymmetric charge distribution. The negative adsorption energy and well-ordered molecules alleviated residual stress in perovskite films and reduced trap density at the interfaces, leading to suppressed non-radiative recombination and improved open-circuit voltage of the perovskite top cell. As a result, the best single-junction perovskite cell exhibits a certified efficiency of 20.14%, with a good operational stability maintaining 90% of its initial efficiency after 1500 hours. The best perovskite/Si tandem cell, fabricated with cost-effective PERC bottom cells, exhibits a conversion efficiency of 30.05%, which is the highest among PERC-based perovskite tandem solar cells.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 20","pages":" 9105-9113"},"PeriodicalIF":30.8000,"publicationDate":"2025-08-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Tailored self-assembled monolayer molecules for perovskite/PERC tandem solar cells with efficiencies over 30%\",\"authors\":\"So Jeong Park, Changhoon Yu, Kyu In Shim, Geon Pyo Hong, Sunwu Song, Jae Hyun Park, Sun Kyung Hwang, Yeo Jin Choi, Jeong Woo Han, Min Sang Kwon, Ik Jae Park and Jin Young Kim\",\"doi\":\"10.1039/D5EE02650D\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The commercialization of perovskite/Si tandem solar cells requires low product costs, achievable through high efficiency and inexpensive components. Here, we report a highly efficient monolithic perovskite tandem device utilizing a commercial passivated emitter and rear cell (PERC), with the aid of a fluorine-substituted carbazole-based self-assembled monolayer (SAM). Modified SAM molecules enhanced charge transfer due to the larger dipole moments resulting from asymmetric charge distribution. The negative adsorption energy and well-ordered molecules alleviated residual stress in perovskite films and reduced trap density at the interfaces, leading to suppressed non-radiative recombination and improved open-circuit voltage of the perovskite top cell. As a result, the best single-junction perovskite cell exhibits a certified efficiency of 20.14%, with a good operational stability maintaining 90% of its initial efficiency after 1500 hours. The best perovskite/Si tandem cell, fabricated with cost-effective PERC bottom cells, exhibits a conversion efficiency of 30.05%, which is the highest among PERC-based perovskite tandem solar cells.</p>\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\" 20\",\"pages\":\" 9105-9113\"},\"PeriodicalIF\":30.8000,\"publicationDate\":\"2025-08-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee02650d\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee02650d","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

钙钛矿/硅串联太阳能电池的商业化需要低产品成本,通过高效率和廉价的组件来实现。在这里,我们报告了一种高效的单片钙钛矿串联装置,利用商业钝化发射极和后电池(PERC),借助氟取代咔唑基自组装单层(SAM)。由于电荷分布不对称导致偶极矩增大,改性的SAM分子增强了电荷转移。负吸附能和有序的分子减轻了钙钛矿薄膜中的残余应力,降低了界面处的陷阱密度,抑制了钙钛矿顶部电池的非辐射复合,提高了开路电压。结果表明,最佳的单结钙钛矿电池的效率为20.14%,在1500小时后具有良好的运行稳定性,保持了初始效率的90%。最佳的钙钛矿/硅串联电池采用性价比高的PERC底电池制成,其转换效率为30.05%,是PERC基钙钛矿串联太阳能电池中最高的。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Tailored self-assembled monolayer molecules for perovskite/PERC tandem solar cells with efficiencies over 30%

Tailored self-assembled monolayer molecules for perovskite/PERC tandem solar cells with efficiencies over 30%

Tailored self-assembled monolayer molecules for perovskite/PERC tandem solar cells with efficiencies over 30%

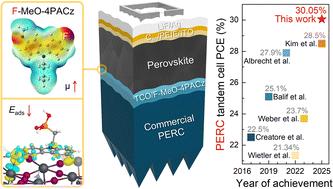

The commercialization of perovskite/Si tandem solar cells requires low product costs, achievable through high efficiency and inexpensive components. Here, we report a highly efficient monolithic perovskite tandem device utilizing a commercial passivated emitter and rear cell (PERC), with the aid of a fluorine-substituted carbazole-based self-assembled monolayer (SAM). Modified SAM molecules enhanced charge transfer due to the larger dipole moments resulting from asymmetric charge distribution. The negative adsorption energy and well-ordered molecules alleviated residual stress in perovskite films and reduced trap density at the interfaces, leading to suppressed non-radiative recombination and improved open-circuit voltage of the perovskite top cell. As a result, the best single-junction perovskite cell exhibits a certified efficiency of 20.14%, with a good operational stability maintaining 90% of its initial efficiency after 1500 hours. The best perovskite/Si tandem cell, fabricated with cost-effective PERC bottom cells, exhibits a conversion efficiency of 30.05%, which is the highest among PERC-based perovskite tandem solar cells.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Energy & Environmental Science
Energy & Environmental Science 化学-工程:化工
CiteScore
50.50
自引率
2.20%
发文量
349
审稿时长
2.2 months
期刊介绍: Energy & Environmental Science, a peer-reviewed scientific journal, publishes original research and review articles covering interdisciplinary topics in the (bio)chemical and (bio)physical sciences, as well as chemical engineering disciplines. Published monthly by the Royal Society of Chemistry (RSC), a not-for-profit publisher, Energy & Environmental Science is recognized as a leading journal. It boasts an impressive impact factor of 8.500 as of 2009, ranking 8th among 140 journals in the category "Chemistry, Multidisciplinary," second among 71 journals in "Energy & Fuels," second among 128 journals in "Engineering, Chemical," and first among 181 scientific journals in "Environmental Sciences." Energy & Environmental Science publishes various types of articles, including Research Papers (original scientific work), Review Articles, Perspectives, and Minireviews (feature review-type articles of broad interest), Communications (original scientific work of an urgent nature), Opinions (personal, often speculative viewpoints or hypotheses on current topics), and Analysis Articles (in-depth examination of energy-related issues).
×
