Tracing terahertz plasmon polaritons with a tunable-by-design dispersion in topological insulator metaelements

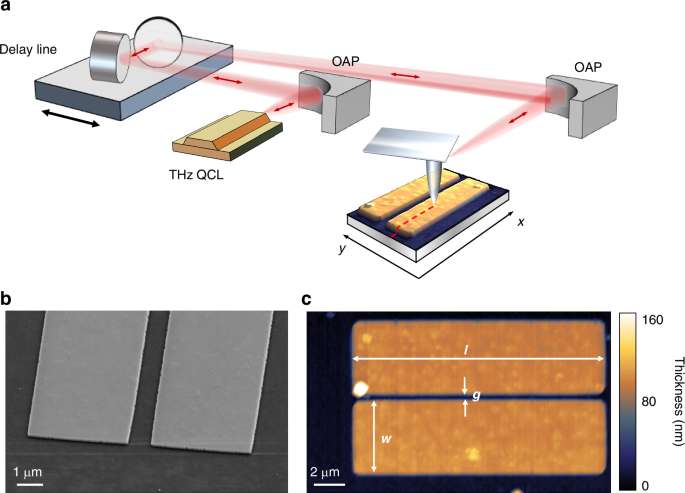

Collective oscillations of massless charge carriers in two-dimensional materials—Dirac plasmon polaritons (DPPs)—are of paramount importance for engineering nanophotonic devices with tunable optical response. However, tailoring the optical properties of DPPs in a nanomaterial is a very challenging task, particularly at terahertz (THz) frequencies, where the DPP momentum is more than one order of magnitude larger than that of the free-space photons, and DDP attenuation is high. Here, we conceive and demonstrate a strategy to tune the DPP dispersion in topological insulator metamaterials. We engineer laterally coupled linear metaelements, fabricated from epitaxial Bi₂Se_3, with selected coupling distances with the purpose to tune their wavevector, by geometry. We launch and directly map the propagation of DPPs confined within coupled meta-atoms via phase-sensitive scattering-type scanning near-field nanoscopy. We demonstrate that the DPP wavelength can be tuned by varying the metaelements coupling distance, resulting in up to a 20% increase of the polariton wavevector Re(k_p) in dimers and triplets with a 1 μm spacing, with reduced losses and a >50% increase of the polariton attenuation length.
