基于mxene的化学阻性传感器的分子间相互作用辅助选择性传感

IF 4.7 3区 材料科学 Q1 ENGINEERING, ELECTRICAL & ELECTRONIC
Yan Hu, Longchao Yao*, Chenghang Zheng and Xiang Gao*,
{"title":"基于mxene的化学阻性传感器的分子间相互作用辅助选择性传感","authors":"Yan Hu,&nbsp;Longchao Yao*,&nbsp;Chenghang Zheng and Xiang Gao*,&nbsp;","doi":"10.1021/acsaelm.5c01095","DOIUrl":null,"url":null,"abstract":"<p >MXene, a family of two-dimensional (2D) layered materials, finds potential applications in gas sensors; however, sensors fabricated with pristine MXene generally suffer from poor selectivity. Herein, we demonstrate tunable selectivity in MXene-based sensors by modifying the surface functionality of MXene layers with 4-bromotriphenylamine (TPA) and 11-mercaptoundecanoic acid (MUA). The intermolecular interactions between analyte molecules and the functionalized MXene surface enable a tunable and selective response to hydrogen bond-rich molecules: MUA-MXene shows preferential sensitivity to methanol, whereas TPA-MXene exhibits an enhanced response to ammonia. Surface functionalization simultaneously improves both the response sensitivity and response time. Furthermore, our results reveal that surface-absorbed water plays a critical role in maintaining a stable gas response, particularly interflake water molecules that facilitate hydrogen bonding between MXene channels and gas molecules. We also developed a stretchable MXene-based ammonia sensor by integrating elastic substrates, stretchable electrodes, and TPA-MXene film. This sensor demonstrates remarkable and stable performance in detecting ammonia (100 to 1000 ppm of NH<sub>3</sub> at 80% relative humidity) under mechanical strain, maintaining functionality under 40% parallel strain and 20% perpendicular strain over a two-month period. The robustness suggests potential applications in breath analysis.</p>","PeriodicalId":3,"journal":{"name":"ACS Applied Electronic Materials","volume":"7 16","pages":"7718–7725"},"PeriodicalIF":4.7000,"publicationDate":"2025-08-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Intermolecular Interaction-Assisted Selective Sensing Using an MXene-Based Chemoresistive Sensor\",\"authors\":\"Yan Hu,&nbsp;Longchao Yao*,&nbsp;Chenghang Zheng and Xiang Gao*,&nbsp;\",\"doi\":\"10.1021/acsaelm.5c01095\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >MXene, a family of two-dimensional (2D) layered materials, finds potential applications in gas sensors; however, sensors fabricated with pristine MXene generally suffer from poor selectivity. Herein, we demonstrate tunable selectivity in MXene-based sensors by modifying the surface functionality of MXene layers with 4-bromotriphenylamine (TPA) and 11-mercaptoundecanoic acid (MUA). The intermolecular interactions between analyte molecules and the functionalized MXene surface enable a tunable and selective response to hydrogen bond-rich molecules: MUA-MXene shows preferential sensitivity to methanol, whereas TPA-MXene exhibits an enhanced response to ammonia. Surface functionalization simultaneously improves both the response sensitivity and response time. Furthermore, our results reveal that surface-absorbed water plays a critical role in maintaining a stable gas response, particularly interflake water molecules that facilitate hydrogen bonding between MXene channels and gas molecules. We also developed a stretchable MXene-based ammonia sensor by integrating elastic substrates, stretchable electrodes, and TPA-MXene film. This sensor demonstrates remarkable and stable performance in detecting ammonia (100 to 1000 ppm of NH<sub>3</sub> at 80% relative humidity) under mechanical strain, maintaining functionality under 40% parallel strain and 20% perpendicular strain over a two-month period. The robustness suggests potential applications in breath analysis.</p>\",\"PeriodicalId\":3,\"journal\":{\"name\":\"ACS Applied Electronic Materials\",\"volume\":\"7 16\",\"pages\":\"7718–7725\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-08-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Electronic Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaelm.5c01095\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, ELECTRICAL & ELECTRONIC\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Electronic Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaelm.5c01095","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0

摘要

MXene是一种二维(2D)层状材料,在气体传感器中有潜在的应用;然而,用原始MXene制造的传感器通常具有较差的选择性。在此,我们通过用4-溴三苯胺(TPA)和11-巯基十四酸(MUA)修饰MXene层的表面功能,证明了MXene传感器的可调选择性。分析物分子与功能化MXene表面之间的分子间相互作用使其对富氢键分子具有可调和选择性的响应:MUA-MXene对甲醇表现出优先敏感性,而TPA-MXene对氨表现出增强的响应。表面功能化同时提高了响应灵敏度和响应时间。此外,我们的研究结果表明,表面吸收的水在维持稳定的气体响应中起着关键作用,特别是层间水分子促进MXene通道和气体分子之间的氢键。我们还通过集成弹性衬底、可拉伸电极和TPA-MXene薄膜,开发了一种可拉伸的基于mxene的氨传感器。该传感器在机械应变下检测氨(在80%相对湿度下检测100至1000 ppm的NH3)表现出卓越而稳定的性能,在40%平行应变和20%垂直应变下保持两个月的功能。鲁棒性表明在呼吸分析中的潜在应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Intermolecular Interaction-Assisted Selective Sensing Using an MXene-Based Chemoresistive Sensor

Intermolecular Interaction-Assisted Selective Sensing Using an MXene-Based Chemoresistive Sensor

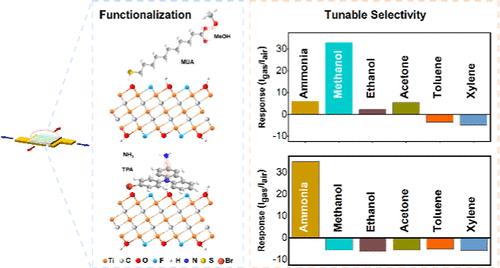

MXene, a family of two-dimensional (2D) layered materials, finds potential applications in gas sensors; however, sensors fabricated with pristine MXene generally suffer from poor selectivity. Herein, we demonstrate tunable selectivity in MXene-based sensors by modifying the surface functionality of MXene layers with 4-bromotriphenylamine (TPA) and 11-mercaptoundecanoic acid (MUA). The intermolecular interactions between analyte molecules and the functionalized MXene surface enable a tunable and selective response to hydrogen bond-rich molecules: MUA-MXene shows preferential sensitivity to methanol, whereas TPA-MXene exhibits an enhanced response to ammonia. Surface functionalization simultaneously improves both the response sensitivity and response time. Furthermore, our results reveal that surface-absorbed water plays a critical role in maintaining a stable gas response, particularly interflake water molecules that facilitate hydrogen bonding between MXene channels and gas molecules. We also developed a stretchable MXene-based ammonia sensor by integrating elastic substrates, stretchable electrodes, and TPA-MXene film. This sensor demonstrates remarkable and stable performance in detecting ammonia (100 to 1000 ppm of NH3 at 80% relative humidity) under mechanical strain, maintaining functionality under 40% parallel strain and 20% perpendicular strain over a two-month period. The robustness suggests potential applications in breath analysis.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
CiteScore
7.20
自引率
4.30%
发文量
567
期刊介绍: ACS Applied Electronic Materials is an interdisciplinary journal publishing original research covering all aspects of electronic materials. The journal is devoted to reports of new and original experimental and theoretical research of an applied nature that integrate knowledge in the areas of materials science, engineering, optics, physics, and chemistry into important applications of electronic materials. Sample research topics that span the journal's scope are inorganic, organic, ionic and polymeric materials with properties that include conducting, semiconducting, superconducting, insulating, dielectric, magnetic, optoelectronic, piezoelectric, ferroelectric and thermoelectric. Indexed/​Abstracted: Web of Science SCIE Scopus CAS INSPEC Portico
×
