Eu3+诱导的LiKBi2(MoO4)4相变红荧光粉的宽激发带和高效率

IF 3.8
Sanhai Wang, Yanqiao Xu, Zhifang Xu, Dayu Xu, Ting Chen, Huidong Tang, Wan Jiang and Lianjun Wang*,
{"title":"Eu3+诱导的LiKBi2(MoO4)4相变红荧光粉的宽激发带和高效率","authors":"Sanhai Wang,&nbsp;Yanqiao Xu,&nbsp;Zhifang Xu,&nbsp;Dayu Xu,&nbsp;Ting Chen,&nbsp;Huidong Tang,&nbsp;Wan Jiang and Lianjun Wang*,&nbsp;","doi":"10.1021/acsaom.5c00126","DOIUrl":null,"url":null,"abstract":"<p >A red phosphor LiKBi<sub>2</sub>(MoO<sub>4</sub>)<sub>4</sub>:Eu<sup>3+</sup> was synthesized at 600 °C via a solid-state reaction. Eu<sup>3+</sup> doping (&gt;20 mol %) triggers a phase transition (tetragonal → monoclinic), inducing severe [EuO<sub>8</sub>] polyhedral distortion (<i>D</i> = 0.1002). This structural rearrangement enables an unprecedented broad excitation band (200–400 nm, fwhm &gt;120 nm), identified by DFT and semiempirical modeling as dominated by Bi<sup>3+</sup>→Mo<sup>6+</sup> metal–metal charge transfer (MMCT), with part contributions from Bi<sup>3+</sup> 6s→6p and O<sup>2–</sup>→Mo<sup>6+</sup>/Eu<sup>3+</sup> charge transfers. The optimized LiKBi<sub>0.8</sub>Eu<sub>1.2</sub>(MoO<sub>4</sub>)<sub>4</sub> phosphor achieves record efficiencies under 350 nm excitation: IQE = 97%, EQE = 84.7%. Linear thermal response (298–473 K, <i>R</i><sup>2</sup> = 0.994) exhibits high relative sensitivity (<i>S</i><sub>r</sub> = 1.3147% K<sup>–1</sup> at 473 K). Combined with a 365 nm UV chip, it delivers warm white light (Ra = 87.3, CCT = 3464 K) with 25.82 lm/W efficacy. This work provides a cost-effective, high-performance red phosphor for high-CRI lighting and high-temperature sensing and implements a structural design strategy for spectral regulation.</p>","PeriodicalId":29803,"journal":{"name":"ACS Applied Optical Materials","volume":"3 8","pages":"1669–1683"},"PeriodicalIF":3.8000,"publicationDate":"2025-07-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Broad Excitation Band and High Efficiency of Red Phosphor Caused by Eu3+-Induced Phase Transition in LiKBi2(MoO4)4\",\"authors\":\"Sanhai Wang,&nbsp;Yanqiao Xu,&nbsp;Zhifang Xu,&nbsp;Dayu Xu,&nbsp;Ting Chen,&nbsp;Huidong Tang,&nbsp;Wan Jiang and Lianjun Wang*,&nbsp;\",\"doi\":\"10.1021/acsaom.5c00126\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >A red phosphor LiKBi<sub>2</sub>(MoO<sub>4</sub>)<sub>4</sub>:Eu<sup>3+</sup> was synthesized at 600 °C via a solid-state reaction. Eu<sup>3+</sup> doping (&gt;20 mol %) triggers a phase transition (tetragonal → monoclinic), inducing severe [EuO<sub>8</sub>] polyhedral distortion (<i>D</i> = 0.1002). This structural rearrangement enables an unprecedented broad excitation band (200–400 nm, fwhm &gt;120 nm), identified by DFT and semiempirical modeling as dominated by Bi<sup>3+</sup>→Mo<sup>6+</sup> metal–metal charge transfer (MMCT), with part contributions from Bi<sup>3+</sup> 6s→6p and O<sup>2–</sup>→Mo<sup>6+</sup>/Eu<sup>3+</sup> charge transfers. The optimized LiKBi<sub>0.8</sub>Eu<sub>1.2</sub>(MoO<sub>4</sub>)<sub>4</sub> phosphor achieves record efficiencies under 350 nm excitation: IQE = 97%, EQE = 84.7%. Linear thermal response (298–473 K, <i>R</i><sup>2</sup> = 0.994) exhibits high relative sensitivity (<i>S</i><sub>r</sub> = 1.3147% K<sup>–1</sup> at 473 K). Combined with a 365 nm UV chip, it delivers warm white light (Ra = 87.3, CCT = 3464 K) with 25.82 lm/W efficacy. This work provides a cost-effective, high-performance red phosphor for high-CRI lighting and high-temperature sensing and implements a structural design strategy for spectral regulation.</p>\",\"PeriodicalId\":29803,\"journal\":{\"name\":\"ACS Applied Optical Materials\",\"volume\":\"3 8\",\"pages\":\"1669–1683\"},\"PeriodicalIF\":3.8000,\"publicationDate\":\"2025-07-22\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Optical Materials\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaom.5c00126\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Optical Materials","FirstCategoryId":"1085","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaom.5c00126","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

摘要

在600℃下通过固相反应合成了红色荧光粉LiKBi2(MoO4)4:Eu3+。Eu3+掺杂(>20 mol %)引发相变(四方→单斜),诱发严重的[EuO8]多面体畸变(D = 0.1002)。这种结构重排使得前所未有的宽激发带(200-400 nm, fwhm >120 nm)被DFT和半经验模型确定为Bi3+→Mo6+金属-金属电荷转移(MMCT)主导,部分贡献来自Bi3+ 6s→6p和O2 -→Mo6+/Eu3+电荷转移。优化后的LiKBi0.8Eu1.2(MoO4)4荧光粉在350 nm激发下达到了创纪录的效率:IQE = 97%, EQE = 84.7%。线性热响应(298 ~ 473 K, R2 = 0.994)具有较高的相对灵敏度(473 K时Sr = 1.3147% K - 1)。结合365 nm紫外芯片,它提供温暖的白光(Ra = 87.3, CCT = 3464 K),效率为25.82 lm/W。这项工作为高显色度照明和高温传感提供了一种具有成本效益的高性能红色荧光粉,并实现了光谱调节的结构设计策略。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Broad Excitation Band and High Efficiency of Red Phosphor Caused by Eu3+-Induced Phase Transition in LiKBi2(MoO4)4

Broad Excitation Band and High Efficiency of Red Phosphor Caused by Eu3+-Induced Phase Transition in LiKBi2(MoO4)4

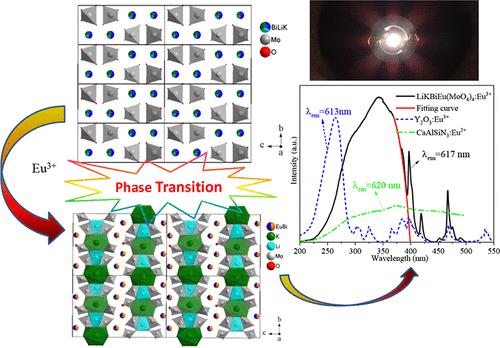

A red phosphor LiKBi2(MoO4)4:Eu3+ was synthesized at 600 °C via a solid-state reaction. Eu3+ doping (>20 mol %) triggers a phase transition (tetragonal → monoclinic), inducing severe [EuO8] polyhedral distortion (D = 0.1002). This structural rearrangement enables an unprecedented broad excitation band (200–400 nm, fwhm >120 nm), identified by DFT and semiempirical modeling as dominated by Bi3+→Mo6+ metal–metal charge transfer (MMCT), with part contributions from Bi3+ 6s→6p and O2–→Mo6+/Eu3+ charge transfers. The optimized LiKBi0.8Eu1.2(MoO4)4 phosphor achieves record efficiencies under 350 nm excitation: IQE = 97%, EQE = 84.7%. Linear thermal response (298–473 K, R2 = 0.994) exhibits high relative sensitivity (Sr = 1.3147% K–1 at 473 K). Combined with a 365 nm UV chip, it delivers warm white light (Ra = 87.3, CCT = 3464 K) with 25.82 lm/W efficacy. This work provides a cost-effective, high-performance red phosphor for high-CRI lighting and high-temperature sensing and implements a structural design strategy for spectral regulation.
