{"title":"常温常压下合成氨用π -π堆叠稳定超分子纳米笼π-骨架及其衍生物","authors":"Gaoyun Shi, Wenlong Huang, Mingze Lv, Zhenwei Liu, Chaoyu Liu, Jie Zheng, Chensong Liang, Zhiwei Yang, Jiaoyao Lu, Yushi Ding* and Ying Li*, ","doi":"10.1021/acs.cgd.5c00876","DOIUrl":null,"url":null,"abstract":"<p >The electrochemical reduction of nitrogen to ammonia is a promising approach for large-scale industrial ammonia production due to its low energy consumption and environmental benignity. In this study, a porous π–π stabilized supramolecular nanocage-based π-skeleton (π-2) with a topological structure was hydrothermally prepared. Then, π-2 was used as a support for the in situ growth of Ni<sub>2</sub>O<sub>3</sub> to obtain a composite Ni<sub>2</sub>O<sub>3</sub>/π-2 catalyst. The π–π stacking interaction of π-2 was effectively harnessed to enhance the electrical conductivity of Ni<sub>2</sub>O<sub>3</sub>, leading to significantly improved electrocatalytic activity for nitrogen reduction to ammonia. When applied for ammonia synthesis under ambient temperature and pressure, π-2 exhibited an NH<sub>3</sub> generation rate of 2.86 μg·h<sup>–1</sup>·mg<sub>cat</sub><sup>–1</sup> and FE of 9.6% at a potential of −0.23 V (vs RHE). Meanwhile, the Ni<sub>2</sub>O<sub>3</sub>/π-2 catalyst exhibited an NH<sub>3</sub> generation rate of 8.22 μg·h<sup>–1</sup>·mg<sub>cat</sub><sup>–1</sup> and FE of 5.14% at −0.88 V (vs RHE). These results confirm the electrocatalytic activity of π-2 for nitrogen reduction to ammonia and demonstrate its good potential as an excellent support for transition metal catalysts. The in situ growth of Ni<sub>2</sub>O<sub>3</sub> on π-2 reduces the degree of π–π bonding, forms nickel–nitrogen bonds favorable for electron transport, and modulates the electronic structure of the active centers.</p>","PeriodicalId":34,"journal":{"name":"Crystal Growth & Design","volume":"25 16","pages":"6931–6939"},"PeriodicalIF":3.4000,"publicationDate":"2025-08-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"π–π Stacked Stable Supramolecular Nanocage π-Skeleton and Its Derivatives for Ammonia Synthesis at Normal Temperature and Pressure\",\"authors\":\"Gaoyun Shi, Wenlong Huang, Mingze Lv, Zhenwei Liu, Chaoyu Liu, Jie Zheng, Chensong Liang, Zhiwei Yang, Jiaoyao Lu, Yushi Ding* and Ying Li*, \",\"doi\":\"10.1021/acs.cgd.5c00876\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The electrochemical reduction of nitrogen to ammonia is a promising approach for large-scale industrial ammonia production due to its low energy consumption and environmental benignity. In this study, a porous π–π stabilized supramolecular nanocage-based π-skeleton (π-2) with a topological structure was hydrothermally prepared. Then, π-2 was used as a support for the in situ growth of Ni<sub>2</sub>O<sub>3</sub> to obtain a composite Ni<sub>2</sub>O<sub>3</sub>/π-2 catalyst. The π–π stacking interaction of π-2 was effectively harnessed to enhance the electrical conductivity of Ni<sub>2</sub>O<sub>3</sub>, leading to significantly improved electrocatalytic activity for nitrogen reduction to ammonia. When applied for ammonia synthesis under ambient temperature and pressure, π-2 exhibited an NH<sub>3</sub> generation rate of 2.86 μg·h<sup>–1</sup>·mg<sub>cat</sub><sup>–1</sup> and FE of 9.6% at a potential of −0.23 V (vs RHE). Meanwhile, the Ni<sub>2</sub>O<sub>3</sub>/π-2 catalyst exhibited an NH<sub>3</sub> generation rate of 8.22 μg·h<sup>–1</sup>·mg<sub>cat</sub><sup>–1</sup> and FE of 5.14% at −0.88 V (vs RHE). These results confirm the electrocatalytic activity of π-2 for nitrogen reduction to ammonia and demonstrate its good potential as an excellent support for transition metal catalysts. The in situ growth of Ni<sub>2</sub>O<sub>3</sub> on π-2 reduces the degree of π–π bonding, forms nickel–nitrogen bonds favorable for electron transport, and modulates the electronic structure of the active centers.</p>\",\"PeriodicalId\":34,\"journal\":{\"name\":\"Crystal Growth & Design\",\"volume\":\"25 16\",\"pages\":\"6931–6939\"},\"PeriodicalIF\":3.4000,\"publicationDate\":\"2025-08-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Crystal Growth & Design\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.cgd.5c00876\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Crystal Growth & Design","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.cgd.5c00876","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
电化学还原氮制氨具有低能耗、环保等优点,是一种很有前途的大规模工业制氨方法。本研究用水热法制备了具有拓扑结构的多孔π -π稳定的超分子纳米骨架(π-2)。然后,用π-2作为Ni2O3原位生长的载体,得到Ni2O3/π-2复合催化剂。利用π-2的π -π堆叠相互作用增强了Ni2O3的电导率,显著提高了Ni2O3还原氮制氨的电催化活性。在常温常压条件下,π-2在−0.23 V (vs RHE)电位下NH3的生成速率为2.86 μg·h-1·mgcat-1, FE为9.6%。同时,Ni2O3/π-2催化剂在−0.88 V (vs RHE)下NH3的生成速率为8.22 μg·h-1·mgcat-1, FE为5.14%。这些结果证实了π-2对氮还原制氨的电催化活性,表明π-2作为过渡金属催化剂的优良载体具有良好的潜力。Ni2O3在π-2表面的原位生长降低了π -π成键的程度,形成有利于电子传递的镍-氮键,并调节了活性中心的电子结构。
π–π Stacked Stable Supramolecular Nanocage π-Skeleton and Its Derivatives for Ammonia Synthesis at Normal Temperature and Pressure

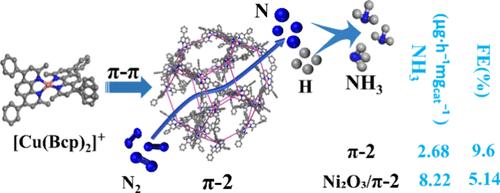

The electrochemical reduction of nitrogen to ammonia is a promising approach for large-scale industrial ammonia production due to its low energy consumption and environmental benignity. In this study, a porous π–π stabilized supramolecular nanocage-based π-skeleton (π-2) with a topological structure was hydrothermally prepared. Then, π-2 was used as a support for the in situ growth of Ni2O3 to obtain a composite Ni2O3/π-2 catalyst. The π–π stacking interaction of π-2 was effectively harnessed to enhance the electrical conductivity of Ni2O3, leading to significantly improved electrocatalytic activity for nitrogen reduction to ammonia. When applied for ammonia synthesis under ambient temperature and pressure, π-2 exhibited an NH3 generation rate of 2.86 μg·h–1·mgcat–1 and FE of 9.6% at a potential of −0.23 V (vs RHE). Meanwhile, the Ni2O3/π-2 catalyst exhibited an NH3 generation rate of 8.22 μg·h–1·mgcat–1 and FE of 5.14% at −0.88 V (vs RHE). These results confirm the electrocatalytic activity of π-2 for nitrogen reduction to ammonia and demonstrate its good potential as an excellent support for transition metal catalysts. The in situ growth of Ni2O3 on π-2 reduces the degree of π–π bonding, forms nickel–nitrogen bonds favorable for electron transport, and modulates the electronic structure of the active centers.
