Shengjie Du, Feng Ye, Yutao Wang, Shuangbiao Xia, Guoyi Chen, Zhiqiu Yu, Kailian Dong, Zixi Yu, Yangyang Guo, Kexin Ming, Yansong Ge, Qinxian Lin, Kun Dai, Jiwei Liang, Zhenhua Yu, Weijun Ke, Liping Zhang and Guojia Fang
{"title":"底部定向沉积钙钛矿异质结高效稳定的铅卤化物钙钛矿/硅串联太阳能电池","authors":"Shengjie Du, Feng Ye, Yutao Wang, Shuangbiao Xia, Guoyi Chen, Zhiqiu Yu, Kailian Dong, Zixi Yu, Yangyang Guo, Kexin Ming, Yansong Ge, Qinxian Lin, Kun Dai, Jiwei Liang, Zhenhua Yu, Weijun Ke, Liping Zhang and Guojia Fang","doi":"10.1039/D5EE03475B","DOIUrl":null,"url":null,"abstract":"<p >Perovskite/silicon (PSC/Si) tandem solar cells are promising for high-efficiency photovoltaics, yet wide-bandgap (WBG) perovskites face challenges including poor charge transport, phase segregation, and poor conformality on textured silicon. Here, we engineered directional deposition 2D perovskite assemblies at the perovskite bottom interface to establish heterojunctions, enhancing charge transport, improving band alignment, and boosting operational stability by introducing 3,3-difluoropyrrolidinium hydrochloride (DFPHCl) and guanidinium thiocyanate (GASCN) into the WBG perovskite precursor. Leveraging the strong binding affinity of DFPHCl within the precursor solution for indium tin oxide (ITO), we converted excess lead iodide (PbI<small><sub>2</sub></small>) into directional deposition 2D perovskite (DFP)<small><sub>2</sub></small>PbI<small><sub><em>x</em></sub></small>Cl<small><sub>4−<em>x</em></sub></small>, which accumulates at bottom grain boundaries and can compromise stability. The process facilitated by GASCN as a crystallization promoter concurrently enhanced (100)-oriented crystal growth and further optimized the band alignment. The resultant 1.67 eV perovskite solar cell achieves a high open-circuit voltage (<em>V</em><small><sub>OC</sub></small>) of 1.284 V and a power conversion efficiency (PCE) of 23.29%, maintaining 90% of its initial performance after 983 hours of continuous illumination. The optimized tandem device delivers a <em>V</em><small><sub>OC</sub></small> of 1.913 V and a stabilized PCE of 31.37%, establishing a good pathway toward efficient and stable tandem photovoltaic devices.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 19","pages":" 8827-8837"},"PeriodicalIF":30.8000,"publicationDate":"2025-08-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Bottom directional deposition perovskite heterojunctions for efficient and stable lead halide perovskite/silicon tandem solar cells\",\"authors\":\"Shengjie Du, Feng Ye, Yutao Wang, Shuangbiao Xia, Guoyi Chen, Zhiqiu Yu, Kailian Dong, Zixi Yu, Yangyang Guo, Kexin Ming, Yansong Ge, Qinxian Lin, Kun Dai, Jiwei Liang, Zhenhua Yu, Weijun Ke, Liping Zhang and Guojia Fang\",\"doi\":\"10.1039/D5EE03475B\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Perovskite/silicon (PSC/Si) tandem solar cells are promising for high-efficiency photovoltaics, yet wide-bandgap (WBG) perovskites face challenges including poor charge transport, phase segregation, and poor conformality on textured silicon. Here, we engineered directional deposition 2D perovskite assemblies at the perovskite bottom interface to establish heterojunctions, enhancing charge transport, improving band alignment, and boosting operational stability by introducing 3,3-difluoropyrrolidinium hydrochloride (DFPHCl) and guanidinium thiocyanate (GASCN) into the WBG perovskite precursor. Leveraging the strong binding affinity of DFPHCl within the precursor solution for indium tin oxide (ITO), we converted excess lead iodide (PbI<small><sub>2</sub></small>) into directional deposition 2D perovskite (DFP)<small><sub>2</sub></small>PbI<small><sub><em>x</em></sub></small>Cl<small><sub>4−<em>x</em></sub></small>, which accumulates at bottom grain boundaries and can compromise stability. The process facilitated by GASCN as a crystallization promoter concurrently enhanced (100)-oriented crystal growth and further optimized the band alignment. The resultant 1.67 eV perovskite solar cell achieves a high open-circuit voltage (<em>V</em><small><sub>OC</sub></small>) of 1.284 V and a power conversion efficiency (PCE) of 23.29%, maintaining 90% of its initial performance after 983 hours of continuous illumination. The optimized tandem device delivers a <em>V</em><small><sub>OC</sub></small> of 1.913 V and a stabilized PCE of 31.37%, establishing a good pathway toward efficient and stable tandem photovoltaic devices.</p>\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\" 19\",\"pages\":\" 8827-8837\"},\"PeriodicalIF\":30.8000,\"publicationDate\":\"2025-08-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee03475b\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee03475b","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
Bottom directional deposition perovskite heterojunctions for efficient and stable lead halide perovskite/silicon tandem solar cells

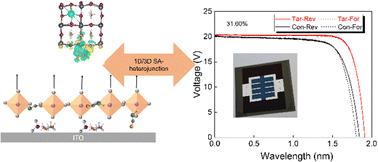

Perovskite/silicon (PSC/Si) tandem solar cells are promising for high-efficiency photovoltaics, yet wide-bandgap (WBG) perovskites face challenges including poor charge transport, phase segregation, and poor conformality on textured silicon. Here, we engineered directional deposition 2D perovskite assemblies at the perovskite bottom interface to establish heterojunctions, enhancing charge transport, improving band alignment, and boosting operational stability by introducing 3,3-difluoropyrrolidinium hydrochloride (DFPHCl) and guanidinium thiocyanate (GASCN) into the WBG perovskite precursor. Leveraging the strong binding affinity of DFPHCl within the precursor solution for indium tin oxide (ITO), we converted excess lead iodide (PbI2) into directional deposition 2D perovskite (DFP)2PbIxCl4−x, which accumulates at bottom grain boundaries and can compromise stability. The process facilitated by GASCN as a crystallization promoter concurrently enhanced (100)-oriented crystal growth and further optimized the band alignment. The resultant 1.67 eV perovskite solar cell achieves a high open-circuit voltage (VOC) of 1.284 V and a power conversion efficiency (PCE) of 23.29%, maintaining 90% of its initial performance after 983 hours of continuous illumination. The optimized tandem device delivers a VOC of 1.913 V and a stabilized PCE of 31.37%, establishing a good pathway toward efficient and stable tandem photovoltaic devices.
