用于高灵敏度x射线探测的大尺寸CsPbBr3单晶层流优化受限几何辅助溶液生长

IF 6.7 1区 物理与天体物理 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Ruichen Bai, Xin Liu*, Zihang Lin, Siliang Hu, Xin Zhang, Johnny C. Ho, Rongrong Guo, Wanqi Jie and Yadong Xu*,
{"title":"用于高灵敏度x射线探测的大尺寸CsPbBr3单晶层流优化受限几何辅助溶液生长","authors":"Ruichen Bai,&nbsp;Xin Liu*,&nbsp;Zihang Lin,&nbsp;Siliang Hu,&nbsp;Xin Zhang,&nbsp;Johnny C. Ho,&nbsp;Rongrong Guo,&nbsp;Wanqi Jie and Yadong Xu*,&nbsp;","doi":"10.1021/acsphotonics.5c01079","DOIUrl":null,"url":null,"abstract":"<p >The CsPbBr<sub>3</sub> crystal grown by the solution method is regarded as an attractive and cost-effective material for radiation detection. However, approaching large-size, high-quality CsPbBr<sub>3</sub> single crystals is restricted by mass nucleation and an unstable growth interface. Here, the confined geometry assisted solution method is employed to obtain high-quality CsPbBr<sub>3</sub> single crystals with dimensions up to 17 × 17 × 2 mm<sup>3</sup>. High yield growth of CsPbBr<sub>3</sub> seed crystals is achieved by adopting 2-bromopropionic acid (2-BPA) in the precursor, which expands the metastable zone twice and reduces nucleation. The crystal growth environment, simulated with a specific laminar flow model, reveals the uniform concentration distribution is realized by suitable forced convection velocity, thereby substantially enhancing the stability of the crystal growth interface. The resulting CsPbBr<sub>3</sub> single crystal exhibits low trap density states of 2.27 × 10<sup>9</sup> cm<sup>–3</sup>, leading to a high hole mobility of 377.63 cm<sup>2</sup> V<sup>–1</sup> s<sup>–1</sup>. Finally, a high sensitivity of 1.6 × 10<sup>5</sup> μC Gy<sub>air</sub><sup>–1</sup> cm<sup>–2</sup> is realized under 50 kVp X-rays at 500 V cm<sup>–1</sup>. These results promote the application of large-sized CsPbBr<sub>3</sub> single crystals in X-ray radiation detection as well as the reference and guidance for the growth of other perovskite single crystals.</p>","PeriodicalId":23,"journal":{"name":"ACS Photonics","volume":"12 9","pages":"5087–5096"},"PeriodicalIF":6.7000,"publicationDate":"2025-08-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Laminar Flow-Optimized Confined Geometry Assistant Solution Growth of Large-Sized CsPbBr3 Single Crystals for High-Sensitivity X-ray Detection\",\"authors\":\"Ruichen Bai,&nbsp;Xin Liu*,&nbsp;Zihang Lin,&nbsp;Siliang Hu,&nbsp;Xin Zhang,&nbsp;Johnny C. Ho,&nbsp;Rongrong Guo,&nbsp;Wanqi Jie and Yadong Xu*,&nbsp;\",\"doi\":\"10.1021/acsphotonics.5c01079\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The CsPbBr<sub>3</sub> crystal grown by the solution method is regarded as an attractive and cost-effective material for radiation detection. However, approaching large-size, high-quality CsPbBr<sub>3</sub> single crystals is restricted by mass nucleation and an unstable growth interface. Here, the confined geometry assisted solution method is employed to obtain high-quality CsPbBr<sub>3</sub> single crystals with dimensions up to 17 × 17 × 2 mm<sup>3</sup>. High yield growth of CsPbBr<sub>3</sub> seed crystals is achieved by adopting 2-bromopropionic acid (2-BPA) in the precursor, which expands the metastable zone twice and reduces nucleation. The crystal growth environment, simulated with a specific laminar flow model, reveals the uniform concentration distribution is realized by suitable forced convection velocity, thereby substantially enhancing the stability of the crystal growth interface. The resulting CsPbBr<sub>3</sub> single crystal exhibits low trap density states of 2.27 × 10<sup>9</sup> cm<sup>–3</sup>, leading to a high hole mobility of 377.63 cm<sup>2</sup> V<sup>–1</sup> s<sup>–1</sup>. Finally, a high sensitivity of 1.6 × 10<sup>5</sup> μC Gy<sub>air</sub><sup>–1</sup> cm<sup>–2</sup> is realized under 50 kVp X-rays at 500 V cm<sup>–1</sup>. These results promote the application of large-sized CsPbBr<sub>3</sub> single crystals in X-ray radiation detection as well as the reference and guidance for the growth of other perovskite single crystals.</p>\",\"PeriodicalId\":23,\"journal\":{\"name\":\"ACS Photonics\",\"volume\":\"12 9\",\"pages\":\"5087–5096\"},\"PeriodicalIF\":6.7000,\"publicationDate\":\"2025-08-14\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Photonics\",\"FirstCategoryId\":\"101\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsphotonics.5c01079\",\"RegionNum\":1,\"RegionCategory\":\"物理与天体物理\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Photonics","FirstCategoryId":"101","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsphotonics.5c01079","RegionNum":1,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

通过溶液法生长的CsPbBr3晶体被认为是一种具有吸引力和成本效益的辐射检测材料。然而,接近大尺寸、高质量的CsPbBr3单晶受到质量成核和生长界面不稳定的限制。本文采用受限几何辅助溶液法获得了尺寸达17 × 17 × 2 mm3的高质量CsPbBr3单晶。采用2-溴丙酸(2-BPA)作为前驱体,使亚稳区扩大2倍,减少成核,实现了CsPbBr3种子晶体的高产率生长。用特定层流模型模拟晶体生长环境,发现合适的强制对流速度可以实现均匀的浓度分布,从而大大提高晶体生长界面的稳定性。所得CsPbBr3单晶表现出2.27 × 109 cm-3的低阱密度态,空穴迁移率高达377.63 cm2 V-1 s-1。最后,在500 V cm-1、50 kVp x射线下,实现了1.6 × 105 μC Gyair-1 cm-2的高灵敏度。这些结果促进了大尺寸CsPbBr3单晶在x射线辐射探测中的应用,也为其他钙钛矿单晶的生长提供了参考和指导。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Laminar Flow-Optimized Confined Geometry Assistant Solution Growth of Large-Sized CsPbBr3 Single Crystals for High-Sensitivity X-ray Detection

Laminar Flow-Optimized Confined Geometry Assistant Solution Growth of Large-Sized CsPbBr3 Single Crystals for High-Sensitivity X-ray Detection

Laminar Flow-Optimized Confined Geometry Assistant Solution Growth of Large-Sized CsPbBr3 Single Crystals for High-Sensitivity X-ray Detection

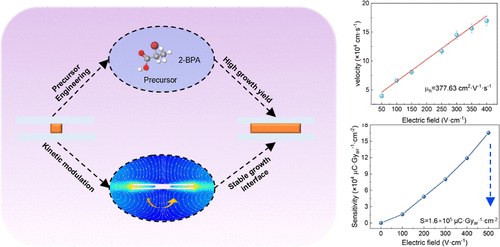

The CsPbBr3 crystal grown by the solution method is regarded as an attractive and cost-effective material for radiation detection. However, approaching large-size, high-quality CsPbBr3 single crystals is restricted by mass nucleation and an unstable growth interface. Here, the confined geometry assisted solution method is employed to obtain high-quality CsPbBr3 single crystals with dimensions up to 17 × 17 × 2 mm3. High yield growth of CsPbBr3 seed crystals is achieved by adopting 2-bromopropionic acid (2-BPA) in the precursor, which expands the metastable zone twice and reduces nucleation. The crystal growth environment, simulated with a specific laminar flow model, reveals the uniform concentration distribution is realized by suitable forced convection velocity, thereby substantially enhancing the stability of the crystal growth interface. The resulting CsPbBr3 single crystal exhibits low trap density states of 2.27 × 109 cm–3, leading to a high hole mobility of 377.63 cm2 V–1 s–1. Finally, a high sensitivity of 1.6 × 105 μC Gyair–1 cm–2 is realized under 50 kVp X-rays at 500 V cm–1. These results promote the application of large-sized CsPbBr3 single crystals in X-ray radiation detection as well as the reference and guidance for the growth of other perovskite single crystals.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Photonics
ACS Photonics NANOSCIENCE & NANOTECHNOLOGY-MATERIALS SCIENCE, MULTIDISCIPLINARY
CiteScore
11.90
自引率
5.70%
发文量
438
审稿时长
2.3 months
期刊介绍: Published as soon as accepted and summarized in monthly issues, ACS Photonics will publish Research Articles, Letters, Perspectives, and Reviews, to encompass the full scope of published research in this field.
×
