Shunshun Zhao, Sinian Yang, Xuanrui Huang, Xinwei Wang, Haojie Xu, Qing Ma, Yong Chen, Guoxiu Wang and Shimou Chen
{"title":"一种能使非水锌电池长寿命双离子继电器的janus型准固态电解质","authors":"Shunshun Zhao, Sinian Yang, Xuanrui Huang, Xinwei Wang, Haojie Xu, Qing Ma, Yong Chen, Guoxiu Wang and Shimou Chen","doi":"10.1039/D5EE03224E","DOIUrl":null,"url":null,"abstract":"<p >Quasi-solid-state or solid-state electrolytes are promising to address the long-standing challenges in zinc batteries, such as zinc dendrite formation and inevitable side reactions. Herein, we report an anhydrous Janus quasi-solid-state electrolyte that enables superior long-cycle performance of zinc batteries <em>via</em> a dual-ion relay mechanism. The spontaneously formed built-in electric field between PVDF-HFP and PMMA polymer layers induces an ionic double layer (IDL), which effectively addresses the inherent limitations in ionic transport kinetics within solid-state anhydrous systems operating under low-salt-concentration conditions. Benefiting from the electrolyte-constructed IDL and the derived organic outer–inorganic inner gradient SEI, effective ion rectification and transport have been achieved. Thus, Zn||Zn symmetric cells exhibited highly reversible zinc plating/stripping without dendrite growth, achieving cycle lifetimes exceeding 13 300 h at 25 °C and 3000 h at 60 °C. A full battery with a polyaniline cathode demonstrated exceptional stability (>10 000 cycles) and reliable operation from 25 °C to 80 °C. This innovative strategy significantly advances solid-state electrolyte design for zinc batteries and establishes a new paradigm for high-performance, safe, and durable energy storage systems.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 18","pages":" 8618-8630"},"PeriodicalIF":30.8000,"publicationDate":"2025-08-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A Janus-type quasi-solid-state electrolyte enabling dual-ion relay for long lifespan of nonaqueous zinc batteries\",\"authors\":\"Shunshun Zhao, Sinian Yang, Xuanrui Huang, Xinwei Wang, Haojie Xu, Qing Ma, Yong Chen, Guoxiu Wang and Shimou Chen\",\"doi\":\"10.1039/D5EE03224E\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Quasi-solid-state or solid-state electrolytes are promising to address the long-standing challenges in zinc batteries, such as zinc dendrite formation and inevitable side reactions. Herein, we report an anhydrous Janus quasi-solid-state electrolyte that enables superior long-cycle performance of zinc batteries <em>via</em> a dual-ion relay mechanism. The spontaneously formed built-in electric field between PVDF-HFP and PMMA polymer layers induces an ionic double layer (IDL), which effectively addresses the inherent limitations in ionic transport kinetics within solid-state anhydrous systems operating under low-salt-concentration conditions. Benefiting from the electrolyte-constructed IDL and the derived organic outer–inorganic inner gradient SEI, effective ion rectification and transport have been achieved. Thus, Zn||Zn symmetric cells exhibited highly reversible zinc plating/stripping without dendrite growth, achieving cycle lifetimes exceeding 13 300 h at 25 °C and 3000 h at 60 °C. A full battery with a polyaniline cathode demonstrated exceptional stability (>10 000 cycles) and reliable operation from 25 °C to 80 °C. This innovative strategy significantly advances solid-state electrolyte design for zinc batteries and establishes a new paradigm for high-performance, safe, and durable energy storage systems.</p>\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\" 18\",\"pages\":\" 8618-8630\"},\"PeriodicalIF\":30.8000,\"publicationDate\":\"2025-08-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee03224e\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee03224e","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
A Janus-type quasi-solid-state electrolyte enabling dual-ion relay for long lifespan of nonaqueous zinc batteries

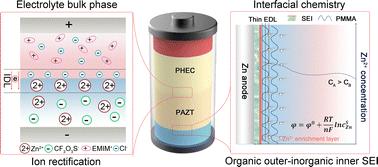

Quasi-solid-state or solid-state electrolytes are promising to address the long-standing challenges in zinc batteries, such as zinc dendrite formation and inevitable side reactions. Herein, we report an anhydrous Janus quasi-solid-state electrolyte that enables superior long-cycle performance of zinc batteries via a dual-ion relay mechanism. The spontaneously formed built-in electric field between PVDF-HFP and PMMA polymer layers induces an ionic double layer (IDL), which effectively addresses the inherent limitations in ionic transport kinetics within solid-state anhydrous systems operating under low-salt-concentration conditions. Benefiting from the electrolyte-constructed IDL and the derived organic outer–inorganic inner gradient SEI, effective ion rectification and transport have been achieved. Thus, Zn||Zn symmetric cells exhibited highly reversible zinc plating/stripping without dendrite growth, achieving cycle lifetimes exceeding 13 300 h at 25 °C and 3000 h at 60 °C. A full battery with a polyaniline cathode demonstrated exceptional stability (>10 000 cycles) and reliable operation from 25 °C to 80 °C. This innovative strategy significantly advances solid-state electrolyte design for zinc batteries and establishes a new paradigm for high-performance, safe, and durable energy storage systems.
