通过La掺杂使IrO2羟基化,提高了PEM水电解的析氧反应性能

IF 13.2 1区 工程技术 Q1 ENGINEERING, CHEMICAL
Binhua Zhou, Xuanzhi Liu, Longquan Li, Meihuan Liu, Hanxiao Liao, Yue Yu, Feng Liu, Pengfei Tan, Jun Pan
{"title":"通过La掺杂使IrO2羟基化,提高了PEM水电解的析氧反应性能","authors":"Binhua Zhou, Xuanzhi Liu, Longquan Li, Meihuan Liu, Hanxiao Liao, Yue Yu, Feng Liu, Pengfei Tan, Jun Pan","doi":"10.1016/j.cej.2025.166886","DOIUrl":null,"url":null,"abstract":"Rationally designing the catalyst structure is one of the important challenges to improve the activity and stability of IrO<sub>2</sub> in proton exchange membrane water electrolyzer (PEMWE). Herein, we designed a locally crystallized porous IrO<sub>2</sub> composed of crystalline nanoneedles and amorphous IrO<sub>x</sub> via La doping and L-cysteine regulation. L-Cysteine promotes the formation of crystalline nanowire structures of IrO<sub>2.</sub> The local amorphization induced by La doping helps to improve the adsorption capacity of OH groups, which promoting the transformation of Ir<sup>4+</sup> to Ir<sup>5+</sup>, and the interface between crystalline and amorphous phases enhances the catalytic layer by diminishing both mass transport loss and electronic resistance, which improves the OER performance with an overpotential of 245 mV@10 mA·cm<sup>−2</sup>. La doping can limit the dissolution of Ir sites in IrO<sub>2</sub>-9La, and the surface hydroxylated IrO<sub>2</sub>-9La follows the adsorbate evolution mechanism (AEM), which can be stable for more than 140 h at the current density of 10 mA/cm<sup>2</sup>. Moreover, the membrane electrode assembly in single-cell PEMWE based on local amorphization of IrO<sub>2</sub> exhibits high catalytic activity at ampere-level current densities (1.749 V@1 A·cm<sup>−2</sup>) and remains stable for more than 200 h. Our research results provide structural design ideas and methods for improving the activity and stability of IrO<sub>2</sub> under high currents.","PeriodicalId":270,"journal":{"name":"Chemical Engineering Journal","volume":"27 1","pages":""},"PeriodicalIF":13.2000,"publicationDate":"2025-08-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Hydroxylation of IrO2 via La doping enhances oxygen evolution reaction performance for PEM water electrolysis\",\"authors\":\"Binhua Zhou, Xuanzhi Liu, Longquan Li, Meihuan Liu, Hanxiao Liao, Yue Yu, Feng Liu, Pengfei Tan, Jun Pan\",\"doi\":\"10.1016/j.cej.2025.166886\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Rationally designing the catalyst structure is one of the important challenges to improve the activity and stability of IrO<sub>2</sub> in proton exchange membrane water electrolyzer (PEMWE). Herein, we designed a locally crystallized porous IrO<sub>2</sub> composed of crystalline nanoneedles and amorphous IrO<sub>x</sub> via La doping and L-cysteine regulation. L-Cysteine promotes the formation of crystalline nanowire structures of IrO<sub>2.</sub> The local amorphization induced by La doping helps to improve the adsorption capacity of OH groups, which promoting the transformation of Ir<sup>4+</sup> to Ir<sup>5+</sup>, and the interface between crystalline and amorphous phases enhances the catalytic layer by diminishing both mass transport loss and electronic resistance, which improves the OER performance with an overpotential of 245 mV@10 mA·cm<sup>−2</sup>. La doping can limit the dissolution of Ir sites in IrO<sub>2</sub>-9La, and the surface hydroxylated IrO<sub>2</sub>-9La follows the adsorbate evolution mechanism (AEM), which can be stable for more than 140 h at the current density of 10 mA/cm<sup>2</sup>. Moreover, the membrane electrode assembly in single-cell PEMWE based on local amorphization of IrO<sub>2</sub> exhibits high catalytic activity at ampere-level current densities (1.749 V@1 A·cm<sup>−2</sup>) and remains stable for more than 200 h. Our research results provide structural design ideas and methods for improving the activity and stability of IrO<sub>2</sub> under high currents.\",\"PeriodicalId\":270,\"journal\":{\"name\":\"Chemical Engineering Journal\",\"volume\":\"27 1\",\"pages\":\"\"},\"PeriodicalIF\":13.2000,\"publicationDate\":\"2025-08-06\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Chemical Engineering Journal\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://doi.org/10.1016/j.cej.2025.166886\",\"RegionNum\":1,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, CHEMICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Engineering Journal","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1016/j.cej.2025.166886","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}
引用次数: 0

摘要

合理设计催化剂结构是提高IrO2在质子交换膜水电解槽(PEMWE)中活性和稳定性的重要挑战之一。本文通过La掺杂和l -半胱氨酸调控,设计了由晶体纳米针和非晶态IrOx组成的局部结晶多孔IrO2。l -半胱氨酸促进了IrO2晶体纳米线结构的形成。La掺杂引起的局部非晶化有助于提高OH基团的吸附能力,促进Ir4+向Ir5+的转变,晶相和非晶相之间的界面通过降低质量输运损失和电子电阻来增强催化层,从而提高OER性能,过电位为245 mV@10 mA·cm−2。La掺杂可以限制IrO2-9La中Ir位点的溶解,表面羟基化的IrO2-9La遵循吸附物演化机制(AEM),在电流密度为10 mA/cm2时可稳定140 h以上。此外,基于IrO2局部非晶化的单电池PEMWE膜电极组件在安培级电流密度(1.749 V@1 A·cm−2)下表现出较高的催化活性,并在200 h以上保持稳定。我们的研究结果为提高IrO2在大电流下的活性和稳定性提供了结构设计思路和方法。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Hydroxylation of IrO2 via La doping enhances oxygen evolution reaction performance for PEM water electrolysis

Hydroxylation of IrO2 via La doping enhances oxygen evolution reaction performance for PEM water electrolysis

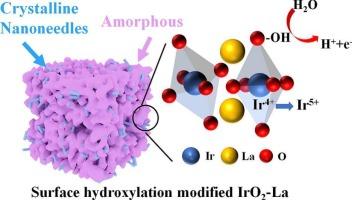

Rationally designing the catalyst structure is one of the important challenges to improve the activity and stability of IrO2 in proton exchange membrane water electrolyzer (PEMWE). Herein, we designed a locally crystallized porous IrO2 composed of crystalline nanoneedles and amorphous IrOx via La doping and L-cysteine regulation. L-Cysteine promotes the formation of crystalline nanowire structures of IrO2. The local amorphization induced by La doping helps to improve the adsorption capacity of OH groups, which promoting the transformation of Ir4+ to Ir5+, and the interface between crystalline and amorphous phases enhances the catalytic layer by diminishing both mass transport loss and electronic resistance, which improves the OER performance with an overpotential of 245 mV@10 mA·cm−2. La doping can limit the dissolution of Ir sites in IrO2-9La, and the surface hydroxylated IrO2-9La follows the adsorbate evolution mechanism (AEM), which can be stable for more than 140 h at the current density of 10 mA/cm2. Moreover, the membrane electrode assembly in single-cell PEMWE based on local amorphization of IrO2 exhibits high catalytic activity at ampere-level current densities (1.749 V@1 A·cm−2) and remains stable for more than 200 h. Our research results provide structural design ideas and methods for improving the activity and stability of IrO2 under high currents.
