化学键合单层界面增强了铅锡钙钛矿太阳能电池的热稳定性和效率

IF 35.4 1区材料科学 Q1 CHEMISTRY, PHYSICAL

Joule Pub Date : 2025-09-17 DOI:10.1016/j.joule.2025.102047

Abdulaziz S.R. Bati , Cheng Liu , Isaiah W. Gilley , Charles B. Musgrave III , Aidan Maxwell , Julian A. Steele , Yi Yang , Hao Chen , Haoyue Wan , Jian Xu , Eduardo Solano , Rui Zhang , Chuying Huang , Benjamin Rehl , Nikolaos Lempesis , Virginia Carnevali , Andrea Vezzosi , Lewei Zeng , Luke Grater , Muzhi Li , Edward H. Sargent

{"title":"化学键合单层界面增强了铅锡钙钛矿太阳能电池的热稳定性和效率","authors":"Abdulaziz S.R. Bati , Cheng Liu , Isaiah W. Gilley , Charles B. Musgrave III , Aidan Maxwell , Julian A. Steele , Yi Yang , Hao Chen , Haoyue Wan , Jian Xu , Eduardo Solano , Rui Zhang , Chuying Huang , Benjamin Rehl , Nikolaos Lempesis , Virginia Carnevali , Andrea Vezzosi , Lewei Zeng , Luke Grater , Muzhi Li , Edward H. Sargent","doi":"10.1016/j.joule.2025.102047","DOIUrl":null,"url":null,"abstract":"<div><div>Advances in narrow-band-gap (NBG) mixed lead-tin (Pb-Sn) perovskites have enabled increasingly efficient all-perovskite tandem solar cells, yet device stability remains limited by acidic poly(3,4-ethylenedioxythiophene) polystyrenesulfonate (PEDOT:PSS) hole transport materials (HTMs). Although carbazole-based self-assembled monolayers (SAMs) were considered as alternatives, they also degrade rapidly (T80 < 200 h) under external stresses. We identified weak chemical interaction at the transparent conductive oxide:SAM:perovskite interface and hypothesized that stronger binding could enhance stability. Introducing bifunctional SAMs with thiol groups established robust S-Pb chemical coordination, improving fracture energy by 30%. Replacing acidic phosphonic groups with milder carboxylic groups and optimizing SAM chain length led to selecting 16-mercaptohexadecanoic acid (16-MHDA), balancing coverage, energy alignment, and series resistance. This approach doubled photocarrier lifetime and increased thermal degradation resistance by 1.3×. Single-junction Pb-Sn cells achieved 24% power conversion efficiency (PCE) and encapsulated devices retained 80% efficiency after 680 h under 1-sun illumination at a heatsink temperature of 50°C.</div></div>","PeriodicalId":343,"journal":{"name":"Joule","volume":"9 9","pages":"Article 102047"},"PeriodicalIF":35.4000,"publicationDate":"2025-09-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A chemically bonded monolayer interface enables enhanced thermal stability and efficiency in Pb-Sn perovskite solar cells\",\"authors\":\"Abdulaziz S.R. Bati , Cheng Liu , Isaiah W. Gilley , Charles B. Musgrave III , Aidan Maxwell , Julian A. Steele , Yi Yang , Hao Chen , Haoyue Wan , Jian Xu , Eduardo Solano , Rui Zhang , Chuying Huang , Benjamin Rehl , Nikolaos Lempesis , Virginia Carnevali , Andrea Vezzosi , Lewei Zeng , Luke Grater , Muzhi Li , Edward H. Sargent\",\"doi\":\"10.1016/j.joule.2025.102047\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Advances in narrow-band-gap (NBG) mixed lead-tin (Pb-Sn) perovskites have enabled increasingly efficient all-perovskite tandem solar cells, yet device stability remains limited by acidic poly(3,4-ethylenedioxythiophene) polystyrenesulfonate (PEDOT:PSS) hole transport materials (HTMs). Although carbazole-based self-assembled monolayers (SAMs) were considered as alternatives, they also degrade rapidly (T80 < 200 h) under external stresses. We identified weak chemical interaction at the transparent conductive oxide:SAM:perovskite interface and hypothesized that stronger binding could enhance stability. Introducing bifunctional SAMs with thiol groups established robust S-Pb chemical coordination, improving fracture energy by 30%. Replacing acidic phosphonic groups with milder carboxylic groups and optimizing SAM chain length led to selecting 16-mercaptohexadecanoic acid (16-MHDA), balancing coverage, energy alignment, and series resistance. This approach doubled photocarrier lifetime and increased thermal degradation resistance by 1.3×. Single-junction Pb-Sn cells achieved 24% power conversion efficiency (PCE) and encapsulated devices retained 80% efficiency after 680 h under 1-sun illumination at a heatsink temperature of 50°C.</div></div>\",\"PeriodicalId\":343,\"journal\":{\"name\":\"Joule\",\"volume\":\"9 9\",\"pages\":\"Article 102047\"},\"PeriodicalIF\":35.4000,\"publicationDate\":\"2025-09-17\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Joule\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S2542435125002284\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Joule","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2542435125002284","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}

引用次数: 0

摘要

窄带隙（NBG）混合铅锡（Pb-Sn）钙钛矿的进展使得全钙钛矿串联太阳能电池的效率越来越高，但器件的稳定性仍然受到酸性聚（3,4-乙烯二氧噻吩）聚苯乙烯磺酸盐（PEDOT:PSS）空穴传输材料（HTMs）的限制。尽管基于咔唑的自组装单层膜（sam）被认为是一种替代品，但它们也会迅速降解(T80 <；200h)外应力作用下。我们在透明导电氧化物：SAM：钙钛矿界面上发现了弱的化学相互作用，并假设更强的结合可以提高稳定性。引入巯基双功能SAMs建立了稳健的S-Pb化学配位，将裂缝能提高30%。用较温和的羧基取代酸性膦基，并优化SAM链长，从而选择16-巯基十六酸（16-MHDA），平衡覆盖、能量排列和串联抗性。这种方法使光载流子寿命增加了一倍，并使热降解阻力提高了1.3倍。单结铅锡电池的功率转换效率（PCE）达到24%，封装器件在50°C的散热器温度下，在1个太阳照射680小时后仍保持80%的效率。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

A chemically bonded monolayer interface enables enhanced thermal stability and efficiency in Pb-Sn perovskite solar cells

查看原文本刊更多论文

A chemically bonded monolayer interface enables enhanced thermal stability and efficiency in Pb-Sn perovskite solar cells

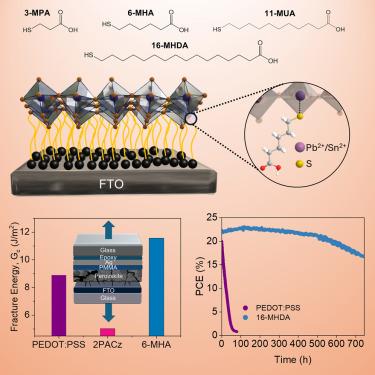

Advances in narrow-band-gap (NBG) mixed lead-tin (Pb-Sn) perovskites have enabled increasingly efficient all-perovskite tandem solar cells, yet device stability remains limited by acidic poly(3,4-ethylenedioxythiophene) polystyrenesulfonate (PEDOT:PSS) hole transport materials (HTMs). Although carbazole-based self-assembled monolayers (SAMs) were considered as alternatives, they also degrade rapidly (T80 < 200 h) under external stresses. We identified weak chemical interaction at the transparent conductive oxide:SAM:perovskite interface and hypothesized that stronger binding could enhance stability. Introducing bifunctional SAMs with thiol groups established robust S-Pb chemical coordination, improving fracture energy by 30%. Replacing acidic phosphonic groups with milder carboxylic groups and optimizing SAM chain length led to selecting 16-mercaptohexadecanoic acid (16-MHDA), balancing coverage, energy alignment, and series resistance. This approach doubled photocarrier lifetime and increased thermal degradation resistance by 1.3×. Single-junction Pb-Sn cells achieved 24% power conversion efficiency (PCE) and encapsulated devices retained 80% efficiency after 680 h under 1-sun illumination at a heatsink temperature of 50°C.
