Maria Salinas-García, Pablo Calatrava-Arrizabalaga, Martina Ciardi, Silvia Villaró-Cos, Tomás Lafarga
{"title":"小球藻商业化生产肥料培养基的开发与再利用。","authors":"Maria Salinas-García, Pablo Calatrava-Arrizabalaga, Martina Ciardi, Silvia Villaró-Cos, Tomás Lafarga","doi":"10.1038/s41598-025-08320-8","DOIUrl":null,"url":null,"abstract":"<p><p>Microalgae-based processes represent an innovative productive approach in the context of the circular bioeconomy. However, challenges such as the optimisation of production processes need to be addressed for industrial-scale feasibility. In this work, a novel culture medium was developed and specifically designed for Chlorella sorokiniana, a strain with potential for human food consumption. A range of nitrogen sources were tested (nitrate, nitrite, ammonium and urea), with sodium nitrate yielding the fastest growth rate. The optimisation was done in bubble columns with controlled pH (8.0), temperature (25 °C), irradiance (950 µmol m<sup>-2</sup> s<sup>-1</sup>) and aeration (0.2 v/v/min). The nitrogen-to-phosphorus (N:P) molar ratio was then optimised (optimum = 21) and further reductions in macro- and micro-nutrient levels showed no productivity decline, even with micronutrient levels reduced by up to 80%. The final optimised medium resulted in 1.25 g L<sup>-1</sup> NaNO<sub>3</sub>, 0.12 g L<sup>-1</sup> K<sub>2</sub>HPO<sub>4</sub>, 0.2 g L<sup>-1</sup> MgSO<sub>4</sub>, 0.1 g L<sup>-1</sup> CaCl<sub>2</sub> and 0.005 g L<sup>-1</sup> micronutrients commercial mixture, which produced approximately 4 g L<sup>-1</sup> biomass at a rate of 0.3 g L<sup>-1</sup> day<sup>-1</sup>. Then, the exhausted culture medium was recirculated back into the system during semi-continuous cultivation to reduce both water and nutrient requirements. Biomass concentration decreased as the proportion of supernatant recirculation increased, from 3.0 g L<sup>-1</sup> without recirculation to 2.2 g L<sup>-1</sup> with 70% of supernatant recirculation. Measurements of turbidity, viscosity, total organic carbon and total aerobic mesophylls of the exhausted media highlighted the need for pre-treatment strategies to mitigate the effects of reusing the exhausted culture medium on growth. Future research will refine these strategies to balance cost-effectiveness, productivity, and sustainability in industrial microalgae production.</p>","PeriodicalId":21811,"journal":{"name":"Scientific Reports","volume":"15 1","pages":"23891"},"PeriodicalIF":3.9000,"publicationDate":"2025-07-04","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12227526/pdf/","citationCount":"0","resultStr":"{\"title\":\"Development and reutilisation of a fertiliser-based culture medium for the commercial production of Chlorella sorokiniana.\",\"authors\":\"Maria Salinas-García, Pablo Calatrava-Arrizabalaga, Martina Ciardi, Silvia Villaró-Cos, Tomás Lafarga\",\"doi\":\"10.1038/s41598-025-08320-8\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Microalgae-based processes represent an innovative productive approach in the context of the circular bioeconomy. However, challenges such as the optimisation of production processes need to be addressed for industrial-scale feasibility. In this work, a novel culture medium was developed and specifically designed for Chlorella sorokiniana, a strain with potential for human food consumption. A range of nitrogen sources were tested (nitrate, nitrite, ammonium and urea), with sodium nitrate yielding the fastest growth rate. The optimisation was done in bubble columns with controlled pH (8.0), temperature (25 °C), irradiance (950 µmol m<sup>-2</sup> s<sup>-1</sup>) and aeration (0.2 v/v/min). The nitrogen-to-phosphorus (N:P) molar ratio was then optimised (optimum = 21) and further reductions in macro- and micro-nutrient levels showed no productivity decline, even with micronutrient levels reduced by up to 80%. The final optimised medium resulted in 1.25 g L<sup>-1</sup> NaNO<sub>3</sub>, 0.12 g L<sup>-1</sup> K<sub>2</sub>HPO<sub>4</sub>, 0.2 g L<sup>-1</sup> MgSO<sub>4</sub>, 0.1 g L<sup>-1</sup> CaCl<sub>2</sub> and 0.005 g L<sup>-1</sup> micronutrients commercial mixture, which produced approximately 4 g L<sup>-1</sup> biomass at a rate of 0.3 g L<sup>-1</sup> day<sup>-1</sup>. Then, the exhausted culture medium was recirculated back into the system during semi-continuous cultivation to reduce both water and nutrient requirements. Biomass concentration decreased as the proportion of supernatant recirculation increased, from 3.0 g L<sup>-1</sup> without recirculation to 2.2 g L<sup>-1</sup> with 70% of supernatant recirculation. Measurements of turbidity, viscosity, total organic carbon and total aerobic mesophylls of the exhausted media highlighted the need for pre-treatment strategies to mitigate the effects of reusing the exhausted culture medium on growth. Future research will refine these strategies to balance cost-effectiveness, productivity, and sustainability in industrial microalgae production.</p>\",\"PeriodicalId\":21811,\"journal\":{\"name\":\"Scientific Reports\",\"volume\":\"15 1\",\"pages\":\"23891\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2025-07-04\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12227526/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Scientific Reports\",\"FirstCategoryId\":\"103\",\"ListUrlMain\":\"https://doi.org/10.1038/s41598-025-08320-8\",\"RegionNum\":2,\"RegionCategory\":\"综合性期刊\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MULTIDISCIPLINARY SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Scientific Reports","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41598-025-08320-8","RegionNum":2,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}
引用次数: 0
摘要
在循环生物经济的背景下,以微藻为基础的工艺是一种创新的生产方法。然而,为了实现工业规模的可行性,需要解决诸如生产过程优化等挑战。在这项工作中,开发并专门设计了一种新的培养基,用于人类食品消费的小球藻。对不同的氮源(硝酸盐、亚硝酸盐、铵和尿素)进行了试验,其中硝酸钠的生长速度最快。在控制pH(8.0)、温度(25°C)、辐照度(950µmol m-2 s-1)和曝气(0.2 v/v/min)的气泡柱中进行优化。然后优化氮磷(N:P)摩尔比(最优= 21),宏观和微量营养水平的进一步降低没有显示生产力下降,即使微量营养水平降低高达80%。最终优化培养基为1.25 g L-1 NaNO3、0.12 g L-1 K2HPO4、0.2 g L-1 MgSO4、0.1 g L-1 CaCl2和0.005 g L-1微量营养素商业混合物,以0.3 g L-1 day-1的速率产生约4 g L-1生物量。然后,在半连续培养过程中,将耗尽的培养基再循环回系统中,以减少对水和养分的需求。生物量浓度随着上清再循环比例的增加而降低,从不再循环的3.0 g L-1降低到70%上清再循环时的2.2 g L-1。对废培养基的浊度、黏度、总有机碳和总需氧叶肉的测量强调了预处理策略的必要性,以减轻重复使用废培养基对生长的影响。未来的研究将完善这些策略,以平衡工业微藻生产的成本效益、生产力和可持续性。
Development and reutilisation of a fertiliser-based culture medium for the commercial production of Chlorella sorokiniana.

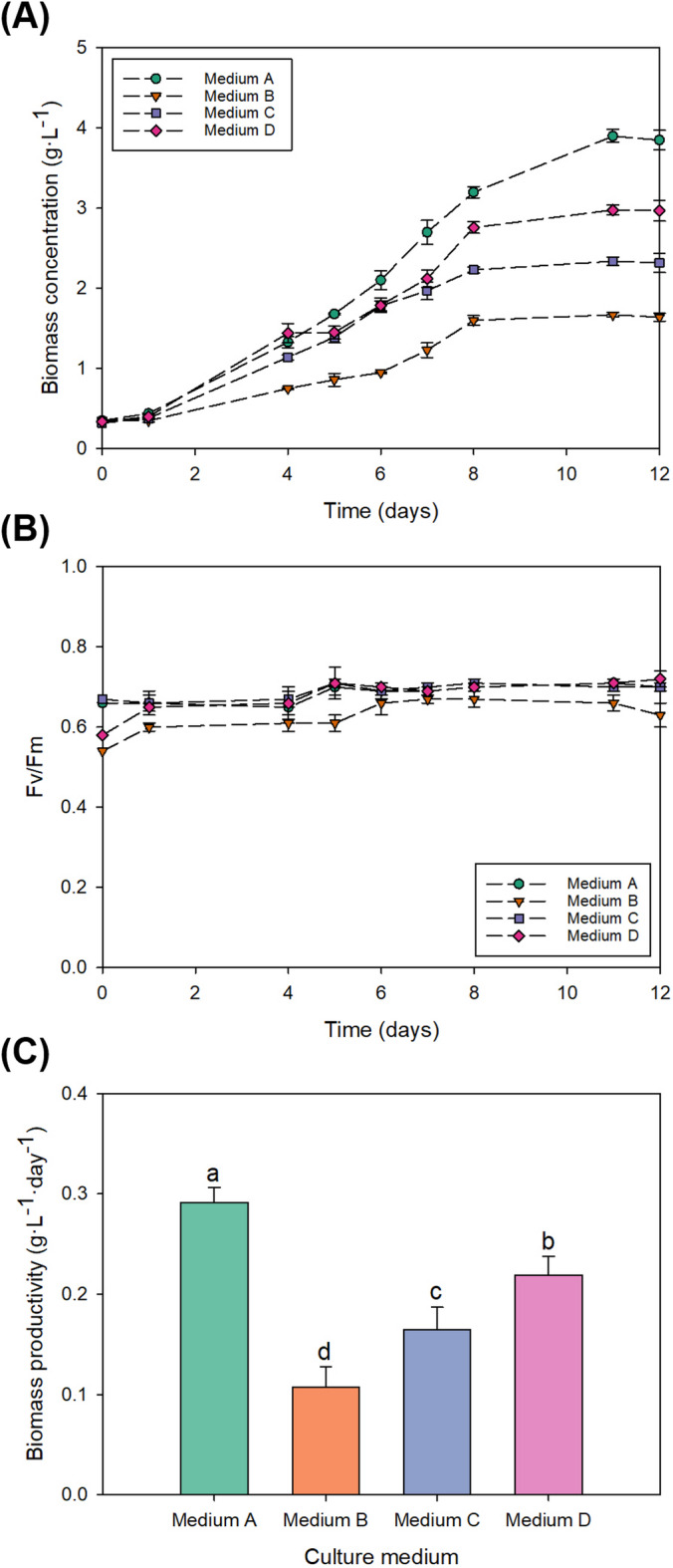

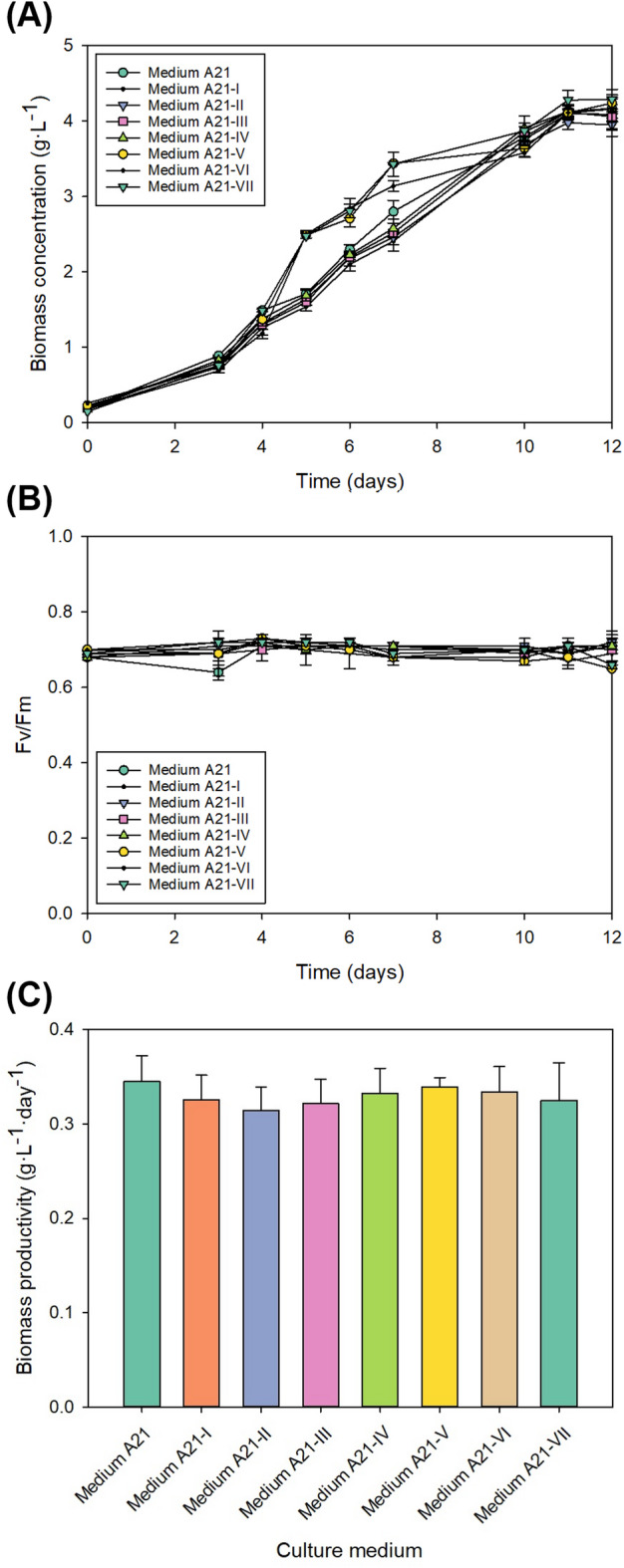

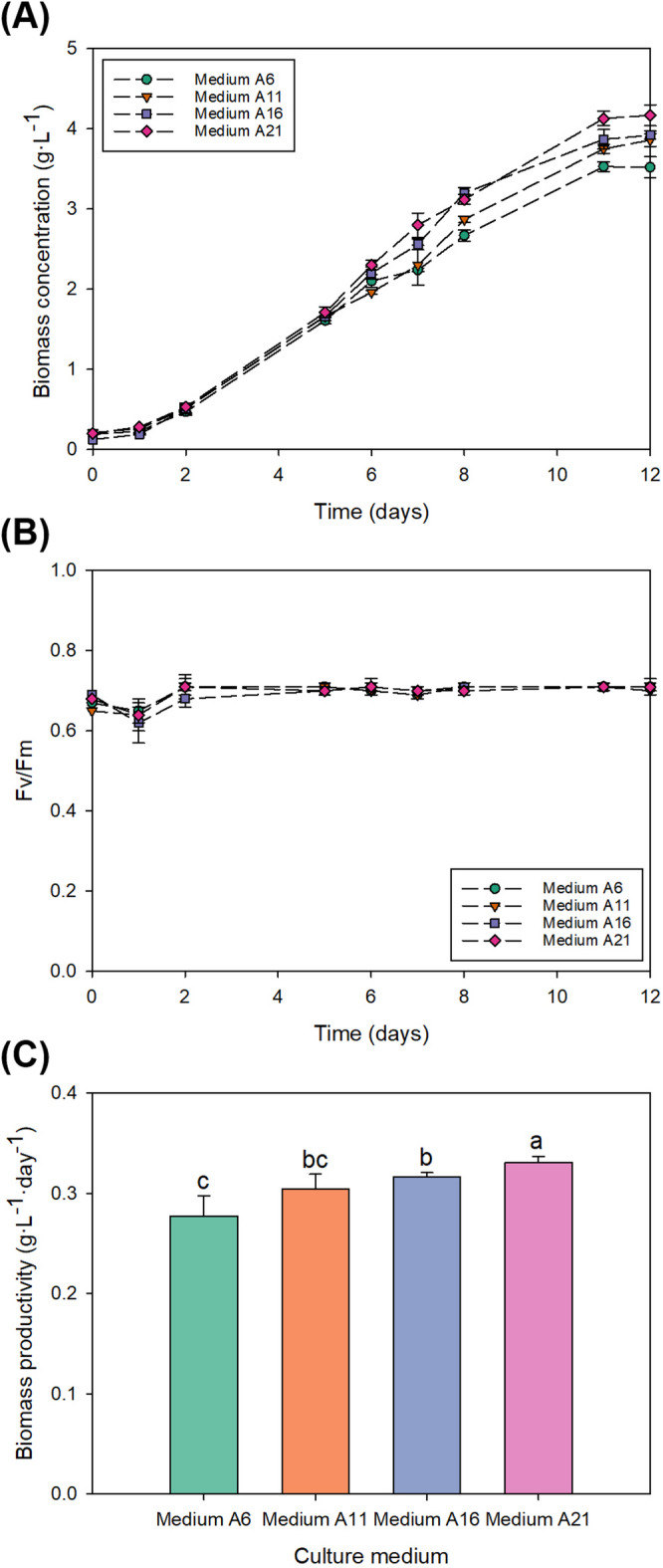

Microalgae-based processes represent an innovative productive approach in the context of the circular bioeconomy. However, challenges such as the optimisation of production processes need to be addressed for industrial-scale feasibility. In this work, a novel culture medium was developed and specifically designed for Chlorella sorokiniana, a strain with potential for human food consumption. A range of nitrogen sources were tested (nitrate, nitrite, ammonium and urea), with sodium nitrate yielding the fastest growth rate. The optimisation was done in bubble columns with controlled pH (8.0), temperature (25 °C), irradiance (950 µmol m-2 s-1) and aeration (0.2 v/v/min). The nitrogen-to-phosphorus (N:P) molar ratio was then optimised (optimum = 21) and further reductions in macro- and micro-nutrient levels showed no productivity decline, even with micronutrient levels reduced by up to 80%. The final optimised medium resulted in 1.25 g L-1 NaNO3, 0.12 g L-1 K2HPO4, 0.2 g L-1 MgSO4, 0.1 g L-1 CaCl2 and 0.005 g L-1 micronutrients commercial mixture, which produced approximately 4 g L-1 biomass at a rate of 0.3 g L-1 day-1. Then, the exhausted culture medium was recirculated back into the system during semi-continuous cultivation to reduce both water and nutrient requirements. Biomass concentration decreased as the proportion of supernatant recirculation increased, from 3.0 g L-1 without recirculation to 2.2 g L-1 with 70% of supernatant recirculation. Measurements of turbidity, viscosity, total organic carbon and total aerobic mesophylls of the exhausted media highlighted the need for pre-treatment strategies to mitigate the effects of reusing the exhausted culture medium on growth. Future research will refine these strategies to balance cost-effectiveness, productivity, and sustainability in industrial microalgae production.
