利用互补光谱法和光谱技术对商用可生物降解农用塑料地膜的未知化学成分进行表征

IF 3.3 3区 化学 Q2 CHEMISTRY, ANALYTICAL
Analyst Pub Date : 2025-07-03 DOI:10.1039/D5AN00423C
Charlie Monkley, Michaela K. Reay, Helen L. Whelton, Richard P. Evershed and Charlotte E. M. Lloyd
{"title":"利用互补光谱法和光谱技术对商用可生物降解农用塑料地膜的未知化学成分进行表征","authors":"Charlie Monkley, Michaela K. Reay, Helen L. Whelton, Richard P. Evershed and Charlotte E. M. Lloyd","doi":"10.1039/D5AN00423C","DOIUrl":null,"url":null,"abstract":"<p >Biodegradable polyester mulch films are a viable alternative for use in agriculture to polyolefin-based films, offering reduced long-term microplastic pollution in agroecosytems with comparable protections for food security. However, these films carry diverse organic additives and non-intentionally added substances (NIASs), representing an underexplored source of anthropogenic chemicals in agroecosystems. Comprehensive chemical characterisation of these films is critical but hindered by restrictions on revealing proprietary formulations. This study presents a non-targeted screening (NTS) workflow employing multiple complementary analytical techniques to elucidate the organic composition of a polylactic acid (PLA)/polybutylene adipate-<em>co</em>-terephthalate (PBAT) mulch film. <small><sup>1</sup></small>H nuclear magnetic resonance (NMR) quantified polyester contributions to the blend and revealed an unreported polybutylene sebacate (PBSe) component, likely from polybutylene sebacate terephthalate (PBSeT). Dissolution-precipitation extraction of the film followed by gas chromatography–mass spectrometry (GC-MS) and GC-flame ionisation detection (GC-FID) identified key additives in the extracted soluble fraction, including acetyl tributyl citrate (ATBC) plasticiser (4210 ± 135 μg g<small><sup>−1</sup></small>), and 8 cyclic oligoesters up to dimers. High-performance liquid chromatography-Orbitrap-mass spectrometry (HPLC-Orbitrap-MS) and direct infusion (DI)-Orbitrap-MS expanded oligoester detection to 83 additional components beyond the analytical window of GC-MS. The detailed oligoester profiles underscore the need to apply this workflow to biodegradable mulch films from diverse commercial sources and food industry applications to assess their broader chemical variability. These methodologies offer critical tools for the life cycle assessment of biodegradable agricultural plastic mulch films, advancing our understanding of the environmental impact and safety of these new materials.</p>","PeriodicalId":63,"journal":{"name":"Analyst","volume":" 15","pages":" 3319-3332"},"PeriodicalIF":3.3000,"publicationDate":"2025-07-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2025/an/d5an00423c?page=search","citationCount":"0","resultStr":"{\"title\":\"Characterisation of the unknown chemical composition of a commercial biodegradable agricultural plastic mulch film using complementary spectrometric and spectroscopic techniques†\",\"authors\":\"Charlie Monkley, Michaela K. Reay, Helen L. Whelton, Richard P. Evershed and Charlotte E. M. Lloyd\",\"doi\":\"10.1039/D5AN00423C\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Biodegradable polyester mulch films are a viable alternative for use in agriculture to polyolefin-based films, offering reduced long-term microplastic pollution in agroecosytems with comparable protections for food security. However, these films carry diverse organic additives and non-intentionally added substances (NIASs), representing an underexplored source of anthropogenic chemicals in agroecosystems. Comprehensive chemical characterisation of these films is critical but hindered by restrictions on revealing proprietary formulations. This study presents a non-targeted screening (NTS) workflow employing multiple complementary analytical techniques to elucidate the organic composition of a polylactic acid (PLA)/polybutylene adipate-<em>co</em>-terephthalate (PBAT) mulch film. <small><sup>1</sup></small>H nuclear magnetic resonance (NMR) quantified polyester contributions to the blend and revealed an unreported polybutylene sebacate (PBSe) component, likely from polybutylene sebacate terephthalate (PBSeT). Dissolution-precipitation extraction of the film followed by gas chromatography–mass spectrometry (GC-MS) and GC-flame ionisation detection (GC-FID) identified key additives in the extracted soluble fraction, including acetyl tributyl citrate (ATBC) plasticiser (4210 ± 135 μg g<small><sup>−1</sup></small>), and 8 cyclic oligoesters up to dimers. High-performance liquid chromatography-Orbitrap-mass spectrometry (HPLC-Orbitrap-MS) and direct infusion (DI)-Orbitrap-MS expanded oligoester detection to 83 additional components beyond the analytical window of GC-MS. The detailed oligoester profiles underscore the need to apply this workflow to biodegradable mulch films from diverse commercial sources and food industry applications to assess their broader chemical variability. These methodologies offer critical tools for the life cycle assessment of biodegradable agricultural plastic mulch films, advancing our understanding of the environmental impact and safety of these new materials.</p>\",\"PeriodicalId\":63,\"journal\":{\"name\":\"Analyst\",\"volume\":\" 15\",\"pages\":\" 3319-3332\"},\"PeriodicalIF\":3.3000,\"publicationDate\":\"2025-07-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.rsc.org/en/content/articlepdf/2025/an/d5an00423c?page=search\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Analyst\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/an/d5an00423c\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, ANALYTICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Analyst","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/an/d5an00423c","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}
引用次数: 0

摘要

可生物降解聚酯地膜是一种可行的农业替代聚烯烃薄膜,可减少农业生态系统中的长期微塑料污染,并对粮食安全提供类似的保护。然而,这些薄膜携带多种有机添加剂和非故意添加物质(NIASs),代表了农业生态系统中未被开发的人为化学物质来源。对这些薄膜进行全面的化学表征是至关重要的,但由于披露专有配方的限制而受到阻碍。本研究提出了一种非靶向筛选(NTS)工作流程,采用多种互补分析技术来阐明聚乳酸(PLA)/聚己二酸丁二酯(PBAT)地膜的有机组成。1H核磁共振(NMR)量化了聚酯对共混物的贡献,并发现了一种未报道的聚癸二酸丁烯(PBSe)成分,可能来自聚癸二酸对苯二甲酸丁烯(PBSeT)。通过气相色谱-质谱联用(GC-MS)和气相色谱-火焰电离检测(GC-FID)对提取的可溶部分进行溶解-沉淀萃取,鉴定了主要添加剂,包括柠檬酸乙酰三丁酯(ATBC)增塑剂(4210±135µg g−¹)和8个环状低聚酯(最多可达二聚体)。高效液相色谱-轨道谱-质谱(HPLC-Orbitrap-MS)和直接输注(DI)-轨道谱- ms将低聚酯检测扩展到83个额外的组分,超出了GC-MS的分析窗口。详细的低聚酯概况强调需要将此工作流程应用于来自不同商业来源和食品工业应用的可生物降解地膜,以评估其更广泛的化学变异性。这些方法为生物可降解农用地膜的生命周期评估提供了关键工具,促进了我们对这些新材料的环境影响和安全性的理解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Characterisation of the unknown chemical composition of a commercial biodegradable agricultural plastic mulch film using complementary spectrometric and spectroscopic techniques†

Characterisation of the unknown chemical composition of a commercial biodegradable agricultural plastic mulch film using complementary spectrometric and spectroscopic techniques†

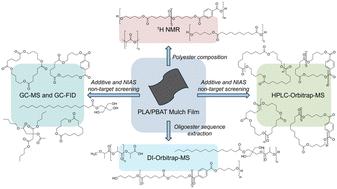

Biodegradable polyester mulch films are a viable alternative for use in agriculture to polyolefin-based films, offering reduced long-term microplastic pollution in agroecosytems with comparable protections for food security. However, these films carry diverse organic additives and non-intentionally added substances (NIASs), representing an underexplored source of anthropogenic chemicals in agroecosystems. Comprehensive chemical characterisation of these films is critical but hindered by restrictions on revealing proprietary formulations. This study presents a non-targeted screening (NTS) workflow employing multiple complementary analytical techniques to elucidate the organic composition of a polylactic acid (PLA)/polybutylene adipate-co-terephthalate (PBAT) mulch film. 1H nuclear magnetic resonance (NMR) quantified polyester contributions to the blend and revealed an unreported polybutylene sebacate (PBSe) component, likely from polybutylene sebacate terephthalate (PBSeT). Dissolution-precipitation extraction of the film followed by gas chromatography–mass spectrometry (GC-MS) and GC-flame ionisation detection (GC-FID) identified key additives in the extracted soluble fraction, including acetyl tributyl citrate (ATBC) plasticiser (4210 ± 135 μg g−1), and 8 cyclic oligoesters up to dimers. High-performance liquid chromatography-Orbitrap-mass spectrometry (HPLC-Orbitrap-MS) and direct infusion (DI)-Orbitrap-MS expanded oligoester detection to 83 additional components beyond the analytical window of GC-MS. The detailed oligoester profiles underscore the need to apply this workflow to biodegradable mulch films from diverse commercial sources and food industry applications to assess their broader chemical variability. These methodologies offer critical tools for the life cycle assessment of biodegradable agricultural plastic mulch films, advancing our understanding of the environmental impact and safety of these new materials.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Analyst
Analyst 化学-分析化学
CiteScore
7.80
自引率
4.80%
发文量
636
审稿时长
1.9 months
期刊介绍: "Analyst" journal is the home of premier fundamental discoveries, inventions and applications in the analytical and bioanalytical sciences.
×
