Qingming Hou, Hongyan Cao, Yu Xia, Yekai Cai, Xinyi Chen, Haiyang Hong, Kenan Xu, Kang Huang* and Zhi Xu,
{"title":"刚性框架约束膜：长寿命多硫/多碘氧化还原液流电池的关键。","authors":"Qingming Hou, Hongyan Cao, Yu Xia, Yekai Cai, Xinyi Chen, Haiyang Hong, Kenan Xu, Kang Huang* and Zhi Xu, ","doi":"10.1021/acsami.5c07898","DOIUrl":null,"url":null,"abstract":"<p >The emerging polysulfide/polyiodide redox flow batteries (PSIBs) attract much attention owing to their high capacity and low cost. However, severe polysulfide/polyiodide crossover and insufficient cycle life caused by membrane swelling impede their large-scale applications. Herein, we constructed a rigid framework-constrained membrane, where rigid carbonylated polymer of intrinsic microporosity (cPIM-1) chains were introduced to bind the movement of the flexible perfluorosulfonic acid (PFSA) polymer chain. Quartz crystal microbalance and positron annihilation techniques demonstrated optimizing the PFSA/cPIM (P/cPIM) composite membrane structure and channel size. In the PSIB test, the battery with the P/cPIM membrane operated stably for over 780 h, which significantly improved over the 165 h recorded for the PFSA membrane.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"17 28","pages":"40508–40516"},"PeriodicalIF":8.2000,"publicationDate":"2025-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Rigid Framework-Constrained Membranes: A Key to Long-Life Polysulfide/Polyiodide Redox Flow Batteries\",\"authors\":\"Qingming Hou, Hongyan Cao, Yu Xia, Yekai Cai, Xinyi Chen, Haiyang Hong, Kenan Xu, Kang Huang* and Zhi Xu, \",\"doi\":\"10.1021/acsami.5c07898\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The emerging polysulfide/polyiodide redox flow batteries (PSIBs) attract much attention owing to their high capacity and low cost. However, severe polysulfide/polyiodide crossover and insufficient cycle life caused by membrane swelling impede their large-scale applications. Herein, we constructed a rigid framework-constrained membrane, where rigid carbonylated polymer of intrinsic microporosity (cPIM-1) chains were introduced to bind the movement of the flexible perfluorosulfonic acid (PFSA) polymer chain. Quartz crystal microbalance and positron annihilation techniques demonstrated optimizing the PFSA/cPIM (P/cPIM) composite membrane structure and channel size. In the PSIB test, the battery with the P/cPIM membrane operated stably for over 780 h, which significantly improved over the 165 h recorded for the PFSA membrane.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"17 28\",\"pages\":\"40508–40516\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-07-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsami.5c07898\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsami.5c07898","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
Rigid Framework-Constrained Membranes: A Key to Long-Life Polysulfide/Polyiodide Redox Flow Batteries

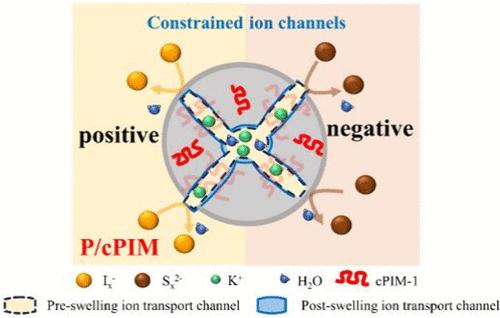

The emerging polysulfide/polyiodide redox flow batteries (PSIBs) attract much attention owing to their high capacity and low cost. However, severe polysulfide/polyiodide crossover and insufficient cycle life caused by membrane swelling impede their large-scale applications. Herein, we constructed a rigid framework-constrained membrane, where rigid carbonylated polymer of intrinsic microporosity (cPIM-1) chains were introduced to bind the movement of the flexible perfluorosulfonic acid (PFSA) polymer chain. Quartz crystal microbalance and positron annihilation techniques demonstrated optimizing the PFSA/cPIM (P/cPIM) composite membrane structure and channel size. In the PSIB test, the battery with the P/cPIM membrane operated stably for over 780 h, which significantly improved over the 165 h recorded for the PFSA membrane.
