提高钙钛矿太阳能电池效率和稳定性的交联多功能双层聚合物缓冲液

IF 15.7 1区 综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES
Yuheng Li, Lin Li, Haipeng Zeng, Chunxiang Lan, Shaomin Yang, Ziwei Zheng, Miaomiao Zeng, Yingying Shi, Kai Gao, Lianmeng Cui, Rui Guo, Jing Guo, Bin Hu, Yaoguang Rong, Haibing Xie, Xiong Li
{"title":"提高钙钛矿太阳能电池效率和稳定性的交联多功能双层聚合物缓冲液","authors":"Yuheng Li, Lin Li, Haipeng Zeng, Chunxiang Lan, Shaomin Yang, Ziwei Zheng, Miaomiao Zeng, Yingying Shi, Kai Gao, Lianmeng Cui, Rui Guo, Jing Guo, Bin Hu, Yaoguang Rong, Haibing Xie, Xiong Li","doi":"10.1038/s41467-025-61294-z","DOIUrl":null,"url":null,"abstract":"<p>Addressing the stability challenges induced by the chemical interactions between metal electrodes and perovskite components is essential for high-performance perovskite solar cells (PSCs). Herein, we design a bilayer multifunctional polymer buffer composed of polyethyleneimine (PEI) and 2-((2-methyl-3-(2-((2-methylbutanoyl)oxy)ethoxy)−3-oxopropyl)thio)−3-(methylthio)succinic acid (PDMEA), inserting into the interface of metal electrode/transporting layer. This buffer mitigates metal atom diffusion by forming thioether-metal-carboxyl chelation rings between the metal layer and PDMEA. Additionally, it facilitates efficient electron transport and suppresses interfacial recombination through an in-situ cross-linking between the carboxyl groups of PDMEA and the amine groups of PEI based on Lewis acid-base reaction. Consequently, this design effectively reduces undesirable metal/ion interdiffusion during device fabrication and operation. The resulting PSCs with the PEI/PDMEA buffer achieve certified power conversion efficiencies (PCEs) of 26.46% (0.1 cm<sup>2</sup>) and 24.70% (1.01 cm<sup>2</sup>), demonstrating enhanced thermal and operational stability. We anticipate that this buffer design strategy, which forms bilayer polymer buffers via cross-linking of polymers with distinct functionalities, will inspire the rational design of robust buffers for highly efficient and stable PSCs and other electronic devices.</p>","PeriodicalId":19066,"journal":{"name":"Nature Communications","volume":"26 1","pages":""},"PeriodicalIF":15.7000,"publicationDate":"2025-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Cross-linked multifunctional bilayer polymer buffer for enhanced efficiency and stability in perovskite solar cells\",\"authors\":\"Yuheng Li, Lin Li, Haipeng Zeng, Chunxiang Lan, Shaomin Yang, Ziwei Zheng, Miaomiao Zeng, Yingying Shi, Kai Gao, Lianmeng Cui, Rui Guo, Jing Guo, Bin Hu, Yaoguang Rong, Haibing Xie, Xiong Li\",\"doi\":\"10.1038/s41467-025-61294-z\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Addressing the stability challenges induced by the chemical interactions between metal electrodes and perovskite components is essential for high-performance perovskite solar cells (PSCs). Herein, we design a bilayer multifunctional polymer buffer composed of polyethyleneimine (PEI) and 2-((2-methyl-3-(2-((2-methylbutanoyl)oxy)ethoxy)−3-oxopropyl)thio)−3-(methylthio)succinic acid (PDMEA), inserting into the interface of metal electrode/transporting layer. This buffer mitigates metal atom diffusion by forming thioether-metal-carboxyl chelation rings between the metal layer and PDMEA. Additionally, it facilitates efficient electron transport and suppresses interfacial recombination through an in-situ cross-linking between the carboxyl groups of PDMEA and the amine groups of PEI based on Lewis acid-base reaction. Consequently, this design effectively reduces undesirable metal/ion interdiffusion during device fabrication and operation. The resulting PSCs with the PEI/PDMEA buffer achieve certified power conversion efficiencies (PCEs) of 26.46% (0.1 cm<sup>2</sup>) and 24.70% (1.01 cm<sup>2</sup>), demonstrating enhanced thermal and operational stability. We anticipate that this buffer design strategy, which forms bilayer polymer buffers via cross-linking of polymers with distinct functionalities, will inspire the rational design of robust buffers for highly efficient and stable PSCs and other electronic devices.</p>\",\"PeriodicalId\":19066,\"journal\":{\"name\":\"Nature Communications\",\"volume\":\"26 1\",\"pages\":\"\"},\"PeriodicalIF\":15.7000,\"publicationDate\":\"2025-07-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nature Communications\",\"FirstCategoryId\":\"103\",\"ListUrlMain\":\"https://doi.org/10.1038/s41467-025-61294-z\",\"RegionNum\":1,\"RegionCategory\":\"综合性期刊\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MULTIDISCIPLINARY SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nature Communications","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41467-025-61294-z","RegionNum":1,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}
引用次数: 0

摘要

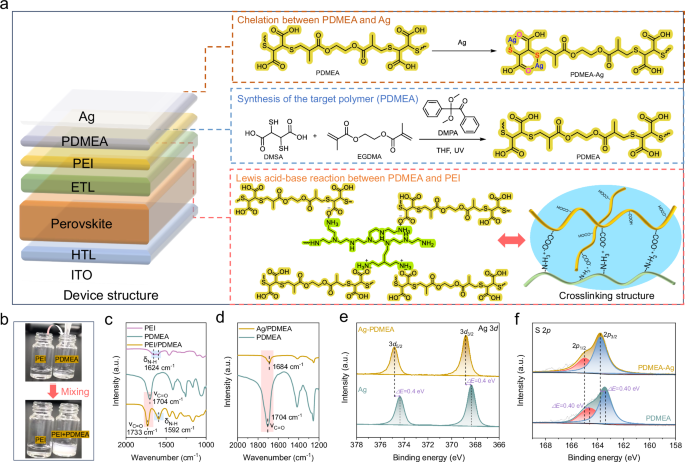

解决金属电极和钙钛矿组分之间化学相互作用引起的稳定性挑战对于高性能钙钛矿太阳能电池(PSCs)至关重要。本文设计了一种由聚乙烯亚胺(PEI)和2-(2-甲基-3-(2-(2-甲基丁烷基)氧)乙氧基)-3-氧丙基)硫(3-氧丙基)-3-(甲基硫)丁二酸(PDMEA)组成的双层多功能聚合物缓冲液,插入金属电极/传输层界面。这种缓冲剂通过在金属层和PDMEA之间形成硫醚-金属-羧基螯合环来减轻金属原子的扩散。此外,基于Lewis酸碱反应,它通过PDMEA的羧基与PEI的胺基之间的原位交联,促进了有效的电子传递,抑制了界面重组。因此,这种设计有效地减少了器件制造和操作过程中不希望的金属/离子相互扩散。所得到的具有PEI/PDMEA缓冲的PSCs实现了认证的功率转换效率(pce),分别为26.46% (0.1 cm2)和24.70% (1.01 cm2),显示出增强的热稳定性和操作稳定性。我们预计,这种通过具有不同功能的聚合物交联形成双层聚合物缓冲的缓冲设计策略,将激发高效稳定的psc和其他电子设备的稳健缓冲的合理设计。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Cross-linked multifunctional bilayer polymer buffer for enhanced efficiency and stability in perovskite solar cells

Cross-linked multifunctional bilayer polymer buffer for enhanced efficiency and stability in perovskite solar cells

Addressing the stability challenges induced by the chemical interactions between metal electrodes and perovskite components is essential for high-performance perovskite solar cells (PSCs). Herein, we design a bilayer multifunctional polymer buffer composed of polyethyleneimine (PEI) and 2-((2-methyl-3-(2-((2-methylbutanoyl)oxy)ethoxy)−3-oxopropyl)thio)−3-(methylthio)succinic acid (PDMEA), inserting into the interface of metal electrode/transporting layer. This buffer mitigates metal atom diffusion by forming thioether-metal-carboxyl chelation rings between the metal layer and PDMEA. Additionally, it facilitates efficient electron transport and suppresses interfacial recombination through an in-situ cross-linking between the carboxyl groups of PDMEA and the amine groups of PEI based on Lewis acid-base reaction. Consequently, this design effectively reduces undesirable metal/ion interdiffusion during device fabrication and operation. The resulting PSCs with the PEI/PDMEA buffer achieve certified power conversion efficiencies (PCEs) of 26.46% (0.1 cm2) and 24.70% (1.01 cm2), demonstrating enhanced thermal and operational stability. We anticipate that this buffer design strategy, which forms bilayer polymer buffers via cross-linking of polymers with distinct functionalities, will inspire the rational design of robust buffers for highly efficient and stable PSCs and other electronic devices.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Nature Communications
Nature Communications Biological Science Disciplines-
CiteScore
24.90
自引率
2.40%
发文量
6928
审稿时长
3.7 months
期刊介绍: Nature Communications, an open-access journal, publishes high-quality research spanning all areas of the natural sciences. Papers featured in the journal showcase significant advances relevant to specialists in each respective field. With a 2-year impact factor of 16.6 (2022) and a median time of 8 days from submission to the first editorial decision, Nature Communications is committed to rapid dissemination of research findings. As a multidisciplinary journal, it welcomes contributions from biological, health, physical, chemical, Earth, social, mathematical, applied, and engineering sciences, aiming to highlight important breakthroughs within each domain.
×
