纳米多孔znga2o4改性隔膜作为先进锂硫电池的多功能多硫化物屏障

IF 4.2 3区工程技术 Q2 ELECTROCHEMISTRY

Electrochemistry Communications Pub Date : 2025-06-28 DOI:10.1016/j.elecom.2025.107990

Zifan Wang, Wensi Li, Tianzhen Wang, Mingyuan Pang, Zhen Kong, Juan An, Zhen Li, Jiajia Ye, Guang Xia

{"title":"纳米多孔znga2o4改性隔膜作为先进锂硫电池的多功能多硫化物屏障","authors":"Zifan Wang, Wensi Li, Tianzhen Wang, Mingyuan Pang, Zhen Kong, Juan An, Zhen Li, Jiajia Ye, Guang Xia","doi":"10.1016/j.elecom.2025.107990","DOIUrl":null,"url":null,"abstract":"<div><div>Nanoporous ZnGa2O4 was synthesised as a separator modifier for lithium‑sulfur batteries via a one-step sol-gel process followed by high-temperature calcination. The modified separator could effectively adsorb and catalyse lithium polysulphides, thus inhibiting the shuttle effect and improving their redox kinetics. The three-dimensional porous structure of ZnGa2O4 with high surface area that can effectively relieve the volume expansion of S8 during cycling process and provide transport channels for both electrons and Li+ ion. Consequently, the battery with the ZnGa2O4 interlayer exhibited excellent reversibility and stability, with a reversible capacity of 723.4 mAh·g−1 after 300 cycles at 1C. Furthermore, Li<img>S cells with modified separators demonstrated enhanced rate capability (704.3 mAh g−1 at 5C) compared with commercial separators.</div></div>","PeriodicalId":304,"journal":{"name":"Electrochemistry Communications","volume":"178 ","pages":"Article 107990"},"PeriodicalIF":4.2000,"publicationDate":"2025-06-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Nanoporous ZnGa2O4-modified separator as a multifunctional polysulphide barrier for advanced lithium-sulfur batteries\",\"authors\":\"Zifan Wang, Wensi Li, Tianzhen Wang, Mingyuan Pang, Zhen Kong, Juan An, Zhen Li, Jiajia Ye, Guang Xia\",\"doi\":\"10.1016/j.elecom.2025.107990\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Nanoporous ZnGa2O4 was synthesised as a separator modifier for lithium‑sulfur batteries via a one-step sol-gel process followed by high-temperature calcination. The modified separator could effectively adsorb and catalyse lithium polysulphides, thus inhibiting the shuttle effect and improving their redox kinetics. The three-dimensional porous structure of ZnGa2O4 with high surface area that can effectively relieve the volume expansion of S8 during cycling process and provide transport channels for both electrons and Li+ ion. Consequently, the battery with the ZnGa2O4 interlayer exhibited excellent reversibility and stability, with a reversible capacity of 723.4 mAh·g−1 after 300 cycles at 1C. Furthermore, Li<img>S cells with modified separators demonstrated enhanced rate capability (704.3 mAh g−1 at 5C) compared with commercial separators.</div></div>\",\"PeriodicalId\":304,\"journal\":{\"name\":\"Electrochemistry Communications\",\"volume\":\"178 \",\"pages\":\"Article 107990\"},\"PeriodicalIF\":4.2000,\"publicationDate\":\"2025-06-28\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Electrochemistry Communications\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S1388248125001298\",\"RegionNum\":3,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ELECTROCHEMISTRY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Electrochemistry Communications","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1388248125001298","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ELECTROCHEMISTRY","Score":null,"Total":0}

引用次数: 0

摘要

采用溶胶-凝胶-高温煅烧一步法制备了纳米多孔ZnGa2O4作为锂硫电池的隔膜改性剂。改性后的隔膜能有效吸附和催化多硫化物锂，从而抑制了穿梭效应，提高了多硫化物锂的氧化还原动力学。ZnGa2O4具有高表面积的三维多孔结构，可以有效缓解S8在循环过程中的体积膨胀，同时为电子和Li+离子提供输运通道。因此，ZnGa2O4夹层电池表现出优异的可逆性和稳定性，在1C下循环300次后，电池的可逆容量为723.4 mAh·g−1。此外，与商用隔膜相比，使用改性隔膜的锂离子电池表现出更高的倍率能力（5C时为704.3 mAh g−1）。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Nanoporous ZnGa2O4-modified separator as a multifunctional polysulphide barrier for advanced lithium-sulfur batteries

查看原文本刊更多论文

Nanoporous ZnGa2O4-modified separator as a multifunctional polysulphide barrier for advanced lithium-sulfur batteries

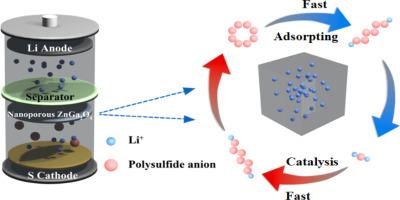

Nanoporous ZnGa₂O₄ was synthesised as a separator modifier for lithium‑sulfur batteries via a one-step sol-gel process followed by high-temperature calcination. The modified separator could effectively adsorb and catalyse lithium polysulphides, thus inhibiting the shuttle effect and improving their redox kinetics. The three-dimensional porous structure of ZnGa₂O₄ with high surface area that can effectively relieve the volume expansion of S₈ during cycling process and provide transport channels for both electrons and Li⁺ ion. Consequently, the battery with the ZnGa₂O₄ interlayer exhibited excellent reversibility and stability, with a reversible capacity of 723.4 mAh·g⁻¹ after 300 cycles at 1C. Furthermore, LiS cells with modified separators demonstrated enhanced rate capability (704.3 mAh g⁻¹ at 5C) compared with commercial separators.
