纤维素的温度响应流变改性剂使水凝胶的声学增材制造成为可能。

IF 5.1 Q1 POLYMER SCIENCE
ACS Macro Letters Pub Date : 2025-07-15 Epub Date: 2025-06-27 DOI:10.1021/acsmacrolett.5c00244
Lillian E Mortensen, Fernando Enriquez Barrero, Talaial B Alina, Jennifer N Cha, Andrew P Goodwin
{"title":"纤维素的温度响应流变改性剂使水凝胶的声学增材制造成为可能。","authors":"Lillian E Mortensen, Fernando Enriquez Barrero, Talaial B Alina, Jennifer N Cha, Andrew P Goodwin","doi":"10.1021/acsmacrolett.5c00244","DOIUrl":null,"url":null,"abstract":"<p><p>While photopolymerization is a widely adopted method for additive manufacturing, its versatility is limited by high attenuation by the polymerization medium, which leads to anisotropic parts and slow printing times. Ultrasound bypasses these depth limitations, but challenges of acoustic streaming and heat localization remain. Here, we investigated a single-phase system that integrates temperature-responsive rheology modifiers to enhance ultrasound-based additive manufacturing. We employed cellulose derivatives with lower critical solution temperatures (LCST) to restrict acoustic streaming and localize heat within the focal zone. Our findings show that these rheology modifiers effectively contain heat, minimizing bulk polymerization and enhancing printing precision. Hydroxypropyl cellulose (HPC)-based sono-inks enable rapid printing speeds of up to 60 mm/min with sub-5 mm resolution. Furthermore, HPC inks demonstrated the capability to print at a distance and through optically opaque tissues. Conversely, methylcellulose (MC) formulations improved printing resolution but reduced speed, likely because the LCST could not be reached during the printing process. The developed sono-ink holds promise for future applications such as <i>in vivo</i> 3D printing, volumetric fabrication, and composite material synthesis.</p>","PeriodicalId":18,"journal":{"name":"ACS Macro Letters","volume":" ","pages":"976-982"},"PeriodicalIF":5.1000,"publicationDate":"2025-07-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Temperature-Responsive Rheology Modifiers from Cellulose to Enable Acoustic Additive Manufacturing of Hydrogels.\",\"authors\":\"Lillian E Mortensen, Fernando Enriquez Barrero, Talaial B Alina, Jennifer N Cha, Andrew P Goodwin\",\"doi\":\"10.1021/acsmacrolett.5c00244\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>While photopolymerization is a widely adopted method for additive manufacturing, its versatility is limited by high attenuation by the polymerization medium, which leads to anisotropic parts and slow printing times. Ultrasound bypasses these depth limitations, but challenges of acoustic streaming and heat localization remain. Here, we investigated a single-phase system that integrates temperature-responsive rheology modifiers to enhance ultrasound-based additive manufacturing. We employed cellulose derivatives with lower critical solution temperatures (LCST) to restrict acoustic streaming and localize heat within the focal zone. Our findings show that these rheology modifiers effectively contain heat, minimizing bulk polymerization and enhancing printing precision. Hydroxypropyl cellulose (HPC)-based sono-inks enable rapid printing speeds of up to 60 mm/min with sub-5 mm resolution. Furthermore, HPC inks demonstrated the capability to print at a distance and through optically opaque tissues. Conversely, methylcellulose (MC) formulations improved printing resolution but reduced speed, likely because the LCST could not be reached during the printing process. The developed sono-ink holds promise for future applications such as <i>in vivo</i> 3D printing, volumetric fabrication, and composite material synthesis.</p>\",\"PeriodicalId\":18,\"journal\":{\"name\":\"ACS Macro Letters\",\"volume\":\" \",\"pages\":\"976-982\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2025-07-15\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Macro Letters\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1021/acsmacrolett.5c00244\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/6/27 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q1\",\"JCRName\":\"POLYMER SCIENCE\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Macro Letters","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acsmacrolett.5c00244","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/6/27 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"POLYMER SCIENCE","Score":null,"Total":0}
引用次数: 0

摘要

虽然光聚合是一种广泛采用的增材制造方法,但它的多功能性受到聚合介质的高衰减的限制,这导致了各向异性的零件和缓慢的打印时间。超声波绕过了这些深度限制,但声流和热定位的挑战仍然存在。在这里,我们研究了一种集成了温度响应流变改性剂的单相系统,以增强基于超声波的增材制造。我们使用具有较低临界溶液温度(LCST)的纤维素衍生物来限制声流并在焦点区域内定位热量。我们的研究结果表明,这些流变改性剂有效地抑制了热量,减少了本体聚合,提高了印刷精度。羟丙基纤维素(HPC)基声纳油墨可实现高达60毫米/分钟的快速打印速度,分辨率低于5毫米。此外,高性能计算油墨还展示了远距离和通过光学不透明组织进行打印的能力。相反,甲基纤维素(MC)配方提高了打印分辨率,但降低了速度,可能是因为在打印过程中无法达到LCST。开发的声纳墨水有望在未来的应用,如体内3D打印,体积制造和复合材料合成。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
Temperature-Responsive Rheology Modifiers from Cellulose to Enable Acoustic Additive Manufacturing of Hydrogels.

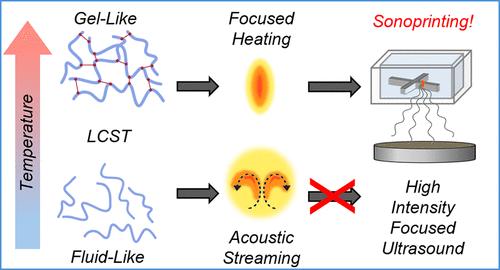

While photopolymerization is a widely adopted method for additive manufacturing, its versatility is limited by high attenuation by the polymerization medium, which leads to anisotropic parts and slow printing times. Ultrasound bypasses these depth limitations, but challenges of acoustic streaming and heat localization remain. Here, we investigated a single-phase system that integrates temperature-responsive rheology modifiers to enhance ultrasound-based additive manufacturing. We employed cellulose derivatives with lower critical solution temperatures (LCST) to restrict acoustic streaming and localize heat within the focal zone. Our findings show that these rheology modifiers effectively contain heat, minimizing bulk polymerization and enhancing printing precision. Hydroxypropyl cellulose (HPC)-based sono-inks enable rapid printing speeds of up to 60 mm/min with sub-5 mm resolution. Furthermore, HPC inks demonstrated the capability to print at a distance and through optically opaque tissues. Conversely, methylcellulose (MC) formulations improved printing resolution but reduced speed, likely because the LCST could not be reached during the printing process. The developed sono-ink holds promise for future applications such as in vivo 3D printing, volumetric fabrication, and composite material synthesis.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
CiteScore
10.40
自引率
3.40%
发文量
209
审稿时长
1 months
期刊介绍: ACS Macro Letters publishes research in all areas of contemporary soft matter science in which macromolecules play a key role, including nanotechnology, self-assembly, supramolecular chemistry, biomaterials, energy generation and storage, and renewable/sustainable materials. Submissions to ACS Macro Letters should justify clearly the rapid disclosure of the key elements of the study. The scope of the journal includes high-impact research of broad interest in all areas of polymer science and engineering, including cross-disciplinary research that interfaces with polymer science. With the launch of ACS Macro Letters, all Communications that were formerly published in Macromolecules and Biomacromolecules will be published as Letters in ACS Macro Letters.
×
