An acoustic lens for displacement-free sectorial inspection of pipes with ultrasonic phased arrays

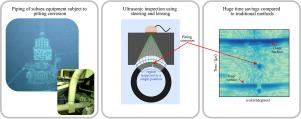

Pipes that transport acidic fluids are prone to pitting corrosion, which causes well-localized thickness loss. The detection and measurement of these small flaws via ultrasonic non-destructive testing (UT) requires a fine sampling of the surface of the pipe, which is time-consuming and expensive, especially in places where the inspections require dedicated infrastructure, such as subsea facilities. In this work, we present an acoustic lens that, used with a UT phased array system capable of beam steering, allows for the inspection of large sections (e.g., 90 degrees) of a submerged pipe without any mechanical displacement. The mathematical formulation is derived from geometrical optics, and algorithmic procedures to compute customized delay laws are provided. Practical aspects of the manufacturing and assembly of the device are also described. Spatial resolutions of a prototypical manufactured lens on three axes are assessed on a 140 mm-diameter pipe and compared to those obtained with a moving single-element transducer, showing competitive resolutions. Measurements of the remaining thicknesses of 1.5 mm-diameter machined flaws performed with the device provided a mean absolute error of 19% of one wavelength and maximum absolute error of 51% ($\lambda =1.18mm$). The results demonstrate the potential of the proposed concept to replace single-element UT, significantly reducing inspection time by removing mechanical displacement otherwise necessary during an axial sweep.
