Low-Temperature Processing of Pyrolysis Bio-Oil for Sustainable Biographite Production

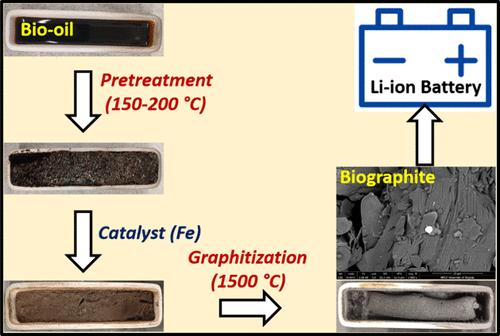

Catalytic graphitization of pyrolysis bio-oil with iron (Fe) can produce an anode material for lithium-ion batteries (LIBs) at a moderate temperature. The key challenge to scaling up the process is foaming, which occurs due to the oxidation of Fe by the organic acids present in bio-oil. This study explored five different pathways to control foaming in bio-oil upon Fe addition, including (i) defoamers use, (ii) use of iron oxide (Fe₂O₃) as graphitization catalyst, (iii) pH adjustment of bio-oil, (iv) bio-oil coking (300–500 °C), and (v) low-temperature pretreatment of bio-oil (150–200 °C). The low-temperature pretreatment successfully avoided foaming by removing the volatile acids in bio-oil. The bio-oil was solidified and powdered for even mixing with the Fe catalyst. The biographite catalytically prepared at 1500 °C following this pathway demonstrated nearly theoretical specific gravimetric capacity (∼370 mAh/g), high initial Coulombic efficiency (90.03%), and minimal capacity fading after 50 cycles in LIB half-cells. The low-temperature pretreatment pathway also addressed the viscosity, swelling, and aging issues associated with bio-oil processing and will make scale-up endeavors more attainable.
