用于建筑集成光伏发电的基于fabry - p谐振的高效可调色双表面钙钛矿太阳能电池

IF 26 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Wennan Ou, Jie Liang, Jinyan Guo, Guihao Wang, Yuxuan Liu, Yinke Wang, Yuan Gao, Jie Wen, Zhi Li, Jiajia Hong, Yijia Guo, Haowen Luo, Xuntian Zheng, Chenshuaiyu Liu, Hongfei Sun, Yuhong Zhang, Ludong Li, Wenchi Kong, Han Gao, Lin Zhou, Renxing Lin, Hairen Tan
{"title":"用于建筑集成光伏发电的基于fabry - p<s:1>谐振的高效可调色双表面钙钛矿太阳能电池","authors":"Wennan Ou,&nbsp;Jie Liang,&nbsp;Jinyan Guo,&nbsp;Guihao Wang,&nbsp;Yuxuan Liu,&nbsp;Yinke Wang,&nbsp;Yuan Gao,&nbsp;Jie Wen,&nbsp;Zhi Li,&nbsp;Jiajia Hong,&nbsp;Yijia Guo,&nbsp;Haowen Luo,&nbsp;Xuntian Zheng,&nbsp;Chenshuaiyu Liu,&nbsp;Hongfei Sun,&nbsp;Yuhong Zhang,&nbsp;Ludong Li,&nbsp;Wenchi Kong,&nbsp;Han Gao,&nbsp;Lin Zhou,&nbsp;Renxing Lin,&nbsp;Hairen Tan","doi":"10.1002/aenm.202502208","DOIUrl":null,"url":null,"abstract":"<p>Perovskite solar cells (PSCs) are promising for building-integrated photovoltaics (BIPV) owing to their superior low-light response and tunable bandgap. However, the implementation of perovskite-based BIPV still faces critical challenges, primarily due to the inherent trade-off between achieving color tunability via bandgap engineering and maintaining high power conversion efficiency (PCE), as well as ensuring sufficient operational stability. Here, rear-side color vibrancy of bifacial perovskite solar cells (BPSCs) is enhanced by introducing a low-loss ultrathin metal (LLUM) layer at the high-loss SnO<sub>2</sub>/indium zinc oxide (IZO) interface under the guidance of Fabry-Pérot (F-P) resonance, achieving 60% coverage of sRGB color gamut for 1.52 eV BPSCs. Furthermore, the incorporation of 4-methylphenethylammonium chloride (4M-P) and an in-situ substrate-heated-crystallization strategy enhances carrier diffusion lengths, allowing LLUM-based BPSCs with a 900-nm-thick absorber to achieve a PCE of 23.7% under front illumination. Under albedo conditions of 0.1 and 0.2 sun irradiation intensity, the bifacial PCEs are elevated to 24.9% and 27.4%, respectively. The replacement of metal electrodes with IZO counterparts effectively suppresses metal ion diffusion, enabling BPSC devices to retain 87% of their initial efficiency after 1000 h of thermal aging at 85 °C. These results demonstrate the potential of LLUM-based BPSCs for efficient, color-tunable, and stable BIPV.</p>","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"15 33","pages":""},"PeriodicalIF":26.0000,"publicationDate":"2025-06-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"High-Efficiency Fabry-Pérot-Resonance-Based Color-Tunable Bifacial Perovskite Solar Cells for Building Integrated Photovoltaics\",\"authors\":\"Wennan Ou,&nbsp;Jie Liang,&nbsp;Jinyan Guo,&nbsp;Guihao Wang,&nbsp;Yuxuan Liu,&nbsp;Yinke Wang,&nbsp;Yuan Gao,&nbsp;Jie Wen,&nbsp;Zhi Li,&nbsp;Jiajia Hong,&nbsp;Yijia Guo,&nbsp;Haowen Luo,&nbsp;Xuntian Zheng,&nbsp;Chenshuaiyu Liu,&nbsp;Hongfei Sun,&nbsp;Yuhong Zhang,&nbsp;Ludong Li,&nbsp;Wenchi Kong,&nbsp;Han Gao,&nbsp;Lin Zhou,&nbsp;Renxing Lin,&nbsp;Hairen Tan\",\"doi\":\"10.1002/aenm.202502208\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Perovskite solar cells (PSCs) are promising for building-integrated photovoltaics (BIPV) owing to their superior low-light response and tunable bandgap. However, the implementation of perovskite-based BIPV still faces critical challenges, primarily due to the inherent trade-off between achieving color tunability via bandgap engineering and maintaining high power conversion efficiency (PCE), as well as ensuring sufficient operational stability. Here, rear-side color vibrancy of bifacial perovskite solar cells (BPSCs) is enhanced by introducing a low-loss ultrathin metal (LLUM) layer at the high-loss SnO<sub>2</sub>/indium zinc oxide (IZO) interface under the guidance of Fabry-Pérot (F-P) resonance, achieving 60% coverage of sRGB color gamut for 1.52 eV BPSCs. Furthermore, the incorporation of 4-methylphenethylammonium chloride (4M-P) and an in-situ substrate-heated-crystallization strategy enhances carrier diffusion lengths, allowing LLUM-based BPSCs with a 900-nm-thick absorber to achieve a PCE of 23.7% under front illumination. Under albedo conditions of 0.1 and 0.2 sun irradiation intensity, the bifacial PCEs are elevated to 24.9% and 27.4%, respectively. The replacement of metal electrodes with IZO counterparts effectively suppresses metal ion diffusion, enabling BPSC devices to retain 87% of their initial efficiency after 1000 h of thermal aging at 85 °C. These results demonstrate the potential of LLUM-based BPSCs for efficient, color-tunable, and stable BIPV.</p>\",\"PeriodicalId\":111,\"journal\":{\"name\":\"Advanced Energy Materials\",\"volume\":\"15 33\",\"pages\":\"\"},\"PeriodicalIF\":26.0000,\"publicationDate\":\"2025-06-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202502208\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202502208","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

钙钛矿太阳能电池(PSCs)由于其优越的弱光响应和可调的带隙,在建筑集成光伏(BIPV)中具有广阔的应用前景。然而,钙钛矿BIPV的实现仍然面临着严峻的挑战,主要是由于通过带隙工程实现颜色可调性与保持高功率转换效率(PCE)之间的内在权衡,以及确保足够的运行稳定性。本研究通过在高损耗SnO2/铟锌氧化物(IZO)界面引入低损耗超薄金属(LLUM)层,在F-P共振的引导下,增强了双面钙钛矿太阳能电池(BPSCs)的背面颜色振动,使1.52 eV BPSCs的sRGB色域覆盖率达到60%。此外,4-甲基苯乙基氯化铵(4M-P)和原位衬底加热结晶策略的结合提高了载流子扩散长度,使得具有900纳米厚吸收剂的llumm基bpsc在正面照明下的PCE达到23.7%。在太阳照射强度为0.1和0.2的反照率条件下,双面pce分别提高到24.9%和27.4%。用IZO电极替代金属电极有效抑制了金属离子扩散,使BPSC器件在85℃下热老化1000 h后仍能保持87%的初始效率。这些结果证明了基于llumm的BPSCs在高效、颜色可调和稳定BIPV方面的潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

High-Efficiency Fabry-Pérot-Resonance-Based Color-Tunable Bifacial Perovskite Solar Cells for Building Integrated Photovoltaics

High-Efficiency Fabry-Pérot-Resonance-Based Color-Tunable Bifacial Perovskite Solar Cells for Building Integrated Photovoltaics

High-Efficiency Fabry-Pérot-Resonance-Based Color-Tunable Bifacial Perovskite Solar Cells for Building Integrated Photovoltaics

High-Efficiency Fabry-Pérot-Resonance-Based Color-Tunable Bifacial Perovskite Solar Cells for Building Integrated Photovoltaics

High-Efficiency Fabry-Pérot-Resonance-Based Color-Tunable Bifacial Perovskite Solar Cells for Building Integrated Photovoltaics

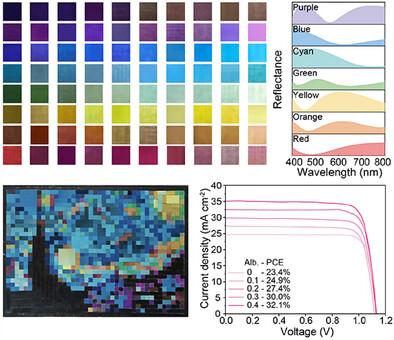

Perovskite solar cells (PSCs) are promising for building-integrated photovoltaics (BIPV) owing to their superior low-light response and tunable bandgap. However, the implementation of perovskite-based BIPV still faces critical challenges, primarily due to the inherent trade-off between achieving color tunability via bandgap engineering and maintaining high power conversion efficiency (PCE), as well as ensuring sufficient operational stability. Here, rear-side color vibrancy of bifacial perovskite solar cells (BPSCs) is enhanced by introducing a low-loss ultrathin metal (LLUM) layer at the high-loss SnO2/indium zinc oxide (IZO) interface under the guidance of Fabry-Pérot (F-P) resonance, achieving 60% coverage of sRGB color gamut for 1.52 eV BPSCs. Furthermore, the incorporation of 4-methylphenethylammonium chloride (4M-P) and an in-situ substrate-heated-crystallization strategy enhances carrier diffusion lengths, allowing LLUM-based BPSCs with a 900-nm-thick absorber to achieve a PCE of 23.7% under front illumination. Under albedo conditions of 0.1 and 0.2 sun irradiation intensity, the bifacial PCEs are elevated to 24.9% and 27.4%, respectively. The replacement of metal electrodes with IZO counterparts effectively suppresses metal ion diffusion, enabling BPSC devices to retain 87% of their initial efficiency after 1000 h of thermal aging at 85 °C. These results demonstrate the potential of LLUM-based BPSCs for efficient, color-tunable, and stable BIPV.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Advanced Energy Materials
Advanced Energy Materials CHEMISTRY, PHYSICAL-ENERGY & FUELS
CiteScore
41.90
自引率
4.00%
发文量
889
审稿时长
1.4 months
期刊介绍: Established in 2011, Advanced Energy Materials is an international, interdisciplinary, English-language journal that focuses on materials used in energy harvesting, conversion, and storage. It is regarded as a top-quality journal alongside Advanced Materials, Advanced Functional Materials, and Small. With a 2022 Impact Factor of 27.8, Advanced Energy Materials is considered a prime source for the best energy-related research. The journal covers a wide range of topics in energy-related research, including organic and inorganic photovoltaics, batteries and supercapacitors, fuel cells, hydrogen generation and storage, thermoelectrics, water splitting and photocatalysis, solar fuels and thermosolar power, magnetocalorics, and piezoelectronics. The readership of Advanced Energy Materials includes materials scientists, chemists, physicists, and engineers in both academia and industry. The journal is indexed in various databases and collections, such as Advanced Technologies & Aerospace Database, FIZ Karlsruhe, INSPEC (IET), Science Citation Index Expanded, Technology Collection, and Web of Science, among others.
×
