Estrella Sanz Rodriguez , Mingxia Lai , Harrison Stevens , Meredith K. Nation , Christopher T. Plummer , Lenneke M. Jong , Jason L. Roberts , Andrew D. Moy , Andrew R. Bowie , Mark A. Curran , Brett Paull
{"title":"直接注射非抑制离子色谱-质谱法分析南极冰芯中三氟乙酸(TFA)的季节变化","authors":"Estrella Sanz Rodriguez , Mingxia Lai , Harrison Stevens , Meredith K. Nation , Christopher T. Plummer , Lenneke M. Jong , Jason L. Roberts , Andrew D. Moy , Andrew R. Bowie , Mark A. Curran , Brett Paull","doi":"10.1016/j.scitotenv.2025.179837","DOIUrl":null,"url":null,"abstract":"<div><div>This study presents the first record of trifluoroacetic acid (TFA) in Antarctic ice cores, offering valuable data on TFA and its precursors' long-range atmospheric transport and deposition in remote polar regions. TFA is an ultra-short chain perfluoroalkyl acid (PFAA) that has gained attention due to its environmental persistence, stability, and mobility. It is primarily formed as an end product of atmospheric degradation of halogenated refrigerants and blowing agents, particularly hydrofluorocarbons (HFCs) and unsaturated HFCs (u-HFCs). In this study, a new non-suppressed ion chromatography-tandem mass spectrometry (nsIC-MS/MS) method was developed for TFA determination in samples from a 12.9 m Antarctic ice core. Using direct injection of 20 μL of ice core sample, TFA was retained on a HALO Penta-HILIC column (150 mm × 1.5 mm, 2.7 μm). Analysis was completed within 5 min at 25 °C using an isocratic mobile phase (60:40 acetonitrile:water, 1 mM ammonium formate) at 90 μL/min. Detection was performed in negative ESI-SRM mode (<em>m/z</em> 113 → 69), achieving a limit of detection of 0.3 ng/L. Repeatability (intra- and inter-day) was better than 7 %. A total of 260 samples were analysed from a high-resolution ice core spanning 2011–2021 CE. On average, TFA concentrations increased by 5.8 % per year over the studied period. Comparison with seasonal proxies from the same core, i.e., methanesulfonic acid (MSA), revealed TFA peaks in September–November suggesting that polar vortex weakening releases both pre-formed TFA and additional TFA from the breakdown of more stable precursors.</div></div>","PeriodicalId":422,"journal":{"name":"Science of the Total Environment","volume":"988 ","pages":"Article 179837"},"PeriodicalIF":8.0000,"publicationDate":"2025-06-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Seasonal variation of trifluoroacetic acid (TFA) in Antarctic ice cores analysed by direct injection non-suppressed ion chromatography-mass spectrometry (nsIC-MS)\",\"authors\":\"Estrella Sanz Rodriguez , Mingxia Lai , Harrison Stevens , Meredith K. Nation , Christopher T. Plummer , Lenneke M. Jong , Jason L. Roberts , Andrew D. Moy , Andrew R. Bowie , Mark A. Curran , Brett Paull\",\"doi\":\"10.1016/j.scitotenv.2025.179837\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>This study presents the first record of trifluoroacetic acid (TFA) in Antarctic ice cores, offering valuable data on TFA and its precursors' long-range atmospheric transport and deposition in remote polar regions. TFA is an ultra-short chain perfluoroalkyl acid (PFAA) that has gained attention due to its environmental persistence, stability, and mobility. It is primarily formed as an end product of atmospheric degradation of halogenated refrigerants and blowing agents, particularly hydrofluorocarbons (HFCs) and unsaturated HFCs (u-HFCs). In this study, a new non-suppressed ion chromatography-tandem mass spectrometry (nsIC-MS/MS) method was developed for TFA determination in samples from a 12.9 m Antarctic ice core. Using direct injection of 20 μL of ice core sample, TFA was retained on a HALO Penta-HILIC column (150 mm × 1.5 mm, 2.7 μm). Analysis was completed within 5 min at 25 °C using an isocratic mobile phase (60:40 acetonitrile:water, 1 mM ammonium formate) at 90 μL/min. Detection was performed in negative ESI-SRM mode (<em>m/z</em> 113 → 69), achieving a limit of detection of 0.3 ng/L. Repeatability (intra- and inter-day) was better than 7 %. A total of 260 samples were analysed from a high-resolution ice core spanning 2011–2021 CE. On average, TFA concentrations increased by 5.8 % per year over the studied period. Comparison with seasonal proxies from the same core, i.e., methanesulfonic acid (MSA), revealed TFA peaks in September–November suggesting that polar vortex weakening releases both pre-formed TFA and additional TFA from the breakdown of more stable precursors.</div></div>\",\"PeriodicalId\":422,\"journal\":{\"name\":\"Science of the Total Environment\",\"volume\":\"988 \",\"pages\":\"Article 179837\"},\"PeriodicalIF\":8.0000,\"publicationDate\":\"2025-06-09\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Science of the Total Environment\",\"FirstCategoryId\":\"93\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0048969725014780\",\"RegionNum\":1,\"RegionCategory\":\"环境科学与生态学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENVIRONMENTAL SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Science of the Total Environment","FirstCategoryId":"93","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0048969725014780","RegionNum":1,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENVIRONMENTAL SCIENCES","Score":null,"Total":0}
引用次数: 0
摘要
本研究首次记录了南极冰芯中的三氟乙酸(TFA),为三氟乙酸及其前体在极地偏远地区的远距离大气输送和沉积提供了有价值的数据。TFA是一种超短链全氟烷基酸(PFAA),由于其环境持久性、稳定性和流动性而受到关注。它主要是卤化制冷剂和发泡剂,特别是氢氟碳化物和不饱和氢氟碳化物在大气中降解的最终产物。本研究建立了一种新的非抑制离子色谱-串联质谱(nsIC-MS/MS)测定南极12.9 m冰芯样品中TFA的方法。在HALO Penta-HILIC色谱柱(150 mm × 1.5 mm, 2.7 μm)上,直接进样20 μL冰芯样品,保留TFA。采用90 μL/min的等密度流动相(60:40乙腈:水,1 mM甲酸铵),在25°C下,5 min内完成分析。采用ESI-SRM阴性模式(m/z 113→69)检测,检出限为0.3 ng/L。重复性(日内、日间)优于7%。从2011-2021 CE的高分辨率冰芯中共分析了260个样本。在研究期间,TFA浓度平均每年增加5.8%。与同一地核的季节代用物甲烷磺酸(MSA)相比,9 - 11月的TFA峰值表明极地涡旋减弱释放了预形成的TFA和更稳定的前体分解产生的额外TFA。

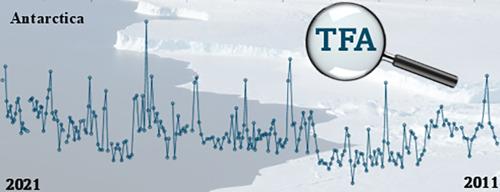

Seasonal variation of trifluoroacetic acid (TFA) in Antarctic ice cores analysed by direct injection non-suppressed ion chromatography-mass spectrometry (nsIC-MS)
This study presents the first record of trifluoroacetic acid (TFA) in Antarctic ice cores, offering valuable data on TFA and its precursors' long-range atmospheric transport and deposition in remote polar regions. TFA is an ultra-short chain perfluoroalkyl acid (PFAA) that has gained attention due to its environmental persistence, stability, and mobility. It is primarily formed as an end product of atmospheric degradation of halogenated refrigerants and blowing agents, particularly hydrofluorocarbons (HFCs) and unsaturated HFCs (u-HFCs). In this study, a new non-suppressed ion chromatography-tandem mass spectrometry (nsIC-MS/MS) method was developed for TFA determination in samples from a 12.9 m Antarctic ice core. Using direct injection of 20 μL of ice core sample, TFA was retained on a HALO Penta-HILIC column (150 mm × 1.5 mm, 2.7 μm). Analysis was completed within 5 min at 25 °C using an isocratic mobile phase (60:40 acetonitrile:water, 1 mM ammonium formate) at 90 μL/min. Detection was performed in negative ESI-SRM mode (m/z 113 → 69), achieving a limit of detection of 0.3 ng/L. Repeatability (intra- and inter-day) was better than 7 %. A total of 260 samples were analysed from a high-resolution ice core spanning 2011–2021 CE. On average, TFA concentrations increased by 5.8 % per year over the studied period. Comparison with seasonal proxies from the same core, i.e., methanesulfonic acid (MSA), revealed TFA peaks in September–November suggesting that polar vortex weakening releases both pre-formed TFA and additional TFA from the breakdown of more stable precursors.
