Rh/MgAlO/ fecral泡沫结构催化剂，具有可调的碱性和金属-载体相互作用，用于甲苯的有效蒸汽重整

IF 4.3 2区工程技术 Q2 ENGINEERING, CHEMICAL

Chemical Engineering Science Pub Date : 2025-06-09 DOI:10.1016/j.ces.2025.122006

Shangxin Guo , Rongrong Zhang , Sibao Liu , Guozhu Liu

{"title":"Rh/MgAlO/ fecral泡沫结构催化剂，具有可调的碱性和金属-载体相互作用，用于甲苯的有效蒸汽重整","authors":"Shangxin Guo , Rongrong Zhang , Sibao Liu , Guozhu Liu","doi":"10.1016/j.ces.2025.122006","DOIUrl":null,"url":null,"abstract":"<div><div>Steam reforming of tar is a promising method for tar removal during biomass gasification. This study presents a series of Rh/MgAlO catalysts supported on FeCrAl-foam, featuring tunable metal-support interactions (MSI) for toluene steam reforming. The Rh dispersion, basic properties, and MSI were optimized by adjusting the Mg/Al ratio. A porous MgAlO overlayer on Rh was achieved through hydroxide-to-oxide transformation, enhancing the Rh-MgAlO<sub>x</sub> interface and improving catalytic activity and high-temperature stability. Among the structured catalysts, the Rh/MgAlO catalyst with an optimal Mg/Al ratio (1:1) exhibited superior activity and excellent resistance to sintering and coke deposition, attributed to its medium MSI and basic properties. The catalytic performance depends on the balance between C-C/C-H bond scission on surface Rh<sup>0</sup> and H<sub>2</sub>O activation over basic sites. The Rh-MgAlO<sub>x</sub> interface promotes the interaction of active oxygen from H<sub>2</sub>O on MgAlO<sub>x</sub> with CH<sub>x</sub> steam from toluene decomposition on Rh<sup>0</sup> sites.</div></div>","PeriodicalId":271,"journal":{"name":"Chemical Engineering Science","volume":"316 ","pages":"Article 122006"},"PeriodicalIF":4.3000,"publicationDate":"2025-06-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Rh/MgAlO/FeCrAl-foam structured catalyst with tunable basic and metal-support interaction for effective steam reforming of toluene\",\"authors\":\"Shangxin Guo , Rongrong Zhang , Sibao Liu , Guozhu Liu\",\"doi\":\"10.1016/j.ces.2025.122006\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Steam reforming of tar is a promising method for tar removal during biomass gasification. This study presents a series of Rh/MgAlO catalysts supported on FeCrAl-foam, featuring tunable metal-support interactions (MSI) for toluene steam reforming. The Rh dispersion, basic properties, and MSI were optimized by adjusting the Mg/Al ratio. A porous MgAlO overlayer on Rh was achieved through hydroxide-to-oxide transformation, enhancing the Rh-MgAlO<sub>x</sub> interface and improving catalytic activity and high-temperature stability. Among the structured catalysts, the Rh/MgAlO catalyst with an optimal Mg/Al ratio (1:1) exhibited superior activity and excellent resistance to sintering and coke deposition, attributed to its medium MSI and basic properties. The catalytic performance depends on the balance between C-C/C-H bond scission on surface Rh<sup>0</sup> and H<sub>2</sub>O activation over basic sites. The Rh-MgAlO<sub>x</sub> interface promotes the interaction of active oxygen from H<sub>2</sub>O on MgAlO<sub>x</sub> with CH<sub>x</sub> steam from toluene decomposition on Rh<sup>0</sup> sites.</div></div>\",\"PeriodicalId\":271,\"journal\":{\"name\":\"Chemical Engineering Science\",\"volume\":\"316 \",\"pages\":\"Article 122006\"},\"PeriodicalIF\":4.3000,\"publicationDate\":\"2025-06-09\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Chemical Engineering Science\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0009250925008292\",\"RegionNum\":2,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ENGINEERING, CHEMICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Engineering Science","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0009250925008292","RegionNum":2,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}

引用次数: 0

摘要

蒸汽重整是生物质气化过程中一种很有前途的除焦油方法。本研究提出了一系列以FeCrAl泡沫为载体的Rh/MgAlO催化剂，具有可调的金属-载体相互作用（MSI），用于甲苯蒸汽重整。通过调整Mg/Al比，优化了Rh分散度、基本性能和MSI。通过氢氧转化，在Rh表面形成多孔MgAlO覆盖层，增强了Rh- mgalox界面，提高了催化活性和高温稳定性。在结构催化剂中，Mg/Al比为1:1的Rh/MgAlO催化剂由于具有中等的MSI和碱性，表现出优异的活性和抗烧结、抗积炭性能。催化性能取决于表面Rh0上的C-C/C-H键断裂和碱性位点上的H2O活化之间的平衡。Rh-MgAlOx界面促进了MgAlOx上H2O产生的活性氧与Rh0位甲苯分解产生的CHx蒸汽的相互作用

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Rh/MgAlO/FeCrAl-foam structured catalyst with tunable basic and metal-support interaction for effective steam reforming of toluene

查看原文本刊更多论文

Rh/MgAlO/FeCrAl-foam structured catalyst with tunable basic and metal-support interaction for effective steam reforming of toluene

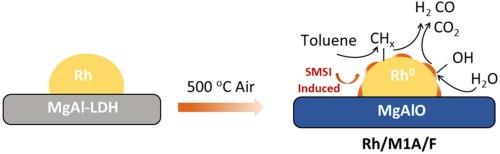

Steam reforming of tar is a promising method for tar removal during biomass gasification. This study presents a series of Rh/MgAlO catalysts supported on FeCrAl-foam, featuring tunable metal-support interactions (MSI) for toluene steam reforming. The Rh dispersion, basic properties, and MSI were optimized by adjusting the Mg/Al ratio. A porous MgAlO overlayer on Rh was achieved through hydroxide-to-oxide transformation, enhancing the Rh-MgAlO_x interface and improving catalytic activity and high-temperature stability. Among the structured catalysts, the Rh/MgAlO catalyst with an optimal Mg/Al ratio (1:1) exhibited superior activity and excellent resistance to sintering and coke deposition, attributed to its medium MSI and basic properties. The catalytic performance depends on the balance between C-C/C-H bond scission on surface Rh⁰ and H₂O activation over basic sites. The Rh-MgAlO_x interface promotes the interaction of active oxygen from H₂O on MgAlO_x with CH_x steam from toluene decomposition on Rh⁰ sites.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
