高效三元全聚合物有机太阳能电池的高结晶度聚合物驱动光纤网络形态优化

IF 4.7 2区 化学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Xiaofeng Qin, Wenming Li, Chengcheng Xie*, Xuanyan Luo, Bin Zhang*, Zhuo Wang and Menglan Lv*,
{"title":"高效三元全聚合物有机太阳能电池的高结晶度聚合物驱动光纤网络形态优化","authors":"Xiaofeng Qin,&nbsp;Wenming Li,&nbsp;Chengcheng Xie*,&nbsp;Xuanyan Luo,&nbsp;Bin Zhang*,&nbsp;Zhuo Wang and Menglan Lv*,&nbsp;","doi":"10.1021/acsapm.5c0050110.1021/acsapm.5c00501","DOIUrl":null,"url":null,"abstract":"<p >Stability remains a critical bottleneck hindering the large-scale commercialization of organic solar cells (OSCs), while all-polymer solar cells have demonstrated significant potential in this regard. In this work, we focus on investigating the efficiency of all-polymer active layers and strategies to enhance stability by employing a ternary approach with the introduction of the highly crystalline polymer donor D18. The results indicate that the compatibility between the highly crystalline polymer donor and the all-polymer active layer is a crucial factor influencing both efficiency and stability. The controlled incorporation of D18 optimally diminishes the scale of phase-segregated domains within the all-polymer active layer while inducing the formation of an interpenetrating nanofibrillar network morphology. Compared to the binary all-polymer system, the ternary all-polymer system exhibits significantly improved crystallinity, further optimizing charge transport properties. The optimized PM6:D18:PY-IT ternary blend achieved a higher PCE (17.81%) compared to PM6:PY-IT system (16.18%). Moreover, the tricomponent has an efficiency of 89% after 1600 h of storage in the glovebox, showing excellent stability.</p>","PeriodicalId":7,"journal":{"name":"ACS Applied Polymer Materials","volume":"7 10","pages":"6125–6133 6125–6133"},"PeriodicalIF":4.7000,"publicationDate":"2025-05-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"High-Crystallinity Polymer-Driven Fiber Network Morphology Optimization for Efficient Ternary All-Polymer Organic Solar Cells\",\"authors\":\"Xiaofeng Qin,&nbsp;Wenming Li,&nbsp;Chengcheng Xie*,&nbsp;Xuanyan Luo,&nbsp;Bin Zhang*,&nbsp;Zhuo Wang and Menglan Lv*,&nbsp;\",\"doi\":\"10.1021/acsapm.5c0050110.1021/acsapm.5c00501\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Stability remains a critical bottleneck hindering the large-scale commercialization of organic solar cells (OSCs), while all-polymer solar cells have demonstrated significant potential in this regard. In this work, we focus on investigating the efficiency of all-polymer active layers and strategies to enhance stability by employing a ternary approach with the introduction of the highly crystalline polymer donor D18. The results indicate that the compatibility between the highly crystalline polymer donor and the all-polymer active layer is a crucial factor influencing both efficiency and stability. The controlled incorporation of D18 optimally diminishes the scale of phase-segregated domains within the all-polymer active layer while inducing the formation of an interpenetrating nanofibrillar network morphology. Compared to the binary all-polymer system, the ternary all-polymer system exhibits significantly improved crystallinity, further optimizing charge transport properties. The optimized PM6:D18:PY-IT ternary blend achieved a higher PCE (17.81%) compared to PM6:PY-IT system (16.18%). Moreover, the tricomponent has an efficiency of 89% after 1600 h of storage in the glovebox, showing excellent stability.</p>\",\"PeriodicalId\":7,\"journal\":{\"name\":\"ACS Applied Polymer Materials\",\"volume\":\"7 10\",\"pages\":\"6125–6133 6125–6133\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-05-08\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Polymer Materials\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsapm.5c00501\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Polymer Materials","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsapm.5c00501","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

稳定性仍然是阻碍有机太阳能电池(OSCs)大规模商业化的关键瓶颈,而全聚合物太阳能电池在这方面显示出巨大的潜力。在这项工作中,我们重点研究了全聚合物活性层的效率,以及通过引入高结晶性聚合物供体D18的三元方法来提高稳定性的策略。结果表明,高结晶聚合物供体与全聚合物活性层之间的相容性是影响效率和稳定性的关键因素。D18的可控掺入最大限度地减少了全聚合物活性层内相分离域的规模,同时诱导形成互穿纳米纤维网络形态。与二元全聚合物体系相比,三元全聚合物体系结晶度显著提高,进一步优化了电荷输运性能。优化后的PM6:D18:PY-IT三元共混体系的PCE(17.81%)高于PM6:PY-IT体系(16.18%)。此外,在手套箱中储存1600 h后,三组分的效率达到89%,表现出优异的稳定性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

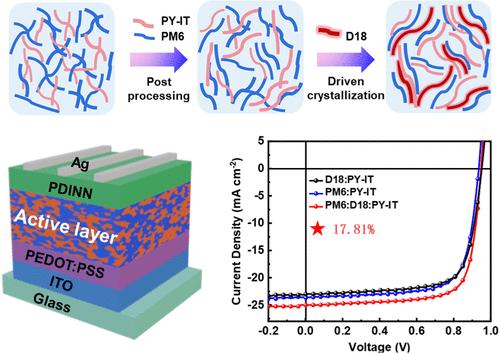

High-Crystallinity Polymer-Driven Fiber Network Morphology Optimization for Efficient Ternary All-Polymer Organic Solar Cells

High-Crystallinity Polymer-Driven Fiber Network Morphology Optimization for Efficient Ternary All-Polymer Organic Solar Cells

Stability remains a critical bottleneck hindering the large-scale commercialization of organic solar cells (OSCs), while all-polymer solar cells have demonstrated significant potential in this regard. In this work, we focus on investigating the efficiency of all-polymer active layers and strategies to enhance stability by employing a ternary approach with the introduction of the highly crystalline polymer donor D18. The results indicate that the compatibility between the highly crystalline polymer donor and the all-polymer active layer is a crucial factor influencing both efficiency and stability. The controlled incorporation of D18 optimally diminishes the scale of phase-segregated domains within the all-polymer active layer while inducing the formation of an interpenetrating nanofibrillar network morphology. Compared to the binary all-polymer system, the ternary all-polymer system exhibits significantly improved crystallinity, further optimizing charge transport properties. The optimized PM6:D18:PY-IT ternary blend achieved a higher PCE (17.81%) compared to PM6:PY-IT system (16.18%). Moreover, the tricomponent has an efficiency of 89% after 1600 h of storage in the glovebox, showing excellent stability.
