非对称肖特基接触增强二维异质结用于自供电宽带和偏振敏感光探测

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Danzhi Wang, Hangyu Li, Jiezheng Liu, Yu Qin, Jiayi Zhao, Pengfei Hou
{"title":"非对称肖特基接触增强二维异质结用于自供电宽带和偏振敏感光探测","authors":"Danzhi Wang, Hangyu Li, Jiezheng Liu, Yu Qin, Jiayi Zhao, Pengfei Hou","doi":"10.1021/acsami.5c04007","DOIUrl":null,"url":null,"abstract":"Schottky junction photodetectors, which utilize metal–semiconductor contacts, have attracted considerable attention due to their low cost, simplified fabrication process, and rapid response time. These attributes render them highly promising for applications in self-powered photodetection. Nevertheless, the Fermi-level pinning effect at the interface, the existence of defect states, and the substantial reverse leakage current of back-to-back Schottky junctions in devices often lead to difficulties in achieving precise modulation of the Schottky barrier and suboptimal rectification performance. In this study, an enhanced Au/2H-MoTe<sub>2</sub>/1T’-MoTe<sub>2</sub> heterojunction based on asymmetric Schottky contacts is proposed for constructing a self-powered broadband and polarization-sensitive photodetector. The incorporation of the van der Waals material 1T’-MoTe<sub>2</sub> mitigates the Fermi-level pinning effect, thereby significantly enhancing the rectification performance, with a rectification ratio exceeding 10<sup>4</sup>. Furthermore, the intrinsic in-plane anisotropy of 1T’-MoTe<sub>2</sub> endows the heterojunction with polarization photodetection capabilities. The wavelength-dependent photocurrent anisotropy ratio varies from 2.61 at 405 nm to 5.4 at 808 nm. More importantly, the presence of two codirectional built-in fields at the interface effectively extends both the photodetection range and overall performance. The heterojunction exhibits broadband response ranging from 405 to 2200 nm at zero bias. Under 660 nm laser irradiation, it demonstrates a peak On/Off ratio of 5.97 × 10<sup>4</sup>, a responsivity (<i>R</i>) of 80.59 mA/W, an external quantum efficiency (EQE) of 15.14%, and a specific detectivity (<i>D</i>*) of 1.05 × 10<sup>12</sup> Jones. This research not only demonstrates a high-performance and multifunctional self-powered photodetector but also offers valuable insights into the development of advanced photodetectors.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"44 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2025-05-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Asymmetric Schottky Contacts Enhanced Two-Dimensional Heterojunctions for Self-Powered Broadband and Polarization-Sensitive Photodetection\",\"authors\":\"Danzhi Wang, Hangyu Li, Jiezheng Liu, Yu Qin, Jiayi Zhao, Pengfei Hou\",\"doi\":\"10.1021/acsami.5c04007\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Schottky junction photodetectors, which utilize metal–semiconductor contacts, have attracted considerable attention due to their low cost, simplified fabrication process, and rapid response time. These attributes render them highly promising for applications in self-powered photodetection. Nevertheless, the Fermi-level pinning effect at the interface, the existence of defect states, and the substantial reverse leakage current of back-to-back Schottky junctions in devices often lead to difficulties in achieving precise modulation of the Schottky barrier and suboptimal rectification performance. In this study, an enhanced Au/2H-MoTe<sub>2</sub>/1T’-MoTe<sub>2</sub> heterojunction based on asymmetric Schottky contacts is proposed for constructing a self-powered broadband and polarization-sensitive photodetector. The incorporation of the van der Waals material 1T’-MoTe<sub>2</sub> mitigates the Fermi-level pinning effect, thereby significantly enhancing the rectification performance, with a rectification ratio exceeding 10<sup>4</sup>. Furthermore, the intrinsic in-plane anisotropy of 1T’-MoTe<sub>2</sub> endows the heterojunction with polarization photodetection capabilities. The wavelength-dependent photocurrent anisotropy ratio varies from 2.61 at 405 nm to 5.4 at 808 nm. More importantly, the presence of two codirectional built-in fields at the interface effectively extends both the photodetection range and overall performance. The heterojunction exhibits broadband response ranging from 405 to 2200 nm at zero bias. Under 660 nm laser irradiation, it demonstrates a peak On/Off ratio of 5.97 × 10<sup>4</sup>, a responsivity (<i>R</i>) of 80.59 mA/W, an external quantum efficiency (EQE) of 15.14%, and a specific detectivity (<i>D</i>*) of 1.05 × 10<sup>12</sup> Jones. This research not only demonstrates a high-performance and multifunctional self-powered photodetector but also offers valuable insights into the development of advanced photodetectors.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"44 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-05-21\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.5c04007\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.5c04007","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

利用金属-半导体触点的肖特基结光电探测器因其低成本、简化制造工艺和快速响应时间而受到广泛关注。这些特性使它们在自供电光探测中具有很高的应用前景。然而,界面处的费米级钉钉效应、缺陷态的存在以及器件中背对背肖特基结的大量反向漏电流往往导致肖特基势垒难以实现精确调制和次优整流性能。在这项研究中,提出了一种基于非对称肖特基触点的增强Au/2H-MoTe2/1T ' -MoTe2异质结,用于构建自供电的宽带偏振敏感光电探测器。范德华材料1T’-MoTe2的掺入减轻了费米能级钉钉效应,从而显著提高了整流性能,整流比超过104。此外,1T’-MoTe2的本征面内各向异性使异质结具有偏振光探测能力。波长相关的光电流各向异性比在405 nm处为2.61,在808 nm处为5.4。更重要的是,在接口处存在两个同向内置场,有效地扩展了光探测范围和整体性能。在零偏置下,异质结的宽带响应范围为405 ~ 2200nm。在660 nm激光照射下,其峰值开/关比为5.97 × 104,响应率(R)为80.59 mA/W,外量子效率(EQE)为15.14%,比探测率(D*)为1.05 × 1012 Jones。该研究不仅展示了高性能、多功能的自供电光电探测器,而且为先进光电探测器的发展提供了有价值的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Asymmetric Schottky Contacts Enhanced Two-Dimensional Heterojunctions for Self-Powered Broadband and Polarization-Sensitive Photodetection

Asymmetric Schottky Contacts Enhanced Two-Dimensional Heterojunctions for Self-Powered Broadband and Polarization-Sensitive Photodetection

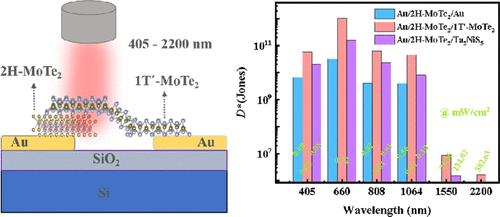

Schottky junction photodetectors, which utilize metal–semiconductor contacts, have attracted considerable attention due to their low cost, simplified fabrication process, and rapid response time. These attributes render them highly promising for applications in self-powered photodetection. Nevertheless, the Fermi-level pinning effect at the interface, the existence of defect states, and the substantial reverse leakage current of back-to-back Schottky junctions in devices often lead to difficulties in achieving precise modulation of the Schottky barrier and suboptimal rectification performance. In this study, an enhanced Au/2H-MoTe2/1T’-MoTe2 heterojunction based on asymmetric Schottky contacts is proposed for constructing a self-powered broadband and polarization-sensitive photodetector. The incorporation of the van der Waals material 1T’-MoTe2 mitigates the Fermi-level pinning effect, thereby significantly enhancing the rectification performance, with a rectification ratio exceeding 104. Furthermore, the intrinsic in-plane anisotropy of 1T’-MoTe2 endows the heterojunction with polarization photodetection capabilities. The wavelength-dependent photocurrent anisotropy ratio varies from 2.61 at 405 nm to 5.4 at 808 nm. More importantly, the presence of two codirectional built-in fields at the interface effectively extends both the photodetection range and overall performance. The heterojunction exhibits broadband response ranging from 405 to 2200 nm at zero bias. Under 660 nm laser irradiation, it demonstrates a peak On/Off ratio of 5.97 × 104, a responsivity (R) of 80.59 mA/W, an external quantum efficiency (EQE) of 15.14%, and a specific detectivity (D*) of 1.05 × 1012 Jones. This research not only demonstrates a high-performance and multifunctional self-powered photodetector but also offers valuable insights into the development of advanced photodetectors.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Materials & Interfaces
ACS Applied Materials & Interfaces 工程技术-材料科学:综合
CiteScore
16.00
自引率
6.30%
发文量
4978
审稿时长
1.8 months
期刊介绍: ACS Applied Materials & Interfaces is a leading interdisciplinary journal that brings together chemists, engineers, physicists, and biologists to explore the development and utilization of newly-discovered materials and interfacial processes for specific applications. Our journal has experienced remarkable growth since its establishment in 2009, both in terms of the number of articles published and the impact of the research showcased. We are proud to foster a truly global community, with the majority of published articles originating from outside the United States, reflecting the rapid growth of applied research worldwide.
×
