利用非晶浆利用双重形式的水能进行全天候高性能发电

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Wenna Ge, Quanmao Wei, Wenzong Li, Xu Wang, Chenguang Lu, Keke Zhang, Xuanqi Luo, Lemin Zhang, Yu Sun and Yahua Liu
{"title":"利用非晶浆利用双重形式的水能进行全天候高性能发电","authors":"Wenna Ge, Quanmao Wei, Wenzong Li, Xu Wang, Chenguang Lu, Keke Zhang, Xuanqi Luo, Lemin Zhang, Yu Sun and Yahua Liu","doi":"10.1039/D5EE01315A","DOIUrl":null,"url":null,"abstract":"<p >Harvesting ubiquitous water energy through hydrovoltaic technology offers a promising avenue for clean energy and has attracted significant interest. However, current hydrovoltaic systems are plagued by their reliance on a single form of water, which limits their current density to below 5 μA cm<small><sup>−2</sup></small> when humidity deviates from the optimal level. Here we present a dual-mode water-driven electricity generator (DWEG) that utilizes amorphous slurry to harvest energy from both moisture and liquid water through absorption and evaporation modes, respectively. Leveraging the efficient ion diffusion driven by water gradients at high humidity and the hydration free-energy difference at low relative humidity, this design achieves a current density above 144 μA cm<small><sup>−2</sup></small> across 5 to 90% relative humidity, and maintains a voltage of 0.7 V for over 420 hours at 90% relative humidity. We demonstrate that DWEG arrays can be readily scaled up to directly power desk lamps for more than five days, or even charge a tablet computer with an aluminum electrode. This work opens a route towards efficient energy harvesting from multiple forms of water energy under all-weather conditions.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 13","pages":" 6557-6565"},"PeriodicalIF":30.8000,"publicationDate":"2025-05-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Harnessing dual forms of water energy for all-weather high-performance electricity generation using amorphous slurry†\",\"authors\":\"Wenna Ge, Quanmao Wei, Wenzong Li, Xu Wang, Chenguang Lu, Keke Zhang, Xuanqi Luo, Lemin Zhang, Yu Sun and Yahua Liu\",\"doi\":\"10.1039/D5EE01315A\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Harvesting ubiquitous water energy through hydrovoltaic technology offers a promising avenue for clean energy and has attracted significant interest. However, current hydrovoltaic systems are plagued by their reliance on a single form of water, which limits their current density to below 5 μA cm<small><sup>−2</sup></small> when humidity deviates from the optimal level. Here we present a dual-mode water-driven electricity generator (DWEG) that utilizes amorphous slurry to harvest energy from both moisture and liquid water through absorption and evaporation modes, respectively. Leveraging the efficient ion diffusion driven by water gradients at high humidity and the hydration free-energy difference at low relative humidity, this design achieves a current density above 144 μA cm<small><sup>−2</sup></small> across 5 to 90% relative humidity, and maintains a voltage of 0.7 V for over 420 hours at 90% relative humidity. We demonstrate that DWEG arrays can be readily scaled up to directly power desk lamps for more than five days, or even charge a tablet computer with an aluminum electrode. This work opens a route towards efficient energy harvesting from multiple forms of water energy under all-weather conditions.</p>\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\" 13\",\"pages\":\" 6557-6565\"},\"PeriodicalIF\":30.8000,\"publicationDate\":\"2025-05-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee01315a\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d5ee01315a","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

通过水力发电技术收集无处不在的水能,为清洁能源提供了一条有前途的途径,并引起了人们的极大兴趣。然而,当前的水力发电系统受到其对单一形式水的依赖的困扰,当湿度偏离最佳水平时,将其电流密度限制在5 μA cm-2以下。在这里,我们提出了一种双模式水驱动发电机(DWEG),它利用非晶浆分别通过吸收和蒸发模式从湿气和液态水中收集能量。利用高湿条件下由水梯度驱动的离子高效扩散和低湿条件下的水化自由能差,在5 ~ 90%的相对湿度条件下实现了144 μA cm-2以上的电流密度,并在90%的相对湿度条件下保持0.7 V的电压超过420小时。我们证明,DWEG阵列可以很容易地扩大规模,直接为台灯供电超过五天,甚至可以用铝电极为平板电脑充电。这项工作为在全天候条件下从多种形式的水能中高效收集能量开辟了一条道路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Harnessing dual forms of water energy for all-weather high-performance electricity generation using amorphous slurry†

Harnessing dual forms of water energy for all-weather high-performance electricity generation using amorphous slurry†

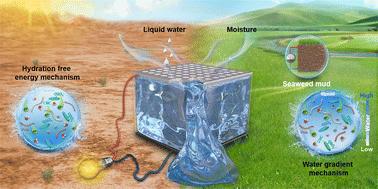

Harvesting ubiquitous water energy through hydrovoltaic technology offers a promising avenue for clean energy and has attracted significant interest. However, current hydrovoltaic systems are plagued by their reliance on a single form of water, which limits their current density to below 5 μA cm−2 when humidity deviates from the optimal level. Here we present a dual-mode water-driven electricity generator (DWEG) that utilizes amorphous slurry to harvest energy from both moisture and liquid water through absorption and evaporation modes, respectively. Leveraging the efficient ion diffusion driven by water gradients at high humidity and the hydration free-energy difference at low relative humidity, this design achieves a current density above 144 μA cm−2 across 5 to 90% relative humidity, and maintains a voltage of 0.7 V for over 420 hours at 90% relative humidity. We demonstrate that DWEG arrays can be readily scaled up to directly power desk lamps for more than five days, or even charge a tablet computer with an aluminum electrode. This work opens a route towards efficient energy harvesting from multiple forms of water energy under all-weather conditions.
