二维电子气体超表面的大太赫兹非线性

Kaixin Yu , Chen Wang , Yongzheng Wen , Yong Tan , Shiqiang Zhao , Renfei Zhang , Jingbo Sun , Ji Zhou
{"title":"二维电子气体超表面的大太赫兹非线性","authors":"Kaixin Yu ,&nbsp;Chen Wang ,&nbsp;Yongzheng Wen ,&nbsp;Yong Tan ,&nbsp;Shiqiang Zhao ,&nbsp;Renfei Zhang ,&nbsp;Jingbo Sun ,&nbsp;Ji Zhou","doi":"10.1016/j.mtelec.2025.100157","DOIUrl":null,"url":null,"abstract":"<div><div>Nonlinear responses in the terahertz (THz) frequency range are essential for advancing THz sources and modulators. However, the development of THz nonlinear materials with efficient second- and third-order nonlinear susceptibilities at room temperature remains challenging. Here, we introduce a THz nonlinear metasurface based on gallium nitride two-dimensional electron gas (2DEG), capable of both second harmonic generation (SHG) and third harmonic generation (THG). By leveraging the magneto-electric coupling mechanism built in the metasurface, we induce anharmonic oscillations of electrons to achieve THz SHG with the effective second-order nonlinear susceptibility reaching 14.3 μm V<sup>-1</sup>. Meanwhile, the localized electric field confinements in the same metasurface structure substantially improve the intrinsic third-order nonlinearity of the 2DEG as well, enhancing the THz THG by over two orders of magnitude. By simply scaling the structure of the metasurface, the working frequency of the intense nonlinear responses can be engineered at will. Our results provide a promising route to efficient THz second- and third-order nonlinearities within a single metasurface, which may open new pathways for developing highly integrated, room-temperature THz sources, as well as further advancements in high-speed electronics.</div></div>","PeriodicalId":100893,"journal":{"name":"Materials Today Electronics","volume":"12 ","pages":"Article 100157"},"PeriodicalIF":0.0000,"publicationDate":"2025-05-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Large terahertz nonlinearity in two-dimensional electron gas metasurface\",\"authors\":\"Kaixin Yu ,&nbsp;Chen Wang ,&nbsp;Yongzheng Wen ,&nbsp;Yong Tan ,&nbsp;Shiqiang Zhao ,&nbsp;Renfei Zhang ,&nbsp;Jingbo Sun ,&nbsp;Ji Zhou\",\"doi\":\"10.1016/j.mtelec.2025.100157\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Nonlinear responses in the terahertz (THz) frequency range are essential for advancing THz sources and modulators. However, the development of THz nonlinear materials with efficient second- and third-order nonlinear susceptibilities at room temperature remains challenging. Here, we introduce a THz nonlinear metasurface based on gallium nitride two-dimensional electron gas (2DEG), capable of both second harmonic generation (SHG) and third harmonic generation (THG). By leveraging the magneto-electric coupling mechanism built in the metasurface, we induce anharmonic oscillations of electrons to achieve THz SHG with the effective second-order nonlinear susceptibility reaching 14.3 μm V<sup>-1</sup>. Meanwhile, the localized electric field confinements in the same metasurface structure substantially improve the intrinsic third-order nonlinearity of the 2DEG as well, enhancing the THz THG by over two orders of magnitude. By simply scaling the structure of the metasurface, the working frequency of the intense nonlinear responses can be engineered at will. Our results provide a promising route to efficient THz second- and third-order nonlinearities within a single metasurface, which may open new pathways for developing highly integrated, room-temperature THz sources, as well as further advancements in high-speed electronics.</div></div>\",\"PeriodicalId\":100893,\"journal\":{\"name\":\"Materials Today Electronics\",\"volume\":\"12 \",\"pages\":\"Article 100157\"},\"PeriodicalIF\":0.0000,\"publicationDate\":\"2025-05-13\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Materials Today Electronics\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S2772949425000233\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Today Electronics","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2772949425000233","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

摘要

太赫兹(THz)频率范围内的非线性响应对于推进太赫兹源和调制器至关重要。然而,在室温下开发具有高效二阶和三阶非线性磁化率的太赫兹非线性材料仍然具有挑战性。本文介绍了一种基于氮化镓二维电子气体(2DEG)的太赫兹非线性超表面,该超表面能够产生二次谐波(SHG)和三次谐波(THG)。利用建立在超表面上的磁电耦合机制,我们诱导电子的非谐波振荡实现了太赫兹SHG,有效二阶非线性磁化率达到14.3 μm V-1。同时,在相同的超表面结构中,局域电场约束也极大地改善了2DEG的本征三阶非线性,使太赫兹THG提高了两个数量级以上。通过简单地调整超表面的结构,可以随意设计强烈非线性响应的工作频率。我们的研究结果为在单个超表面内实现高效的太赫兹二阶和三阶非线性提供了一条有希望的途径,这可能为开发高度集成的室温太赫兹源以及高速电子的进一步发展开辟了新的途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
Large terahertz nonlinearity in two-dimensional electron gas metasurface

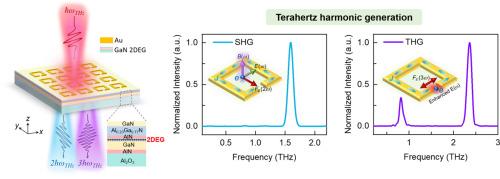

Nonlinear responses in the terahertz (THz) frequency range are essential for advancing THz sources and modulators. However, the development of THz nonlinear materials with efficient second- and third-order nonlinear susceptibilities at room temperature remains challenging. Here, we introduce a THz nonlinear metasurface based on gallium nitride two-dimensional electron gas (2DEG), capable of both second harmonic generation (SHG) and third harmonic generation (THG). By leveraging the magneto-electric coupling mechanism built in the metasurface, we induce anharmonic oscillations of electrons to achieve THz SHG with the effective second-order nonlinear susceptibility reaching 14.3 μm V-1. Meanwhile, the localized electric field confinements in the same metasurface structure substantially improve the intrinsic third-order nonlinearity of the 2DEG as well, enhancing the THz THG by over two orders of magnitude. By simply scaling the structure of the metasurface, the working frequency of the intense nonlinear responses can be engineered at will. Our results provide a promising route to efficient THz second- and third-order nonlinearities within a single metasurface, which may open new pathways for developing highly integrated, room-temperature THz sources, as well as further advancements in high-speed electronics.
