通过超声细胞破坏剪裁铁掺杂的Co3O4纳米颗粒:机理见解和高性能碱性HER电催化剂

IF 9.5 2区 材料科学 Q1 CHEMISTRY, PHYSICAL
Mutian Zhang, Ziying Ji, Shijie Pan, Xiang Liu, Wei Zheng, Jiajia Wang and Guobing Ying
{"title":"通过超声细胞破坏剪裁铁掺杂的Co3O4纳米颗粒:机理见解和高性能碱性HER电催化剂","authors":"Mutian Zhang, Ziying Ji, Shijie Pan, Xiang Liu, Wei Zheng, Jiajia Wang and Guobing Ying","doi":"10.1039/D5TA02409A","DOIUrl":null,"url":null,"abstract":"<p >In this study, Fe-doped Co<small><sub>3</sub></small>O<small><sub>4</sub></small> nanoparticles were synthesized using a hydrothermal method followed by ultrasonic cell disruption to enhance the alkaline hydrogen evolution reaction (HER) performance. Through a dual-modification strategy combining elemental doping and morphology engineering, structural characterization confirmed that Fe doping induces lattice distortions and optimizes the electronic structure, while ultrasonic cell disruption effectively reduces particle size to ∼50 nm and increases active site density. The 10Fe-Co<small><sub>3</sub></small>O<small><sub>4</sub></small> ultrasonicated nanoparticle (UNP) catalyst showed remarkable HER performance, with overpotentials of 210.7 mV and 264.0 mV at 10 and 100 mA cm<small><sup>−2</sup></small>, respectively, and a Tafel slope of 75.2 mV dec<small><sup>−1</sup></small> in 1 M KOH. DFT calculations indicate that Fe doping improves water adsorption, lowers energy barriers in the Volmer and Heyrovsky steps, and shifts the d-band center, thereby accelerating HER kinetics. The 10Fe-Co<small><sub>3</sub></small>O<small><sub>4</sub></small> UNP catalyst also demonstrated excellent durability, maintaining stable performance over 24 hours at high current densities. This work highlights the potential of Fe-doped Co<small><sub>3</sub></small>O<small><sub>4</sub></small> as a cost-effective, high-efficiency, non-noble metal-based catalyst for the HER, providing valuable insights into catalyst design and advancing sustainable hydrogen production technologies.</p>","PeriodicalId":82,"journal":{"name":"Journal of Materials Chemistry A","volume":" 25","pages":" 19732-19741"},"PeriodicalIF":9.5000,"publicationDate":"2025-05-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Tailoring Fe-doped Co3O4 nanoparticles via ultrasonic cell disruption: mechanistic insights and high-performance alkaline HER electrocatalysts†\",\"authors\":\"Mutian Zhang, Ziying Ji, Shijie Pan, Xiang Liu, Wei Zheng, Jiajia Wang and Guobing Ying\",\"doi\":\"10.1039/D5TA02409A\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In this study, Fe-doped Co<small><sub>3</sub></small>O<small><sub>4</sub></small> nanoparticles were synthesized using a hydrothermal method followed by ultrasonic cell disruption to enhance the alkaline hydrogen evolution reaction (HER) performance. Through a dual-modification strategy combining elemental doping and morphology engineering, structural characterization confirmed that Fe doping induces lattice distortions and optimizes the electronic structure, while ultrasonic cell disruption effectively reduces particle size to ∼50 nm and increases active site density. The 10Fe-Co<small><sub>3</sub></small>O<small><sub>4</sub></small> ultrasonicated nanoparticle (UNP) catalyst showed remarkable HER performance, with overpotentials of 210.7 mV and 264.0 mV at 10 and 100 mA cm<small><sup>−2</sup></small>, respectively, and a Tafel slope of 75.2 mV dec<small><sup>−1</sup></small> in 1 M KOH. DFT calculations indicate that Fe doping improves water adsorption, lowers energy barriers in the Volmer and Heyrovsky steps, and shifts the d-band center, thereby accelerating HER kinetics. The 10Fe-Co<small><sub>3</sub></small>O<small><sub>4</sub></small> UNP catalyst also demonstrated excellent durability, maintaining stable performance over 24 hours at high current densities. This work highlights the potential of Fe-doped Co<small><sub>3</sub></small>O<small><sub>4</sub></small> as a cost-effective, high-efficiency, non-noble metal-based catalyst for the HER, providing valuable insights into catalyst design and advancing sustainable hydrogen production technologies.</p>\",\"PeriodicalId\":82,\"journal\":{\"name\":\"Journal of Materials Chemistry A\",\"volume\":\" 25\",\"pages\":\" 19732-19741\"},\"PeriodicalIF\":9.5000,\"publicationDate\":\"2025-05-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry A\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ta/d5ta02409a\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry A","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ta/d5ta02409a","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

本研究采用水热法合成fe掺杂的Co3O4纳米颗粒,然后采用超声波破坏细胞来提高碱性析氢反应(HER)的性能。通过元素掺杂和形貌工程相结合的双改性策略,结构表征证实,Fe掺杂导致晶格畸变并优化电子结构,而超声细胞破坏有效地将颗粒尺寸减小到~50 nm,并增加活性位点密度。10Fe-Co3O4超声纳米颗粒(UNPs)催化剂在10和100 mA/cm2下的过电位分别为210.7 mV和264.0 mV,在1 M KOH下的Tafel斜率为75.2 mV/dec。DFT计算表明,Fe掺杂改善了水吸附,降低了Volmer和Heyrovsky步骤中的能垒,并移动了d带中心,从而加速了HER动力学。10Fe-Co3O4 UNPs催化剂也表现出优异的耐久性,在高电流密度下保持24小时的稳定性能。这项工作强调了铁掺杂Co3O4作为一种经济高效的非贵金属基HER催化剂的潜力,为催化剂设计和推进可持续制氢技术提供了有价值的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Tailoring Fe-doped Co3O4 nanoparticles via ultrasonic cell disruption: mechanistic insights and high-performance alkaline HER electrocatalysts†

Tailoring Fe-doped Co3O4 nanoparticles via ultrasonic cell disruption: mechanistic insights and high-performance alkaline HER electrocatalysts†

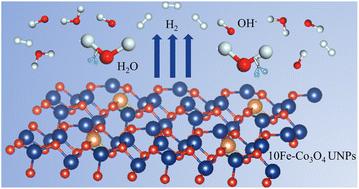

In this study, Fe-doped Co3O4 nanoparticles were synthesized using a hydrothermal method followed by ultrasonic cell disruption to enhance the alkaline hydrogen evolution reaction (HER) performance. Through a dual-modification strategy combining elemental doping and morphology engineering, structural characterization confirmed that Fe doping induces lattice distortions and optimizes the electronic structure, while ultrasonic cell disruption effectively reduces particle size to ∼50 nm and increases active site density. The 10Fe-Co3O4 ultrasonicated nanoparticle (UNP) catalyst showed remarkable HER performance, with overpotentials of 210.7 mV and 264.0 mV at 10 and 100 mA cm−2, respectively, and a Tafel slope of 75.2 mV dec−1 in 1 M KOH. DFT calculations indicate that Fe doping improves water adsorption, lowers energy barriers in the Volmer and Heyrovsky steps, and shifts the d-band center, thereby accelerating HER kinetics. The 10Fe-Co3O4 UNP catalyst also demonstrated excellent durability, maintaining stable performance over 24 hours at high current densities. This work highlights the potential of Fe-doped Co3O4 as a cost-effective, high-efficiency, non-noble metal-based catalyst for the HER, providing valuable insights into catalyst design and advancing sustainable hydrogen production technologies.
