在CT引导下活检时,高管电压条件在CT透视中的实用性:初步研究。

IF 1.1 Q3 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING
Journal of Clinical Imaging Science Pub Date : 2025-04-21 eCollection Date: 2025-01-01 DOI:10.25259/JCIS_7_2025
Kento Furihata, Jun Miyagawa, Naomichi Tamaru, Hiroyuki Kubota
{"title":"在CT引导下活检时,高管电压条件在CT透视中的实用性:初步研究。","authors":"Kento Furihata, Jun Miyagawa, Naomichi Tamaru, Hiroyuki Kubota","doi":"10.25259/JCIS_7_2025","DOIUrl":null,"url":null,"abstract":"<p><strong>Objectives: </strong>Computed tomography (CT)-guided biopsy is often used to increase the safety and accuracy of biopsies for disease diagnosis. However, CT-guided biopsy is associated with metal artifacts from the biopsy needle and increased patient and operator exposure due to frequent CT fluoroscopy. Therefore, we thought it possible to solve this problem by setting the CT fluoroscopy conditions to a higher tube voltage and a lower tube current-time product (high-tube voltage conditions) than recommended. As a preliminary study, metal artifacts, low-contrast detectability, patient and operator's exposure, and visual changes in high-tube voltage conditions were assessed using phantoms and compared with recommended conditions.</p><p><strong>Material and methods: </strong>On an interventional radiology CT system, the phantom was scanned under recommended conditions (120 kV, 30 mAs) and high-tube voltage conditions (135 kV, 30-5 mAs). The metal artifacts and low-contrast detectability of each condition were analyzed and compared using the acquired images. In addition, the phantom surface dose assuming patient exposure and the air dose assuming the operator's standing position were measured and compared. Furthermore, visual assessment was performed by six radiological technologists.</p><p><strong>Results: </strong>Low-contrast detectability was slightly reduced, metal artifacts were significantly lower under high-tube voltage conditions, and patient and operator exposure were lower than the recommended conditions. Furthermore, the findings of the visual assessment were largely consistent with those of the physical assessment.</p><p><strong>Conclusion: </strong>High-tube voltage conditions in CT fluoroscopy during CT-guided biopsy may be useful in reducing metallic artifacts and patient and operator radiation exposure.</p>","PeriodicalId":15512,"journal":{"name":"Journal of Clinical Imaging Science","volume":"15 ","pages":"13"},"PeriodicalIF":1.1000,"publicationDate":"2025-04-21","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12057212/pdf/","citationCount":"0","resultStr":"{\"title\":\"Usefulness of high tube voltage conditions in CT Fluoroscopy during CT-guided biopsy: Preliminary study.\",\"authors\":\"Kento Furihata, Jun Miyagawa, Naomichi Tamaru, Hiroyuki Kubota\",\"doi\":\"10.25259/JCIS_7_2025\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Objectives: </strong>Computed tomography (CT)-guided biopsy is often used to increase the safety and accuracy of biopsies for disease diagnosis. However, CT-guided biopsy is associated with metal artifacts from the biopsy needle and increased patient and operator exposure due to frequent CT fluoroscopy. Therefore, we thought it possible to solve this problem by setting the CT fluoroscopy conditions to a higher tube voltage and a lower tube current-time product (high-tube voltage conditions) than recommended. As a preliminary study, metal artifacts, low-contrast detectability, patient and operator's exposure, and visual changes in high-tube voltage conditions were assessed using phantoms and compared with recommended conditions.</p><p><strong>Material and methods: </strong>On an interventional radiology CT system, the phantom was scanned under recommended conditions (120 kV, 30 mAs) and high-tube voltage conditions (135 kV, 30-5 mAs). The metal artifacts and low-contrast detectability of each condition were analyzed and compared using the acquired images. In addition, the phantom surface dose assuming patient exposure and the air dose assuming the operator's standing position were measured and compared. Furthermore, visual assessment was performed by six radiological technologists.</p><p><strong>Results: </strong>Low-contrast detectability was slightly reduced, metal artifacts were significantly lower under high-tube voltage conditions, and patient and operator exposure were lower than the recommended conditions. Furthermore, the findings of the visual assessment were largely consistent with those of the physical assessment.</p><p><strong>Conclusion: </strong>High-tube voltage conditions in CT fluoroscopy during CT-guided biopsy may be useful in reducing metallic artifacts and patient and operator radiation exposure.</p>\",\"PeriodicalId\":15512,\"journal\":{\"name\":\"Journal of Clinical Imaging Science\",\"volume\":\"15 \",\"pages\":\"13\"},\"PeriodicalIF\":1.1000,\"publicationDate\":\"2025-04-21\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12057212/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Clinical Imaging Science\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.25259/JCIS_7_2025\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/1/1 0:00:00\",\"PubModel\":\"eCollection\",\"JCR\":\"Q3\",\"JCRName\":\"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Clinical Imaging Science","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.25259/JCIS_7_2025","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/1/1 0:00:00","PubModel":"eCollection","JCR":"Q3","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0

摘要

目的:计算机断层扫描(CT)引导活检常用于提高疾病诊断活检的安全性和准确性。然而,CT引导下的活检与活检针产生的金属伪影有关,并且由于频繁的CT透视检查增加了患者和操作人员的暴露。因此,我们认为可以通过将CT透视条件设置为比推荐的更高的管电压和更低的管电流时间积(高管电压条件)来解决这个问题。作为初步研究,使用幻影评估了高管电压条件下的金属伪影、低对比度可检测性、患者和操作人员的暴露以及视觉变化,并与推荐条件进行了比较。材料和方法:在介入CT系统上,在推荐条件(120 kV, 30 mAs)和高管电压条件(135 kV, 30-5 mAs)下扫描幻膜。利用采集到的图像,对每种情况下的金属伪影和低对比度可检测性进行了分析和比较。此外,还测量和比较了假定患者暴露的幻影表面剂量和假定操作者站立位置的空气剂量。此外,由6名放射技师进行视觉评估。结果:在高管电压条件下,低对比度可检测性略有降低,金属伪影明显降低,患者和操作人员的暴露低于推荐条件。此外,视觉评估的结果与身体评估的结果基本一致。结论:在CT引导下活检时,CT透视下的高管电压条件可能有助于减少金属伪影和患者和操作人员的辐射暴露。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
Usefulness of high tube voltage conditions in CT Fluoroscopy during CT-guided biopsy: Preliminary study.

Objectives: Computed tomography (CT)-guided biopsy is often used to increase the safety and accuracy of biopsies for disease diagnosis. However, CT-guided biopsy is associated with metal artifacts from the biopsy needle and increased patient and operator exposure due to frequent CT fluoroscopy. Therefore, we thought it possible to solve this problem by setting the CT fluoroscopy conditions to a higher tube voltage and a lower tube current-time product (high-tube voltage conditions) than recommended. As a preliminary study, metal artifacts, low-contrast detectability, patient and operator's exposure, and visual changes in high-tube voltage conditions were assessed using phantoms and compared with recommended conditions.

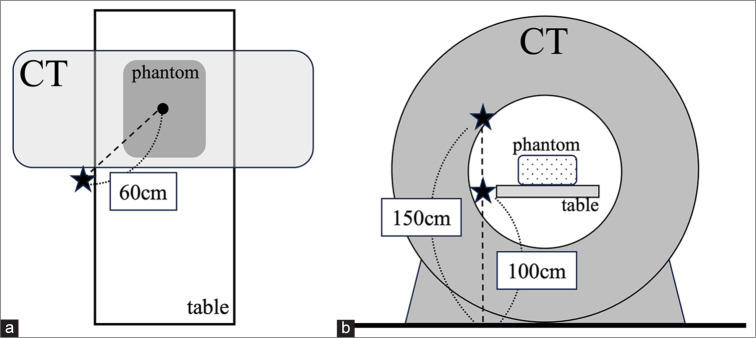

Material and methods: On an interventional radiology CT system, the phantom was scanned under recommended conditions (120 kV, 30 mAs) and high-tube voltage conditions (135 kV, 30-5 mAs). The metal artifacts and low-contrast detectability of each condition were analyzed and compared using the acquired images. In addition, the phantom surface dose assuming patient exposure and the air dose assuming the operator's standing position were measured and compared. Furthermore, visual assessment was performed by six radiological technologists.

Results: Low-contrast detectability was slightly reduced, metal artifacts were significantly lower under high-tube voltage conditions, and patient and operator exposure were lower than the recommended conditions. Furthermore, the findings of the visual assessment were largely consistent with those of the physical assessment.

Conclusion: High-tube voltage conditions in CT fluoroscopy during CT-guided biopsy may be useful in reducing metallic artifacts and patient and operator radiation exposure.
