{"title":"基于超声图像的深度学习预测上皮性卵巢癌患者的铂耐药性。","authors":"Chang Su, Kuo Miao, Liwei Zhang, Xiaoqiu Dong","doi":"10.1186/s12938-025-01391-8","DOIUrl":null,"url":null,"abstract":"<p><strong>Background: </strong>The study aimed at developing and validating a deep learning (DL) model based on the ultrasound imaging for predicting the platinum resistance of patients with epithelial ovarian cancer (EOC).</p><p><strong>Methods: </strong>392 patients were enrolled in this retrospective study who had been diagnosed with EOC between 2014 and 2020 and underwent pelvic ultrasound before initial treatment. A DL model was developed to predict patients' platinum resistance, and the model underwent evaluation through receiver-operating characteristic (ROC) curves, decision curve analysis (DCA), and calibration curve.</p><p><strong>Results: </strong>The ROC curves showed that the area under the curve (AUC) of the DL model for predicting patients' platinum resistance in the internal and external test sets were 0.86 (95% CI 0.83-0.90) and 0.86 (95% CI 0.84-0.89), respectively. The model demonstrated high clinical value through clinical decision curve analysis and exhibited good calibration efficiency in the training cohort. Kaplan-Meier analyses showed that the model's optimal cutoff value successfully distinguished between patients at high and low risk of recurrence, with hazard ratios of 3.1 (95% CI 2.3-4.1, P < 0.0001) and 2.9 (95% CI 2.3-3.9; P < 0.0001) in the high-risk group of the internal and external test sets, serving as a prognostic indicator.</p><p><strong>Conclusions: </strong>The DL model based on ultrasound imaging can predict platinum resistance in patients with EOC and may support clinicians in making the most appropriate treatment decisions.</p>","PeriodicalId":8927,"journal":{"name":"BioMedical Engineering OnLine","volume":"24 1","pages":"58"},"PeriodicalIF":2.9000,"publicationDate":"2025-05-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12070594/pdf/","citationCount":"0","resultStr":"{\"title\":\"Deep learning based on ultrasound images to predict platinum resistance in patients with epithelial ovarian cancer.\",\"authors\":\"Chang Su, Kuo Miao, Liwei Zhang, Xiaoqiu Dong\",\"doi\":\"10.1186/s12938-025-01391-8\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Background: </strong>The study aimed at developing and validating a deep learning (DL) model based on the ultrasound imaging for predicting the platinum resistance of patients with epithelial ovarian cancer (EOC).</p><p><strong>Methods: </strong>392 patients were enrolled in this retrospective study who had been diagnosed with EOC between 2014 and 2020 and underwent pelvic ultrasound before initial treatment. A DL model was developed to predict patients' platinum resistance, and the model underwent evaluation through receiver-operating characteristic (ROC) curves, decision curve analysis (DCA), and calibration curve.</p><p><strong>Results: </strong>The ROC curves showed that the area under the curve (AUC) of the DL model for predicting patients' platinum resistance in the internal and external test sets were 0.86 (95% CI 0.83-0.90) and 0.86 (95% CI 0.84-0.89), respectively. The model demonstrated high clinical value through clinical decision curve analysis and exhibited good calibration efficiency in the training cohort. Kaplan-Meier analyses showed that the model's optimal cutoff value successfully distinguished between patients at high and low risk of recurrence, with hazard ratios of 3.1 (95% CI 2.3-4.1, P < 0.0001) and 2.9 (95% CI 2.3-3.9; P < 0.0001) in the high-risk group of the internal and external test sets, serving as a prognostic indicator.</p><p><strong>Conclusions: </strong>The DL model based on ultrasound imaging can predict platinum resistance in patients with EOC and may support clinicians in making the most appropriate treatment decisions.</p>\",\"PeriodicalId\":8927,\"journal\":{\"name\":\"BioMedical Engineering OnLine\",\"volume\":\"24 1\",\"pages\":\"58\"},\"PeriodicalIF\":2.9000,\"publicationDate\":\"2025-05-13\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12070594/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"BioMedical Engineering OnLine\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://doi.org/10.1186/s12938-025-01391-8\",\"RegionNum\":4,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q3\",\"JCRName\":\"ENGINEERING, BIOMEDICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"BioMedical Engineering OnLine","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1186/s12938-025-01391-8","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"ENGINEERING, BIOMEDICAL","Score":null,"Total":0}
引用次数: 0
摘要
背景:本研究旨在建立和验证基于超声成像的深度学习(DL)模型,用于预测上皮性卵巢癌(EOC)患者的铂耐药性。方法:回顾性研究392例2014 - 2020年间诊断为EOC并在初始治疗前行盆腔超声检查的患者。建立DL模型预测患者铂耐药性,并通过受试者工作特征(ROC)曲线、决策曲线分析(DCA)和校准曲线对模型进行评价。结果:ROC曲线显示,DL模型预测患者内、外两组铂电阻的曲线下面积(AUC)分别为0.86 (95% CI 0.83-0.90)和0.86 (95% CI 0.84-0.89)。通过临床决策曲线分析,该模型具有较高的临床应用价值,在培训队列中具有良好的校准效率。Kaplan-Meier分析显示,该模型的最佳截断值成功区分了复发风险高和低的患者,风险比为3.1 (95% CI为2.3-4.1,P)。结论:基于超声成像的DL模型可以预测EOC患者的铂耐药,可以支持临床医生做出最合适的治疗决策。
Deep learning based on ultrasound images to predict platinum resistance in patients with epithelial ovarian cancer.
Background: The study aimed at developing and validating a deep learning (DL) model based on the ultrasound imaging for predicting the platinum resistance of patients with epithelial ovarian cancer (EOC).

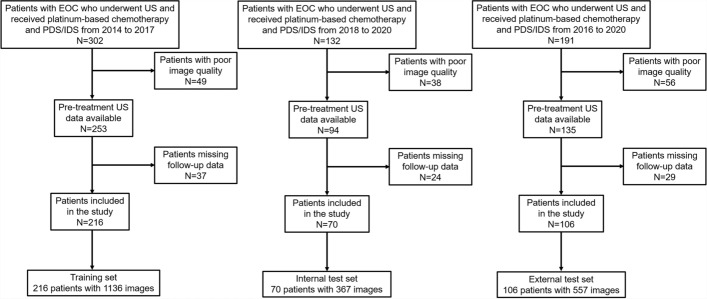

Methods: 392 patients were enrolled in this retrospective study who had been diagnosed with EOC between 2014 and 2020 and underwent pelvic ultrasound before initial treatment. A DL model was developed to predict patients' platinum resistance, and the model underwent evaluation through receiver-operating characteristic (ROC) curves, decision curve analysis (DCA), and calibration curve.

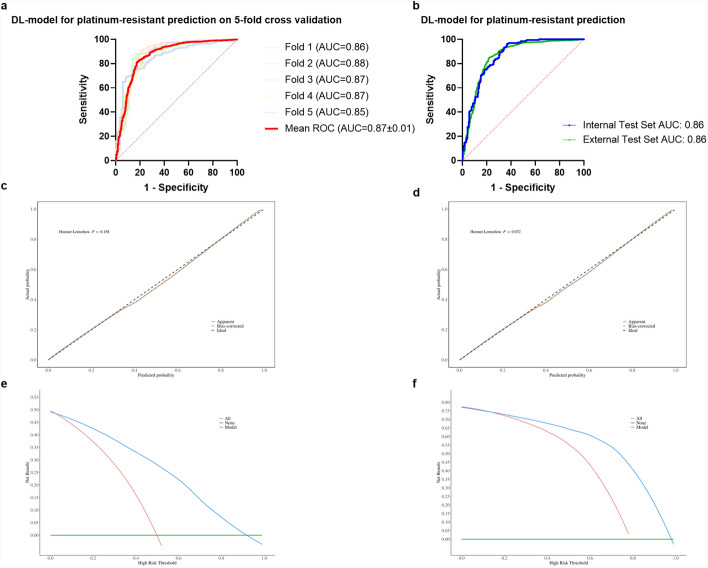

Results: The ROC curves showed that the area under the curve (AUC) of the DL model for predicting patients' platinum resistance in the internal and external test sets were 0.86 (95% CI 0.83-0.90) and 0.86 (95% CI 0.84-0.89), respectively. The model demonstrated high clinical value through clinical decision curve analysis and exhibited good calibration efficiency in the training cohort. Kaplan-Meier analyses showed that the model's optimal cutoff value successfully distinguished between patients at high and low risk of recurrence, with hazard ratios of 3.1 (95% CI 2.3-4.1, P < 0.0001) and 2.9 (95% CI 2.3-3.9; P < 0.0001) in the high-risk group of the internal and external test sets, serving as a prognostic indicator.
Conclusions: The DL model based on ultrasound imaging can predict platinum resistance in patients with EOC and may support clinicians in making the most appropriate treatment decisions.
