柔性的,可回收的,高导电性的自愈合聚合物基相变膜热管理

IF 19 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Minqiang Wu, Yimin Xuan, Xianglei Liu, Yaoge Jing, Tingxian Li
{"title":"柔性的,可回收的,高导电性的自愈合聚合物基相变膜热管理","authors":"Minqiang Wu, Yimin Xuan, Xianglei Liu, Yaoge Jing, Tingxian Li","doi":"10.1002/adfm.202506229","DOIUrl":null,"url":null,"abstract":"Phase change materials (PCMs) hold significant promise for thermal energy storage and management. However, challenges such as low thermal conductivity, liquid leakage, solid rigidity, and poor recyclability hinder their practical applications. Herein, a facile yet effective strategy for fabricating highly conductive, flexible, and recyclable polymer-based phase change composites (PCCs) is proposed. The physically crosslinked dual polymer networks endow the PCC film with excellent latent heat (158.6 J g<sup>−1</sup>), tunable mechanical stress (3.95–8.59 MPa), thermal-regenerating capability, and recyclability utilization. By utilizing the shear-induced alignment of graphite nanoplatelets (GNPs), the proposed PCC films demonstrate a remarkable thermal conductivity of 6.24 W m<sup>−1</sup> K<sup>−1</sup> at a GNP loading of 10 wt.%, achieving a thermal conductivity enhancement efficiency of 302%. Moreover, the flexible PCCs-based energy device demonstrates effective thermal regulation in electronic devices and wearable thermal management. This work provides a cost-effective avenue for the scalable fabrication of thermally conductive, flexible, and recyclable PCCs toward various thermal management applications.","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"227 1","pages":""},"PeriodicalIF":19.0000,"publicationDate":"2025-05-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Flexible, Recyclable, and Highly Conductive Self-Healing Polymer-Based Phase Change Films for Thermal Management\",\"authors\":\"Minqiang Wu, Yimin Xuan, Xianglei Liu, Yaoge Jing, Tingxian Li\",\"doi\":\"10.1002/adfm.202506229\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Phase change materials (PCMs) hold significant promise for thermal energy storage and management. However, challenges such as low thermal conductivity, liquid leakage, solid rigidity, and poor recyclability hinder their practical applications. Herein, a facile yet effective strategy for fabricating highly conductive, flexible, and recyclable polymer-based phase change composites (PCCs) is proposed. The physically crosslinked dual polymer networks endow the PCC film with excellent latent heat (158.6 J g<sup>−1</sup>), tunable mechanical stress (3.95–8.59 MPa), thermal-regenerating capability, and recyclability utilization. By utilizing the shear-induced alignment of graphite nanoplatelets (GNPs), the proposed PCC films demonstrate a remarkable thermal conductivity of 6.24 W m<sup>−1</sup> K<sup>−1</sup> at a GNP loading of 10 wt.%, achieving a thermal conductivity enhancement efficiency of 302%. Moreover, the flexible PCCs-based energy device demonstrates effective thermal regulation in electronic devices and wearable thermal management. This work provides a cost-effective avenue for the scalable fabrication of thermally conductive, flexible, and recyclable PCCs toward various thermal management applications.\",\"PeriodicalId\":112,\"journal\":{\"name\":\"Advanced Functional Materials\",\"volume\":\"227 1\",\"pages\":\"\"},\"PeriodicalIF\":19.0000,\"publicationDate\":\"2025-05-07\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Functional Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1002/adfm.202506229\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adfm.202506229","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

相变材料(PCMs)在热能储存和管理方面具有重要的前景。然而,诸如导热系数低、液体泄漏、固体刚性和可回收性差等挑战阻碍了它们的实际应用。本文提出了一种简单而有效的制造高导电、柔性和可回收聚合物基相变复合材料(PCCs)的策略。物理交联的双聚合物网络使PCC薄膜具有优良的潜热(158.6 J g−1)、可调的机械应力(3.95 ~ 8.59 MPa)、热再生能力和可回收利用性。通过利用石墨纳米片(GNPs)的剪切诱导排列,所提出的PCC薄膜在GNP负载为10 wt.%时表现出6.24 W m−1 K−1的显著导热性,实现了302%的导热增强效率。此外,基于柔性pccs的能量器件在电子器件和可穿戴热管理中显示出有效的热调节。这项工作为导热、柔性和可回收的PCCs的可扩展制造提供了一条经济有效的途径,可用于各种热管理应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Flexible, Recyclable, and Highly Conductive Self-Healing Polymer-Based Phase Change Films for Thermal Management

Flexible, Recyclable, and Highly Conductive Self-Healing Polymer-Based Phase Change Films for Thermal Management

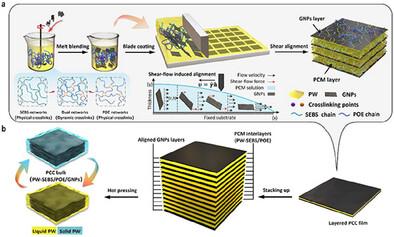

Phase change materials (PCMs) hold significant promise for thermal energy storage and management. However, challenges such as low thermal conductivity, liquid leakage, solid rigidity, and poor recyclability hinder their practical applications. Herein, a facile yet effective strategy for fabricating highly conductive, flexible, and recyclable polymer-based phase change composites (PCCs) is proposed. The physically crosslinked dual polymer networks endow the PCC film with excellent latent heat (158.6 J g−1), tunable mechanical stress (3.95–8.59 MPa), thermal-regenerating capability, and recyclability utilization. By utilizing the shear-induced alignment of graphite nanoplatelets (GNPs), the proposed PCC films demonstrate a remarkable thermal conductivity of 6.24 W m−1 K−1 at a GNP loading of 10 wt.%, achieving a thermal conductivity enhancement efficiency of 302%. Moreover, the flexible PCCs-based energy device demonstrates effective thermal regulation in electronic devices and wearable thermal management. This work provides a cost-effective avenue for the scalable fabrication of thermally conductive, flexible, and recyclable PCCs toward various thermal management applications.
