三元有机太阳能电池中星形非富勒烯受体的合理化:形态调解促进激子和载流子动力学

IF 19 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Zhiyuan Wu, Weiyi Wang, Hui Qian, Ziqi Liang
{"title":"三元有机太阳能电池中星形非富勒烯受体的合理化:形态调解促进激子和载流子动力学","authors":"Zhiyuan Wu, Weiyi Wang, Hui Qian, Ziqi Liang","doi":"10.1002/adfm.202506436","DOIUrl":null,"url":null,"abstract":"Star-shaped trimeric acceptors have garnered increasing attention in organic solar cells (OSCs), yet a mechanistic gap exists on regulation of morphology and carrier dynamics. Herein, a nonfullerene acceptor named BTF-Trimer bearing a benzotrifuran core with more electronegative oxygen atoms is newly designed, which fosters intermolecular interactions with both polymer donors and small-molecule acceptors. BTF-Trimer possesses reduced aggregation tendencies and a high glass transition temperature, which are conducive to inhibiting excessive aggregation of acceptor phases and stabilizing film morphology, respectively. Notably, BTF-Trimer as morphology mediator strengthened host donor-acceptor compatibility in ternary blend active layers, forming dual-fibril interpenetrating networks that promoted exciton dissociation and hole transfer as well as alleviated bimolecular recombination in devices. Consequently, the power conversion efficiency and <i>T</i><sub>70</sub> (the time required to reach 70% of the initial efficiency) lifetime of the ternary OSCs in an Ar atmosphere achieved 19.13% and ≈2800 h, respectively. This study highlights the distinctive merits of star-shaped acceptors as to suppress over-crystallization and enhance phase continuity, offering insights into the interplay of phase-separated morphology and carrier dynamics, which plays a critical role in ternary devices.","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"102 1","pages":""},"PeriodicalIF":19.0000,"publicationDate":"2025-05-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Rationalizing Star-Shaped Nonfullerene Acceptors in Ternary Organic Solar Cells: Morphology Mediation Facilitates Exciton and Carrier Dynamics\",\"authors\":\"Zhiyuan Wu, Weiyi Wang, Hui Qian, Ziqi Liang\",\"doi\":\"10.1002/adfm.202506436\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Star-shaped trimeric acceptors have garnered increasing attention in organic solar cells (OSCs), yet a mechanistic gap exists on regulation of morphology and carrier dynamics. Herein, a nonfullerene acceptor named BTF-Trimer bearing a benzotrifuran core with more electronegative oxygen atoms is newly designed, which fosters intermolecular interactions with both polymer donors and small-molecule acceptors. BTF-Trimer possesses reduced aggregation tendencies and a high glass transition temperature, which are conducive to inhibiting excessive aggregation of acceptor phases and stabilizing film morphology, respectively. Notably, BTF-Trimer as morphology mediator strengthened host donor-acceptor compatibility in ternary blend active layers, forming dual-fibril interpenetrating networks that promoted exciton dissociation and hole transfer as well as alleviated bimolecular recombination in devices. Consequently, the power conversion efficiency and <i>T</i><sub>70</sub> (the time required to reach 70% of the initial efficiency) lifetime of the ternary OSCs in an Ar atmosphere achieved 19.13% and ≈2800 h, respectively. This study highlights the distinctive merits of star-shaped acceptors as to suppress over-crystallization and enhance phase continuity, offering insights into the interplay of phase-separated morphology and carrier dynamics, which plays a critical role in ternary devices.\",\"PeriodicalId\":112,\"journal\":{\"name\":\"Advanced Functional Materials\",\"volume\":\"102 1\",\"pages\":\"\"},\"PeriodicalIF\":19.0000,\"publicationDate\":\"2025-05-07\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Functional Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1002/adfm.202506436\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adfm.202506436","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

星形三聚体受体在有机太阳能电池(OSCs)中受到越来越多的关注,但在形态和载流子动力学调控方面存在机制上的空白。本文设计了一种名为BTF-Trimer的非富勒烯受体,其核心是具有更多电负性氧原子的苯三氟醚,可促进与聚合物供体和小分子受体的分子间相互作用。BTF-Trimer具有较低的聚集倾向和较高的玻璃化转变温度,分别有利于抑制受体相的过度聚集和稳定膜形态。值得注意的是,BTF-Trimer作为形态介质增强了三元共混活性层中的宿主-供体-受体相容性,形成双纤维互穿网络,促进激子解离和空穴转移,减轻器件中的双分子重组。因此,三元osc在Ar气氛下的功率转换效率和T70(达到初始效率70%所需的时间)寿命分别达到19.13%和≈2800 h。该研究突出了星形受体在抑制过结晶和增强相连续性方面的独特优点,为相分离形态和载流子动力学的相互作用提供了见解,这在三元器件中起着关键作用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Rationalizing Star-Shaped Nonfullerene Acceptors in Ternary Organic Solar Cells: Morphology Mediation Facilitates Exciton and Carrier Dynamics

Rationalizing Star-Shaped Nonfullerene Acceptors in Ternary Organic Solar Cells: Morphology Mediation Facilitates Exciton and Carrier Dynamics

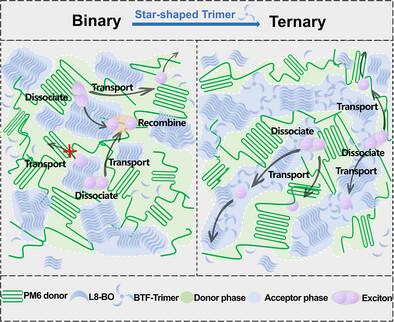

Star-shaped trimeric acceptors have garnered increasing attention in organic solar cells (OSCs), yet a mechanistic gap exists on regulation of morphology and carrier dynamics. Herein, a nonfullerene acceptor named BTF-Trimer bearing a benzotrifuran core with more electronegative oxygen atoms is newly designed, which fosters intermolecular interactions with both polymer donors and small-molecule acceptors. BTF-Trimer possesses reduced aggregation tendencies and a high glass transition temperature, which are conducive to inhibiting excessive aggregation of acceptor phases and stabilizing film morphology, respectively. Notably, BTF-Trimer as morphology mediator strengthened host donor-acceptor compatibility in ternary blend active layers, forming dual-fibril interpenetrating networks that promoted exciton dissociation and hole transfer as well as alleviated bimolecular recombination in devices. Consequently, the power conversion efficiency and T70 (the time required to reach 70% of the initial efficiency) lifetime of the ternary OSCs in an Ar atmosphere achieved 19.13% and ≈2800 h, respectively. This study highlights the distinctive merits of star-shaped acceptors as to suppress over-crystallization and enhance phase continuity, offering insights into the interplay of phase-separated morphology and carrier dynamics, which plays a critical role in ternary devices.
