交联杂链聚合物界面使富锂锰基锂金属电池稳定循环

IF 27.4 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Wen-hui Hou, Qingqing Feng, Cheng Liu, Xiaole Zhang, Junpei Yue, Qi Tian, Shanbin Wu, Yu Ou, Pan Zhou, Yingchun Xia, Yan Wang, Xuan Song, Haiyu Zhou, Yang Lu, Shuaishuai Yan, Kai Liu
{"title":"交联杂链聚合物界面使富锂锰基锂金属电池稳定循环","authors":"Wen-hui Hou, Qingqing Feng, Cheng Liu, Xiaole Zhang, Junpei Yue, Qi Tian, Shanbin Wu, Yu Ou, Pan Zhou, Yingchun Xia, Yan Wang, Xuan Song, Haiyu Zhou, Yang Lu, Shuaishuai Yan, Kai Liu","doi":"10.1002/adma.202503893","DOIUrl":null,"url":null,"abstract":"The lithium-rich manganese-based layered oxide (LRMO) cathode shows grar promise for high-energy density and environment-friendly batteries due to its cation and anion redox. However, it suffers from continuous electrolyte consumption and capacity decay, especially at high mass loadings (&gt;10 mg cm<sup>−2</sup>). Conventional electrolyte/interphase strategies fail to address the structural characteristics of LRMO, limiting its practical application. Here, we reveal the specific requirements for cathode electrolyte interphase (CEI) of LRMO and accordingly design a non-fluorinated additive, 2,4,6-trivinyl-2,4,6-trimethylcyclotrisiloxane (TVTMS). TVTMS could form a crosslinked hetero-chain polymeric CEI (CHP-CEI) through ring-opening polymerization and ethylene group crosslinking, offering a unique balance of high robustness, flexibility, and mechanical energy dissipation, which could not be achieved by conventional additives. Therefore, the cracking of LRMO cathode, gas release and transition metal dissolution were effectively mitigated. It should be noted that, for the first time to our knowledge, we employed the single-particle aerosol mass spectrometry (SPAMS) to study CEI components, especially the organic/polymer species. The Li|LRMO cells based on CHP-CEI display a lifespan &gt;825 cycles with remained capacity of 204 mAh g<sup>−1</sup> and the cells with high-loading cathode (12 mg cm<sup>−2</sup>) achieve stable cycling &gt;145 cycles with 80% capacity retention, which surpasses the performance of previously reported electrolytes.","PeriodicalId":114,"journal":{"name":"Advanced Materials","volume":"75 1","pages":""},"PeriodicalIF":27.4000,"publicationDate":"2025-05-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Crosslinked Hetero-Chain Polymeric Interphase Enables the Stable Cycling of Li-Rich Mn-Based Lithium Metal Batteries\",\"authors\":\"Wen-hui Hou, Qingqing Feng, Cheng Liu, Xiaole Zhang, Junpei Yue, Qi Tian, Shanbin Wu, Yu Ou, Pan Zhou, Yingchun Xia, Yan Wang, Xuan Song, Haiyu Zhou, Yang Lu, Shuaishuai Yan, Kai Liu\",\"doi\":\"10.1002/adma.202503893\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"The lithium-rich manganese-based layered oxide (LRMO) cathode shows grar promise for high-energy density and environment-friendly batteries due to its cation and anion redox. However, it suffers from continuous electrolyte consumption and capacity decay, especially at high mass loadings (&gt;10 mg cm<sup>−2</sup>). Conventional electrolyte/interphase strategies fail to address the structural characteristics of LRMO, limiting its practical application. Here, we reveal the specific requirements for cathode electrolyte interphase (CEI) of LRMO and accordingly design a non-fluorinated additive, 2,4,6-trivinyl-2,4,6-trimethylcyclotrisiloxane (TVTMS). TVTMS could form a crosslinked hetero-chain polymeric CEI (CHP-CEI) through ring-opening polymerization and ethylene group crosslinking, offering a unique balance of high robustness, flexibility, and mechanical energy dissipation, which could not be achieved by conventional additives. Therefore, the cracking of LRMO cathode, gas release and transition metal dissolution were effectively mitigated. It should be noted that, for the first time to our knowledge, we employed the single-particle aerosol mass spectrometry (SPAMS) to study CEI components, especially the organic/polymer species. The Li|LRMO cells based on CHP-CEI display a lifespan &gt;825 cycles with remained capacity of 204 mAh g<sup>−1</sup> and the cells with high-loading cathode (12 mg cm<sup>−2</sup>) achieve stable cycling &gt;145 cycles with 80% capacity retention, which surpasses the performance of previously reported electrolytes.\",\"PeriodicalId\":114,\"journal\":{\"name\":\"Advanced Materials\",\"volume\":\"75 1\",\"pages\":\"\"},\"PeriodicalIF\":27.4000,\"publicationDate\":\"2025-05-06\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1002/adma.202503893\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adma.202503893","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

富锂锰基层状氧化物(LRMO)阴极由于其正离子和阴离子氧化还原,在高能量密度和环境友好型电池中显示出巨大的前景。然而,它遭受持续的电解质消耗和容量衰减,特别是在高质量负载(>10 mg cm−2)。传统的电解质/间相策略无法解决LRMO的结构特点,限制了其实际应用。本文揭示了LRMO对阴极电解质间相(CEI)的具体要求,并据此设计了一种无氟添加剂2,4,6-三乙烯基-2,4,6-三甲基环三硅氧烷(TVTMS)。TVTMS可以通过开环聚合和乙烯基团交联形成交联的杂链聚合物CEI (CHP-CEI),具有传统添加剂无法达到的高鲁棒性、柔韧性和机械耗能的独特平衡。因此,有效地减轻了LRMO阴极的开裂、气体释放和过渡金属的溶解。值得注意的是,据我们所知,我们首次使用了单粒子气溶胶质谱(SPAMS)来研究CEI组分,特别是有机/聚合物组分。基于CHP-CEI的Li|LRMO电池的寿命为825次循环,剩余容量为204 mAh g - 1,高负载阴极(12 mg cm - 2)电池的稳定循环为145次循环,容量保留率为80%,优于先前报道的电解质的性能。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Crosslinked Hetero-Chain Polymeric Interphase Enables the Stable Cycling of Li-Rich Mn-Based Lithium Metal Batteries

Crosslinked Hetero-Chain Polymeric Interphase Enables the Stable Cycling of Li-Rich Mn-Based Lithium Metal Batteries

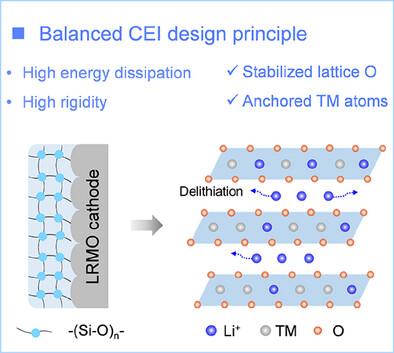

The lithium-rich manganese-based layered oxide (LRMO) cathode shows grar promise for high-energy density and environment-friendly batteries due to its cation and anion redox. However, it suffers from continuous electrolyte consumption and capacity decay, especially at high mass loadings (>10 mg cm−2). Conventional electrolyte/interphase strategies fail to address the structural characteristics of LRMO, limiting its practical application. Here, we reveal the specific requirements for cathode electrolyte interphase (CEI) of LRMO and accordingly design a non-fluorinated additive, 2,4,6-trivinyl-2,4,6-trimethylcyclotrisiloxane (TVTMS). TVTMS could form a crosslinked hetero-chain polymeric CEI (CHP-CEI) through ring-opening polymerization and ethylene group crosslinking, offering a unique balance of high robustness, flexibility, and mechanical energy dissipation, which could not be achieved by conventional additives. Therefore, the cracking of LRMO cathode, gas release and transition metal dissolution were effectively mitigated. It should be noted that, for the first time to our knowledge, we employed the single-particle aerosol mass spectrometry (SPAMS) to study CEI components, especially the organic/polymer species. The Li|LRMO cells based on CHP-CEI display a lifespan >825 cycles with remained capacity of 204 mAh g−1 and the cells with high-loading cathode (12 mg cm−2) achieve stable cycling >145 cycles with 80% capacity retention, which surpasses the performance of previously reported electrolytes.
