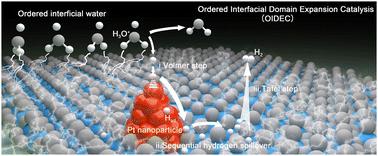

{"title":"有序界面扩展催化促进质子交换膜电解的析氢","authors":"Shu-Hong Yu, Mingrong Qu, Yu-Xiao Cheng, Sihua Feng, Jie Xu, JiaKang Yao, Wensheng Yan, Sheng Zhu, Liang Cao, Rui Wu","doi":"10.1039/d5ee00441a","DOIUrl":null,"url":null,"abstract":"Metal/metal oxide composites represent a promising group of catalysts that can substantially reduce the platinum group metal (PGM) loading at the cathode for proton exchange membrane water electrolysis (PEM-WE). However, the complete hydrogen evolution reaction (HER) kinetics at the complex metal/support interface are not fully understood. Here, using Pt nanoparticles on boron-modified oxygen-defective tungsten oxide (Pt/B-WO2.9) as a model system, we establish an overall kinetic framework induced by strong metal-oxide interaction, termed as ordered interfacial domain expansion catalysis (OIDEC), to elucidate the hydrogen behavior through combining in-situ spectroscopic, in-situ electrochemical, and theoretical calculation studies. This mechanism allows favorable proton adsorption on active site (Pt) from ordered interfacial water, sequential hydrogen spillover from active site (Pt) to auxiliary sites (W, O), and direct H-H coupling on auxiliary sites (W, O) for H2 evolution. In a practical PEM-WE device, Pt/B-WO2.9 shows high mass activity (1237 A mgPt-1 at 1.8 V) with a total Pt loading of 8.6×10-4 mg cm−2 and outstanding durability over 850 h multistep operation at industrial current densities from 1 to 2 A cm⁻² and 60°C.","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":"14 1","pages":""},"PeriodicalIF":32.4000,"publicationDate":"2025-04-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Ordered Interfacial Domain Expansion Catalysis Enhances Hydrogen Evolution for Proton Exchange Membrane Electrolysis\",\"authors\":\"Shu-Hong Yu, Mingrong Qu, Yu-Xiao Cheng, Sihua Feng, Jie Xu, JiaKang Yao, Wensheng Yan, Sheng Zhu, Liang Cao, Rui Wu\",\"doi\":\"10.1039/d5ee00441a\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Metal/metal oxide composites represent a promising group of catalysts that can substantially reduce the platinum group metal (PGM) loading at the cathode for proton exchange membrane water electrolysis (PEM-WE). However, the complete hydrogen evolution reaction (HER) kinetics at the complex metal/support interface are not fully understood. Here, using Pt nanoparticles on boron-modified oxygen-defective tungsten oxide (Pt/B-WO2.9) as a model system, we establish an overall kinetic framework induced by strong metal-oxide interaction, termed as ordered interfacial domain expansion catalysis (OIDEC), to elucidate the hydrogen behavior through combining in-situ spectroscopic, in-situ electrochemical, and theoretical calculation studies. This mechanism allows favorable proton adsorption on active site (Pt) from ordered interfacial water, sequential hydrogen spillover from active site (Pt) to auxiliary sites (W, O), and direct H-H coupling on auxiliary sites (W, O) for H2 evolution. In a practical PEM-WE device, Pt/B-WO2.9 shows high mass activity (1237 A mgPt-1 at 1.8 V) with a total Pt loading of 8.6×10-4 mg cm−2 and outstanding durability over 850 h multistep operation at industrial current densities from 1 to 2 A cm⁻² and 60°C.\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\"14 1\",\"pages\":\"\"},\"PeriodicalIF\":32.4000,\"publicationDate\":\"2025-04-25\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1039/d5ee00441a\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1039/d5ee00441a","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
金属/金属氧化物复合材料是一种很有前途的催化剂,可以大幅减少质子交换膜电解(PEM-WE)阴极上铂族金属(PGM)的负载。然而,在复杂的金属/载体界面上完整的析氢反应(HER)动力学尚不完全清楚。本研究以硼修饰氧缺陷氧化钨(Pt/B-WO2.9)上的Pt纳米颗粒为模型体系,建立了由强金属-氧化物相互作用诱导的整体动力学框架,即有序界面域扩展催化(OIDEC),并结合原位光谱、原位电化学和理论计算研究来阐明氢的行为。该机制允许质子在有序界面水的活性位点(Pt)上吸附,氢从活性位点(Pt)向辅助位点(W, O)的顺序溢出,以及在辅助位点(W, O)上直接H-H偶联以进行H2演化。在实际的PEM-WE器件中,Pt/B-WO2.9显示出高质量活性(在1.8 V时1237 a mgPt-1),总Pt负载为8.6×10-4 mg cm - 2,并且在工业电流密度从1到2 a cm - 2和60°C下,具有超过850小时的多步操作耐久性。
Metal/metal oxide composites represent a promising group of catalysts that can substantially reduce the platinum group metal (PGM) loading at the cathode for proton exchange membrane water electrolysis (PEM-WE). However, the complete hydrogen evolution reaction (HER) kinetics at the complex metal/support interface are not fully understood. Here, using Pt nanoparticles on boron-modified oxygen-defective tungsten oxide (Pt/B-WO2.9) as a model system, we establish an overall kinetic framework induced by strong metal-oxide interaction, termed as ordered interfacial domain expansion catalysis (OIDEC), to elucidate the hydrogen behavior through combining in-situ spectroscopic, in-situ electrochemical, and theoretical calculation studies. This mechanism allows favorable proton adsorption on active site (Pt) from ordered interfacial water, sequential hydrogen spillover from active site (Pt) to auxiliary sites (W, O), and direct H-H coupling on auxiliary sites (W, O) for H2 evolution. In a practical PEM-WE device, Pt/B-WO2.9 shows high mass activity (1237 A mgPt-1 at 1.8 V) with a total Pt loading of 8.6×10-4 mg cm−2 and outstanding durability over 850 h multistep operation at industrial current densities from 1 to 2 A cm⁻² and 60°C.
