{"title":"催化剂层间的小颗粒间距形成了一个膨胀的三相界面,提高了co2到c2 +转化的电流密度","authors":"Asato Inoue, Sora Nakasone, Ryotaro Yoshida, Shoko Nakahata, Takashi Harada, Shuji Nakanishi, Kazuhide Kamiya","doi":"10.1002/smll.202500693","DOIUrl":null,"url":null,"abstract":"<p>Achieving both high current density and high selectivity for high-value products is crucial for the widespread implementation of CO<sub>2</sub> electrolysis. Toward high-current-density electrolysis, it is crucial to design a triple-phase interface, where the catalyst, electrolyte, and gaseous substrate intersect, serving as the active reaction site for CO<sub>2</sub> electrolysis. In this study, aims to establish design principles for the triple-phase interface composed of copper nanoparticles (CuNPs) to achieve ultra-high-current-density electrolysis of gaseous CO<sub>2</sub> into multicarbon (C<sub>2+</sub>) products. The C<sub>2+</sub> formation activity of electrodes carrying various CuNPs is systematically evaluated under high-current-density (>1 A cm<sup>−2</sup>) electrolysis conditions. By analyzing the correlations between the electrochemical performances and the physicochemical properties of the catalysts and electrodes, it is identified that the average size of interparticle spacing in the catalyst layer is correlated with the maximum partial current density for C<sub>2+</sub> production (<i>j</i><sub>C2+</sub>). Smaller interparticle spacings are found to enhance <i>j</i><sub>C2+</sub> by suppressing the excessive electrolyte penetration into the catalyst layer and forming an expansive triple-phase interface. Based on these insights, the optimized electrode, with an average interparticle spacing of 59.4 nm, exhibited a record <i>j</i><sub>C2+</sub> of 2.00 A cm<sup>−2</sup> with a faradaic efficiency of 80.1%.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 23","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-04-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://onlinelibrary.wiley.com/doi/epdf/10.1002/smll.202500693","citationCount":"0","resultStr":"{\"title\":\"Small Interparticle Spacing in Catalyst Layers Forms an Expansive Triple-Phase Interface for Boosting the Current Density of CO2-to-C2+ Conversion\",\"authors\":\"Asato Inoue, Sora Nakasone, Ryotaro Yoshida, Shoko Nakahata, Takashi Harada, Shuji Nakanishi, Kazuhide Kamiya\",\"doi\":\"10.1002/smll.202500693\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Achieving both high current density and high selectivity for high-value products is crucial for the widespread implementation of CO<sub>2</sub> electrolysis. Toward high-current-density electrolysis, it is crucial to design a triple-phase interface, where the catalyst, electrolyte, and gaseous substrate intersect, serving as the active reaction site for CO<sub>2</sub> electrolysis. In this study, aims to establish design principles for the triple-phase interface composed of copper nanoparticles (CuNPs) to achieve ultra-high-current-density electrolysis of gaseous CO<sub>2</sub> into multicarbon (C<sub>2+</sub>) products. The C<sub>2+</sub> formation activity of electrodes carrying various CuNPs is systematically evaluated under high-current-density (>1 A cm<sup>−2</sup>) electrolysis conditions. By analyzing the correlations between the electrochemical performances and the physicochemical properties of the catalysts and electrodes, it is identified that the average size of interparticle spacing in the catalyst layer is correlated with the maximum partial current density for C<sub>2+</sub> production (<i>j</i><sub>C2+</sub>). Smaller interparticle spacings are found to enhance <i>j</i><sub>C2+</sub> by suppressing the excessive electrolyte penetration into the catalyst layer and forming an expansive triple-phase interface. Based on these insights, the optimized electrode, with an average interparticle spacing of 59.4 nm, exhibited a record <i>j</i><sub>C2+</sub> of 2.00 A cm<sup>−2</sup> with a faradaic efficiency of 80.1%.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 23\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2025-04-18\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://onlinelibrary.wiley.com/doi/epdf/10.1002/smll.202500693\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202500693\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202500693","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
实现高电流密度和高选择性的高价值产品是二氧化碳电解广泛实施的关键。对于高电流密度的电解,设计一个三相界面是至关重要的,在这里催化剂、电解质和气体底物相交,作为CO2电解的活性反应位点。本研究旨在建立铜纳米颗粒组成的三相界面的设计原理,以实现气态CO2的超高电流密度电解成多碳(C2+)产品。在高电流密度(>1 A cm−2)电解条件下,系统地评估了携带各种CuNPs的电极的C2+形成活性。通过分析催化剂和电极的电化学性能与理化性质之间的相关性,发现催化剂层颗粒间距的平均大小与生成C2+的最大分电流密度(jC2+)相关。较小的颗粒间距可以抑制过量的电解质渗透到催化剂层中,形成膨胀的三相界面,从而增强jC2+。基于这些发现,优化后的电极平均粒子间距为59.4 nm, jC2+为2.00 a cm−2,法拉第效率为80.1%。
Small Interparticle Spacing in Catalyst Layers Forms an Expansive Triple-Phase Interface for Boosting the Current Density of CO2-to-C2+ Conversion

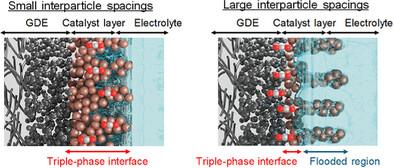

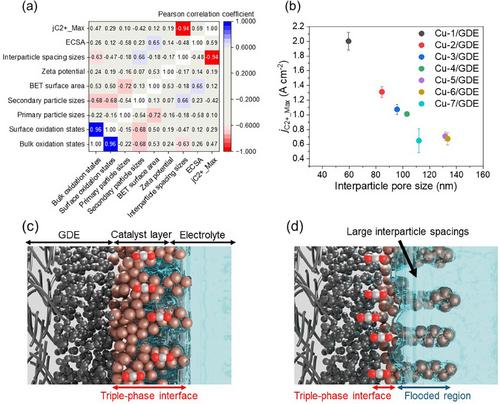

Achieving both high current density and high selectivity for high-value products is crucial for the widespread implementation of CO2 electrolysis. Toward high-current-density electrolysis, it is crucial to design a triple-phase interface, where the catalyst, electrolyte, and gaseous substrate intersect, serving as the active reaction site for CO2 electrolysis. In this study, aims to establish design principles for the triple-phase interface composed of copper nanoparticles (CuNPs) to achieve ultra-high-current-density electrolysis of gaseous CO2 into multicarbon (C2+) products. The C2+ formation activity of electrodes carrying various CuNPs is systematically evaluated under high-current-density (>1 A cm−2) electrolysis conditions. By analyzing the correlations between the electrochemical performances and the physicochemical properties of the catalysts and electrodes, it is identified that the average size of interparticle spacing in the catalyst layer is correlated with the maximum partial current density for C2+ production (jC2+). Smaller interparticle spacings are found to enhance jC2+ by suppressing the excessive electrolyte penetration into the catalyst layer and forming an expansive triple-phase interface. Based on these insights, the optimized electrode, with an average interparticle spacing of 59.4 nm, exhibited a record jC2+ of 2.00 A cm−2 with a faradaic efficiency of 80.1%.
