{"title":"食品中膦残留量测定方法的建立。","authors":"Shu-Wei Lin, Yu-Ting Liu, Ya-Chun Chou, Yu-Ching Hung, Shu-Han Chang, Ya-Min Kao, Su-Hsiang Tseng, Der-Yuan Wang","doi":"10.38212/2224-6614.3521","DOIUrl":null,"url":null,"abstract":"<p><p>Phosphine (PH<sub>3</sub>) is a fumigant used for pest control of stored products and foods. In Taiwan, PH<sub>3</sub> has the maximum residue level (MRL) in 14 foods, including dried fruits, vegetables, spices, nuts, crops, roots, and tuber vegetables. In this study, gas chromatography/mass spectrometry coupled with a headspace sampler (HS-GC/MS) was used to determine the PH<sub>3</sub> content in foods. The stability of the PH<sub>3</sub> standard was evaluated either directly using the gas standard or indirectly using zinc phosphide (Zn<sub>3</sub>P<sub>2</sub>) with an acid. The optimal conditions for the headspace agitator were determined to be an incubation temperature of 65 °C, rotation speed of 750 rpm, and shaking time of 20 min. The PH<sub>3</sub> residue in the sample was sufficiently released when 15 mL of 5% sulfuric acid was added. The PH<sub>3</sub> gas standard was applicable for quantification because the correlation coefficients of the standard and matrix-matched calibration curves were greater than 0.99, and the coefficient of variation of the repeatability test was less than 20%. The signal-to-noise ratio was greater than 3 when PH<sub>3</sub> was fortified into the testing matrix at 5 ng/g; therefore, the limit of quantification of PH<sub>3</sub> was determined to be 0.005 ppm. Because of the significant matrix effects and difficulty in obtaining representative matrices, the developed method referred to the EU Reference Laboratory-single residue method to estimate the PH<sub>3</sub> content in the sample using a standard curve and the PH<sub>3</sub> content was accurately quantified using the standard addition method. The proposed method was used to analyze 44 real samples obtained from markets and food factories, including various food commodities. Among these samples, three showed detectable PH<sub>3</sub> residues, with concentrations ranging from 0.006 to 0.066 ppm, which complies with the MRLs in Taiwan. This study successfully utilized HS-GC/MS with a gaseous PH<sub>3</sub> reference standard to develop a facile sample preparation method for detecting PH<sub>3</sub> in foods.</p>","PeriodicalId":358,"journal":{"name":"Journal of Food and Drug Analysis","volume":"33 1","pages":"13-20"},"PeriodicalIF":2.6000,"publicationDate":"2025-03-31","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Method development for the determination of phosphine residues in foods.\",\"authors\":\"Shu-Wei Lin, Yu-Ting Liu, Ya-Chun Chou, Yu-Ching Hung, Shu-Han Chang, Ya-Min Kao, Su-Hsiang Tseng, Der-Yuan Wang\",\"doi\":\"10.38212/2224-6614.3521\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Phosphine (PH<sub>3</sub>) is a fumigant used for pest control of stored products and foods. In Taiwan, PH<sub>3</sub> has the maximum residue level (MRL) in 14 foods, including dried fruits, vegetables, spices, nuts, crops, roots, and tuber vegetables. In this study, gas chromatography/mass spectrometry coupled with a headspace sampler (HS-GC/MS) was used to determine the PH<sub>3</sub> content in foods. The stability of the PH<sub>3</sub> standard was evaluated either directly using the gas standard or indirectly using zinc phosphide (Zn<sub>3</sub>P<sub>2</sub>) with an acid. The optimal conditions for the headspace agitator were determined to be an incubation temperature of 65 °C, rotation speed of 750 rpm, and shaking time of 20 min. The PH<sub>3</sub> residue in the sample was sufficiently released when 15 mL of 5% sulfuric acid was added. The PH<sub>3</sub> gas standard was applicable for quantification because the correlation coefficients of the standard and matrix-matched calibration curves were greater than 0.99, and the coefficient of variation of the repeatability test was less than 20%. The signal-to-noise ratio was greater than 3 when PH<sub>3</sub> was fortified into the testing matrix at 5 ng/g; therefore, the limit of quantification of PH<sub>3</sub> was determined to be 0.005 ppm. Because of the significant matrix effects and difficulty in obtaining representative matrices, the developed method referred to the EU Reference Laboratory-single residue method to estimate the PH<sub>3</sub> content in the sample using a standard curve and the PH<sub>3</sub> content was accurately quantified using the standard addition method. The proposed method was used to analyze 44 real samples obtained from markets and food factories, including various food commodities. Among these samples, three showed detectable PH<sub>3</sub> residues, with concentrations ranging from 0.006 to 0.066 ppm, which complies with the MRLs in Taiwan. This study successfully utilized HS-GC/MS with a gaseous PH<sub>3</sub> reference standard to develop a facile sample preparation method for detecting PH<sub>3</sub> in foods.</p>\",\"PeriodicalId\":358,\"journal\":{\"name\":\"Journal of Food and Drug Analysis\",\"volume\":\"33 1\",\"pages\":\"13-20\"},\"PeriodicalIF\":2.6000,\"publicationDate\":\"2025-03-31\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Food and Drug Analysis\",\"FirstCategoryId\":\"97\",\"ListUrlMain\":\"https://doi.org/10.38212/2224-6614.3521\",\"RegionNum\":3,\"RegionCategory\":\"农林科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"FOOD SCIENCE & TECHNOLOGY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Food and Drug Analysis","FirstCategoryId":"97","ListUrlMain":"https://doi.org/10.38212/2224-6614.3521","RegionNum":3,"RegionCategory":"农林科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"FOOD SCIENCE & TECHNOLOGY","Score":null,"Total":0}
引用次数: 0
摘要
磷化氢(PH3)是一种熏蒸剂,用于储存产品和食品的害虫控制。在台湾,PH3在14种食品中有最大残留限量(MRL),包括干果、蔬菜、香料、坚果、作物、根茎类和块茎类蔬菜。本研究采用气相色谱/质谱联用顶空进样器(HS-GC/MS)测定食品中PH3的含量。采用气体法直接评价PH3标准品的稳定性,也采用磷酸锌(Zn3P2)法间接评价PH3标准品的稳定性。顶空搅拌器的最佳条件为孵化温度65℃,转速750 rpm,振荡时间20 min。加入15 mL 5%硫酸充分释放样品中的PH3残留物。PH3气体标准品与基质匹配校准曲线的相关系数均大于0.99,重复性试验的变异系数小于20%,适用于定量分析。检测基质中PH3浓度为5 ng/g时,信噪比大于3;因此,确定PH3的定量限为0.005 ppm。由于基质效应显著且难以获得代表性基质,本方法参照欧盟参考实验室-单残留法,采用标准曲线估算样品中PH3含量,采用标准加成法准确定量。该方法用于分析从市场和食品厂获得的44个真实样本,包括各种食品商品。其中3份样品检测到PH3残留,浓度范围为0.006至0.066 ppm,符合台湾的MRLs标准。本研究成功地利用气态PH3参比标准的HS-GC/MS建立了一种简便的食品中PH3检测的制样方法。
Method development for the determination of phosphine residues in foods.

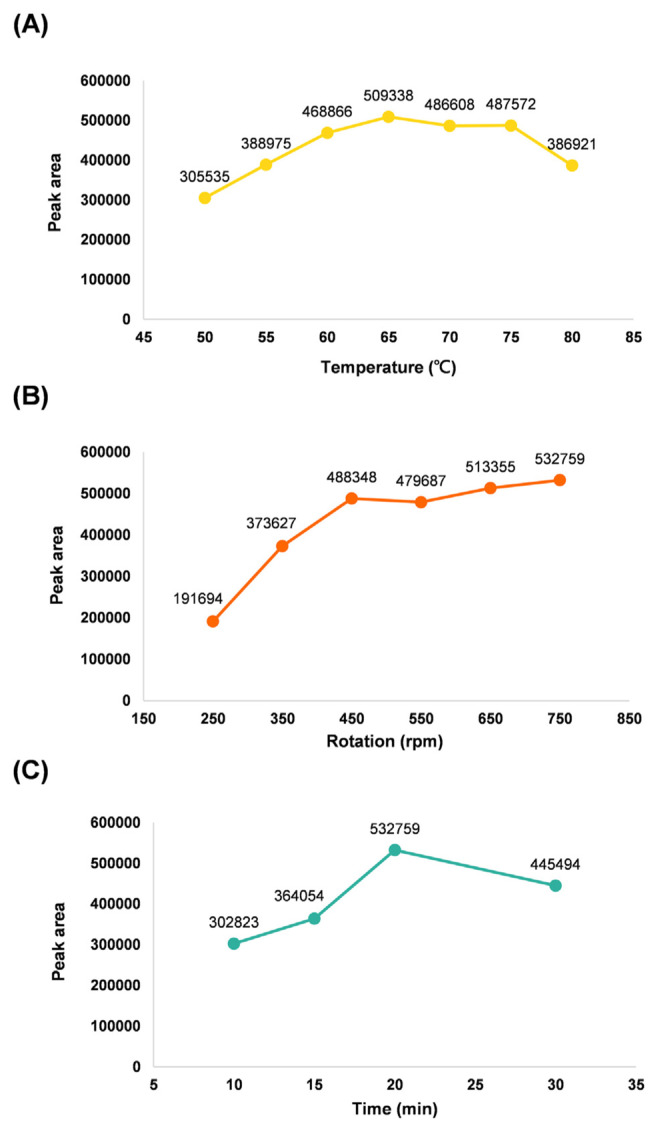

Phosphine (PH3) is a fumigant used for pest control of stored products and foods. In Taiwan, PH3 has the maximum residue level (MRL) in 14 foods, including dried fruits, vegetables, spices, nuts, crops, roots, and tuber vegetables. In this study, gas chromatography/mass spectrometry coupled with a headspace sampler (HS-GC/MS) was used to determine the PH3 content in foods. The stability of the PH3 standard was evaluated either directly using the gas standard or indirectly using zinc phosphide (Zn3P2) with an acid. The optimal conditions for the headspace agitator were determined to be an incubation temperature of 65 °C, rotation speed of 750 rpm, and shaking time of 20 min. The PH3 residue in the sample was sufficiently released when 15 mL of 5% sulfuric acid was added. The PH3 gas standard was applicable for quantification because the correlation coefficients of the standard and matrix-matched calibration curves were greater than 0.99, and the coefficient of variation of the repeatability test was less than 20%. The signal-to-noise ratio was greater than 3 when PH3 was fortified into the testing matrix at 5 ng/g; therefore, the limit of quantification of PH3 was determined to be 0.005 ppm. Because of the significant matrix effects and difficulty in obtaining representative matrices, the developed method referred to the EU Reference Laboratory-single residue method to estimate the PH3 content in the sample using a standard curve and the PH3 content was accurately quantified using the standard addition method. The proposed method was used to analyze 44 real samples obtained from markets and food factories, including various food commodities. Among these samples, three showed detectable PH3 residues, with concentrations ranging from 0.006 to 0.066 ppm, which complies with the MRLs in Taiwan. This study successfully utilized HS-GC/MS with a gaseous PH3 reference standard to develop a facile sample preparation method for detecting PH3 in foods.
