缺陷碳化木膜作为高性能锌离子电池的独立三维阳极主体

IF 3.3 3区 化学 Q2 CHEMISTRY, INORGANIC & NUCLEAR
Jinyu Ma, Fang Wang, Zhengguo Zhang and Shixiong Min
{"title":"缺陷碳化木膜作为高性能锌离子电池的独立三维阳极主体","authors":"Jinyu Ma, Fang Wang, Zhengguo Zhang and Shixiong Min","doi":"10.1039/D5DT00073D","DOIUrl":null,"url":null,"abstract":"<p >Three-dimensional (3D) porous carbons as the host matrix of Zn anodes have been proven to be effective in suppressing Zn dendrite formation during the cycling of aqueous Zn-ion batteries (ZIBs), but the complex fabrication process and the lack of sufficient active sites for Zn nucleation still limit their practical applications. Herein, we developed a free-standing 3D carbon-based Zn anode (Zn/HDCW) by controllably electrochemically depositing Zn within a highly defective, hierarchically porous carbonized wood (HDCW) membrane obtained <em>via</em> the CO<small><sub>2</sub></small> thermal etching of carbonized wood (CW). The HDCW features not only numerous open aligned microchannels and excellent wettability for fast electrolyte transport but also abundant carbon defects for effectively binding with Zn<small><sup>2+</sup></small>, enabling uniform plating and stripping of Zn and thus greatly suppressing the formation of Zn dendrites. As a result, the Zn/HDCW-based symmetric cell exhibits long-term cycling stability nearing 2700 h at 1 mA cm<small><sup>−2</sup></small> with low voltage hysteresis. Furthermore, the Zn/HDCW anode offers the corresponding aqueous Zn/HDCW-MnO<small><sub>2</sub></small>/HDCW full cell with remarkable rate capability and cycling stability, delivering a stable capacity of 170.8 mAh g<small><sup>−1</sup></small> at 1 A g<small><sup>−1</sup></small> after 600 cycles with a unit coulombic efficiency and an excellent capacity retention of 100%. This work provides a new insight into the development of 3D porous carbon-based Zn anodes for high-performance ZIBs.</p>","PeriodicalId":71,"journal":{"name":"Dalton Transactions","volume":" 18","pages":" 7475-7485"},"PeriodicalIF":3.3000,"publicationDate":"2025-04-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A defective carbonized wood membrane as a free-standing three-dimensional anode host for high-performance Zn-ion batteries†\",\"authors\":\"Jinyu Ma, Fang Wang, Zhengguo Zhang and Shixiong Min\",\"doi\":\"10.1039/D5DT00073D\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Three-dimensional (3D) porous carbons as the host matrix of Zn anodes have been proven to be effective in suppressing Zn dendrite formation during the cycling of aqueous Zn-ion batteries (ZIBs), but the complex fabrication process and the lack of sufficient active sites for Zn nucleation still limit their practical applications. Herein, we developed a free-standing 3D carbon-based Zn anode (Zn/HDCW) by controllably electrochemically depositing Zn within a highly defective, hierarchically porous carbonized wood (HDCW) membrane obtained <em>via</em> the CO<small><sub>2</sub></small> thermal etching of carbonized wood (CW). The HDCW features not only numerous open aligned microchannels and excellent wettability for fast electrolyte transport but also abundant carbon defects for effectively binding with Zn<small><sup>2+</sup></small>, enabling uniform plating and stripping of Zn and thus greatly suppressing the formation of Zn dendrites. As a result, the Zn/HDCW-based symmetric cell exhibits long-term cycling stability nearing 2700 h at 1 mA cm<small><sup>−2</sup></small> with low voltage hysteresis. Furthermore, the Zn/HDCW anode offers the corresponding aqueous Zn/HDCW-MnO<small><sub>2</sub></small>/HDCW full cell with remarkable rate capability and cycling stability, delivering a stable capacity of 170.8 mAh g<small><sup>−1</sup></small> at 1 A g<small><sup>−1</sup></small> after 600 cycles with a unit coulombic efficiency and an excellent capacity retention of 100%. This work provides a new insight into the development of 3D porous carbon-based Zn anodes for high-performance ZIBs.</p>\",\"PeriodicalId\":71,\"journal\":{\"name\":\"Dalton Transactions\",\"volume\":\" 18\",\"pages\":\" 7475-7485\"},\"PeriodicalIF\":3.3000,\"publicationDate\":\"2025-04-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Dalton Transactions\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/dt/d5dt00073d\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, INORGANIC & NUCLEAR\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Dalton Transactions","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/dt/d5dt00073d","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}
引用次数: 0

摘要

三维多孔碳作为锌阳极的主基质已被证明可以有效抑制水相锌离子电池循环过程中锌枝晶的形成,但复杂的制备工艺和缺乏足够的锌成核活性位点仍然限制了其实际应用。在此,我们开发了一种独立的3D碳基锌阳极(Zn/HDCW),通过对碳化木材(CW)进行CO2热蚀刻获得的高缺陷,分层多孔碳化木碳(HDCW)膜中可控地电化学沉积Zn。HDCW不仅具有大量开放排列的微通道和优异的润湿性,可以快速传输电解质,而且还具有丰富的碳缺陷,可以与Zn 2 +有效结合,实现Zn的均匀电镀和剥离,从而大大抑制Zn枝晶的形成。因此,基于Zn/ hdcw的对称电池在1 mA cm-2下具有接近2700 h的长周期稳定性和低电压滞后。此外,锌/HDCW阳极提供了相应的水溶液锌/HDCW- mno2 /HDCW全电池,具有卓越的倍率能力和循环稳定性,在1 A g-1下循环600次后,具有170.8 mAh g-1的稳定容量,单位库仑效率和100%的优异容量保持率。这项工作为开发用于高性能ZIBs的三维多孔碳基锌阳极提供了新的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

A defective carbonized wood membrane as a free-standing three-dimensional anode host for high-performance Zn-ion batteries†

A defective carbonized wood membrane as a free-standing three-dimensional anode host for high-performance Zn-ion batteries†

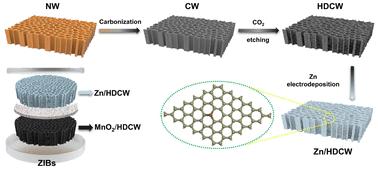

Three-dimensional (3D) porous carbons as the host matrix of Zn anodes have been proven to be effective in suppressing Zn dendrite formation during the cycling of aqueous Zn-ion batteries (ZIBs), but the complex fabrication process and the lack of sufficient active sites for Zn nucleation still limit their practical applications. Herein, we developed a free-standing 3D carbon-based Zn anode (Zn/HDCW) by controllably electrochemically depositing Zn within a highly defective, hierarchically porous carbonized wood (HDCW) membrane obtained via the CO2 thermal etching of carbonized wood (CW). The HDCW features not only numerous open aligned microchannels and excellent wettability for fast electrolyte transport but also abundant carbon defects for effectively binding with Zn2+, enabling uniform plating and stripping of Zn and thus greatly suppressing the formation of Zn dendrites. As a result, the Zn/HDCW-based symmetric cell exhibits long-term cycling stability nearing 2700 h at 1 mA cm−2 with low voltage hysteresis. Furthermore, the Zn/HDCW anode offers the corresponding aqueous Zn/HDCW-MnO2/HDCW full cell with remarkable rate capability and cycling stability, delivering a stable capacity of 170.8 mAh g−1 at 1 A g−1 after 600 cycles with a unit coulombic efficiency and an excellent capacity retention of 100%. This work provides a new insight into the development of 3D porous carbon-based Zn anodes for high-performance ZIBs.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Dalton Transactions
Dalton Transactions 化学-无机化学与核化学
CiteScore
6.60
自引率
7.50%
发文量
1832
审稿时长
1.5 months
期刊介绍: Dalton Transactions is a journal for all areas of inorganic chemistry, which encompasses the organometallic, bioinorganic and materials chemistry of the elements, with applications including synthesis, catalysis, energy conversion/storage, electrical devices and medicine. Dalton Transactions welcomes high-quality, original submissions in all of these areas and more, where the advancement of knowledge in inorganic chemistry is significant.
×
