Development and validation of a nomogram for predicting bone marrow involvement in lymphoma patients based on 18F-FDG PET radiomics and clinical factors

Objective

This study aimed to develop and validate a nomogram combining ¹⁸F-FDG PET radiomics and clinical factors to non-invasively predict bone marrow involvement (BMI) in patients with lymphoma.

Methods

A radiomics nomogram was developed using monocentric data, randomly divided into a training set (70%) and a test set (30%). Bone marrow biopsy (BMB) served as the gold standard for BMI diagnosis. Independent clinical risk factors were identified through univariate and multivariate logistic regression analyses to construct a clinical model. Radiomics features were extracted from PET and CT images and selected using least absolute shrinkage and selection operator (LASSO) regression, yielding a radiomics score (Rad_score) for each patient. Models based on clinical factors, CT Rad_score, and PET Rad_score were established and evaluated using eight machine learning algorithms to identify the optimal prediction model. A combined model was constructed and presented as a nomogram. Model performance was assessed using the area under the receiver operating characteristic curve (AUC), calibration curves, and decision curve analysis (DCA).

Results

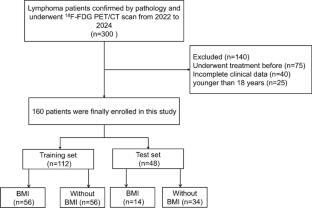

A total of 160 patients were included, of whom 70 had BMI based on BMB results. The training group comprised 112 patients (BMI: 56, without BMI: 56), while the test group included 48 patients (BMI: 14, without BMI: 34). Independent risk factors, including the number of extranodal involvements and B symptoms, were incorporated into the clinical model. In the clinical model, CT Rad_score, and PET Rad_score, the AUCs in the test set were 0.820 (95% CI: 0.705–0.935), 0.538 (95% CI: 0.351–0.723), and 0.836 (95% CI: 0.686–0.986). Due to the limited diagnostic performance of CT Rad_score, the nomogram was constructed using PET Rad_score and the clinical model. The radiomics nomogram achieved AUCs of 0.916 (95% CI: 0.865–0.967) in the training set and 0.863 (95% CI: 0.763–0.964) in the test set. Calibration curves and DCA confirmed the nomogram’s discrimination, calibration, and clinical utility in both sets.

Conclusion

By integrating PET Rad_score, the number of extranodal involvements, and B symptoms, this ¹⁸F-FDG PET radiomics-based nomogram offers a non-invasive method to predict bone marrow status in lymphoma patients, providing nuclear medicine physicians with valuable decision support for pre-treatment evaluation.
