工程氮/羰基MR-TADF发射器:窄频带蓝色发射中的螺旋锁和叔丁基协同作用

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2025-03-30 DOI:10.1002/smll.202502915
Hong-Yan Yan, Dong-Ying Zhou, Shi-Jie Ge, You-Jun Yu, Hai-Tian Yuan, Rui-Hong Liu, Yue-Jian Yang, Yu Wang, Liang-Sheng Liao, Zuo-Quan Jiang
{"title":"工程氮/羰基MR-TADF发射器:窄频带蓝色发射中的螺旋锁和叔丁基协同作用","authors":"Hong-Yan Yan,&nbsp;Dong-Ying Zhou,&nbsp;Shi-Jie Ge,&nbsp;You-Jun Yu,&nbsp;Hai-Tian Yuan,&nbsp;Rui-Hong Liu,&nbsp;Yue-Jian Yang,&nbsp;Yu Wang,&nbsp;Liang-Sheng Liao,&nbsp;Zuo-Quan Jiang","doi":"10.1002/smll.202502915","DOIUrl":null,"url":null,"abstract":"<p>Multi-resonance thermally activated delayed fluorescence (MR-TADF) emitters with rigid planar structures are promising for their exceptional color purity and outstanding device efficiency. However, as an important MR unit, rigidly interlocked nitrogen/carbonyl-based blue materials often face challenges like spectral broadening, red-shifting, and reduced efficiency compared to nitrogen/boron system. Herein, a peripheral modification strategy incorporating <i>tert</i>-butyl groups via a spiro-lock framework is used to synthesize four molecules: QAO-TF, TQAO-TF, TQAO-F, and TSOQ. The spiro-lock structure solidifies the molecular framework, narrows the emission bandwidth, and elevates the photoluminescence quantum yield to over 96%. Meanwhile, the peripheral <i>tert</i>-butyl groups introduce steric hindrance, isolating the luminescent core and suppressing intermolecular interactions in the solid state, thereby improving device efficiency while maintaining narrowband emission. Notably, TQAO-F shows an electroluminescence peak at 476 nm with a 25 nm full width at half maximum (FWHM) and an external quantum efficiency (EQE) of 31.7%. TSOQ, with its oxygen-induced charge effect, achieves narrowband pure blue emission with an FWHM of 20 nm, surpassing 30% EQE without sensitizers. This overall performance suggests its potential to rival the classic nitrogen/boron system.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 21","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-03-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Engineering Nitrogen/Carbonyl MR-TADF Emitters: Spiro-Lock and Tert-Butyl Synergy in Narrowband Blue Emission\",\"authors\":\"Hong-Yan Yan,&nbsp;Dong-Ying Zhou,&nbsp;Shi-Jie Ge,&nbsp;You-Jun Yu,&nbsp;Hai-Tian Yuan,&nbsp;Rui-Hong Liu,&nbsp;Yue-Jian Yang,&nbsp;Yu Wang,&nbsp;Liang-Sheng Liao,&nbsp;Zuo-Quan Jiang\",\"doi\":\"10.1002/smll.202502915\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Multi-resonance thermally activated delayed fluorescence (MR-TADF) emitters with rigid planar structures are promising for their exceptional color purity and outstanding device efficiency. However, as an important MR unit, rigidly interlocked nitrogen/carbonyl-based blue materials often face challenges like spectral broadening, red-shifting, and reduced efficiency compared to nitrogen/boron system. Herein, a peripheral modification strategy incorporating <i>tert</i>-butyl groups via a spiro-lock framework is used to synthesize four molecules: QAO-TF, TQAO-TF, TQAO-F, and TSOQ. The spiro-lock structure solidifies the molecular framework, narrows the emission bandwidth, and elevates the photoluminescence quantum yield to over 96%. Meanwhile, the peripheral <i>tert</i>-butyl groups introduce steric hindrance, isolating the luminescent core and suppressing intermolecular interactions in the solid state, thereby improving device efficiency while maintaining narrowband emission. Notably, TQAO-F shows an electroluminescence peak at 476 nm with a 25 nm full width at half maximum (FWHM) and an external quantum efficiency (EQE) of 31.7%. TSOQ, with its oxygen-induced charge effect, achieves narrowband pure blue emission with an FWHM of 20 nm, surpassing 30% EQE without sensitizers. This overall performance suggests its potential to rival the classic nitrogen/boron system.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 21\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2025-03-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202502915\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202502915","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

具有刚性平面结构的多共振热激活延迟荧光(MR-TADF)发射器因其优异的色纯度和器件效率而具有广阔的应用前景。然而,作为一种重要的MR单元,刚性互锁的氮/羰基蓝色材料与氮/硼体系相比,经常面临光谱展宽、红移和效率降低等挑战。本研究采用螺旋锁框架结合叔丁基的外周修饰策略合成了四种分子:QAO-TF、tao - tf、tao - f和TSOQ。螺旋锁结构固化了分子框架,缩小了发射带宽,将光致发光量子产率提高到96%以上。同时,外围叔丁基引入空间位阻,隔离发光核心,抑制固态分子间相互作用,从而在保持窄带发射的同时提高器件效率。值得注意的是,TQAO-F在476 nm处出现电致发光峰,半峰全宽为25 nm,外量子效率为31.7%。TSOQ利用氧诱导电荷效应实现窄带纯蓝色发射,FWHM为20 nm,在不增敏的情况下超过30% EQE。这种整体性能表明它有潜力与经典的氮/硼体系相媲美。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Engineering Nitrogen/Carbonyl MR-TADF Emitters: Spiro-Lock and Tert-Butyl Synergy in Narrowband Blue Emission

Engineering Nitrogen/Carbonyl MR-TADF Emitters: Spiro-Lock and Tert-Butyl Synergy in Narrowband Blue Emission

Engineering Nitrogen/Carbonyl MR-TADF Emitters: Spiro-Lock and Tert-Butyl Synergy in Narrowband Blue Emission

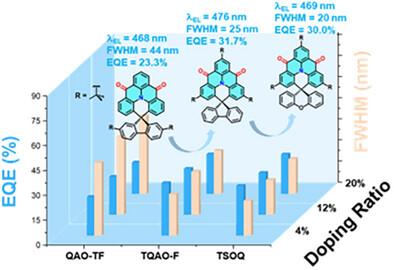

Multi-resonance thermally activated delayed fluorescence (MR-TADF) emitters with rigid planar structures are promising for their exceptional color purity and outstanding device efficiency. However, as an important MR unit, rigidly interlocked nitrogen/carbonyl-based blue materials often face challenges like spectral broadening, red-shifting, and reduced efficiency compared to nitrogen/boron system. Herein, a peripheral modification strategy incorporating tert-butyl groups via a spiro-lock framework is used to synthesize four molecules: QAO-TF, TQAO-TF, TQAO-F, and TSOQ. The spiro-lock structure solidifies the molecular framework, narrows the emission bandwidth, and elevates the photoluminescence quantum yield to over 96%. Meanwhile, the peripheral tert-butyl groups introduce steric hindrance, isolating the luminescent core and suppressing intermolecular interactions in the solid state, thereby improving device efficiency while maintaining narrowband emission. Notably, TQAO-F shows an electroluminescence peak at 476 nm with a 25 nm full width at half maximum (FWHM) and an external quantum efficiency (EQE) of 31.7%. TSOQ, with its oxygen-induced charge effect, achieves narrowband pure blue emission with an FWHM of 20 nm, surpassing 30% EQE without sensitizers. This overall performance suggests its potential to rival the classic nitrogen/boron system.
